Harman kardon hkts 1

Page 2

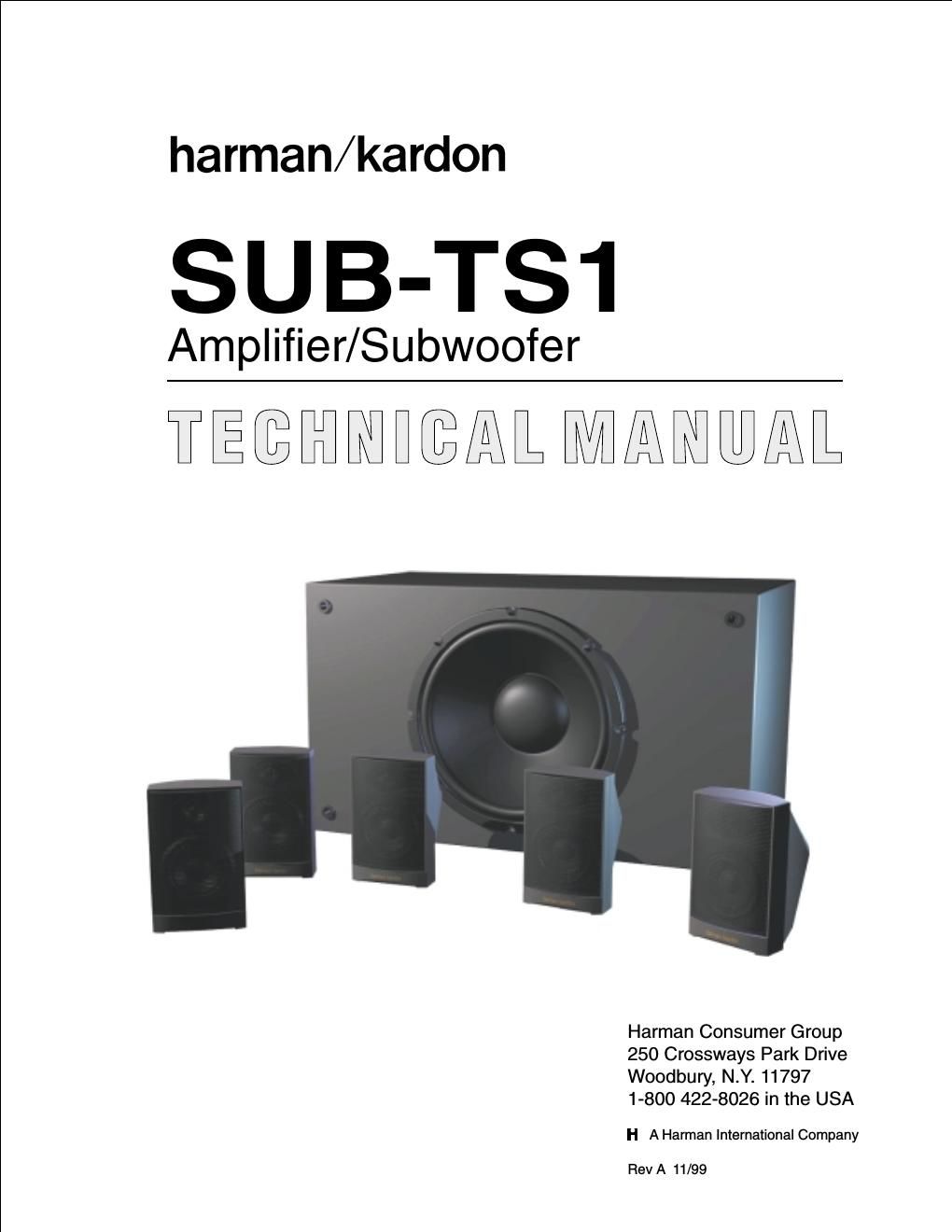

Amplitier/Subwoofer Harman Kardon

The SUB-T81 is part of the HKTS1 system

TABLE OF CONTENTS

COVER ........................................................................... 1 HKTS1 PACKING ......................................................... 10
GENERAL SPECIFICATIONS.. ....2 SUB TABLE OF CONTENTS ................................................. 2 SUB-TS1 PCB COMPONENT SIDE ........................... 12
HKTS1 SPECIFICATIONS ............................................. 3 SUB-T81 PCB SOLDER SIDE .................................... 13
CONTROLS AND THEIR FUNCTION ........................... 5 SUB HKTS1 SPEAKER LEVEL CONNECTIONS ................. 6 SUB-TS1 INTEGRATED CIRCUIT DIAGRAMS ......... 16
HKTS1 LINE LEVEL CONNECTIONS .......................... 7 SUB-T81 POWER AMP SCHEMATIC DIAGRAM ...... 17
SUB-T81 TEST SET UP AND PROCEDURE .............. 8 SUB SIMPLE TROUBLESHOOTING ..................................... 9

GENERAL SPECIFICATIONS

HKTS-1 System

Frequency Response

35Hz - 20kHz (-GdB)

SUB-T31

Amplifier . . 75 watts RMS

Bass ..... 8" woofer, bass-reflex enclosure

Dimensions (H x W x D)
105 x 18% x 10% inches
267 x 470 x 267mm

Weight . . . 29.9 lbs/13.6 kg

Refinements may be made on occasion to existing products without notice,
but will always meet or exceed original specifications unless otherwise stated.
