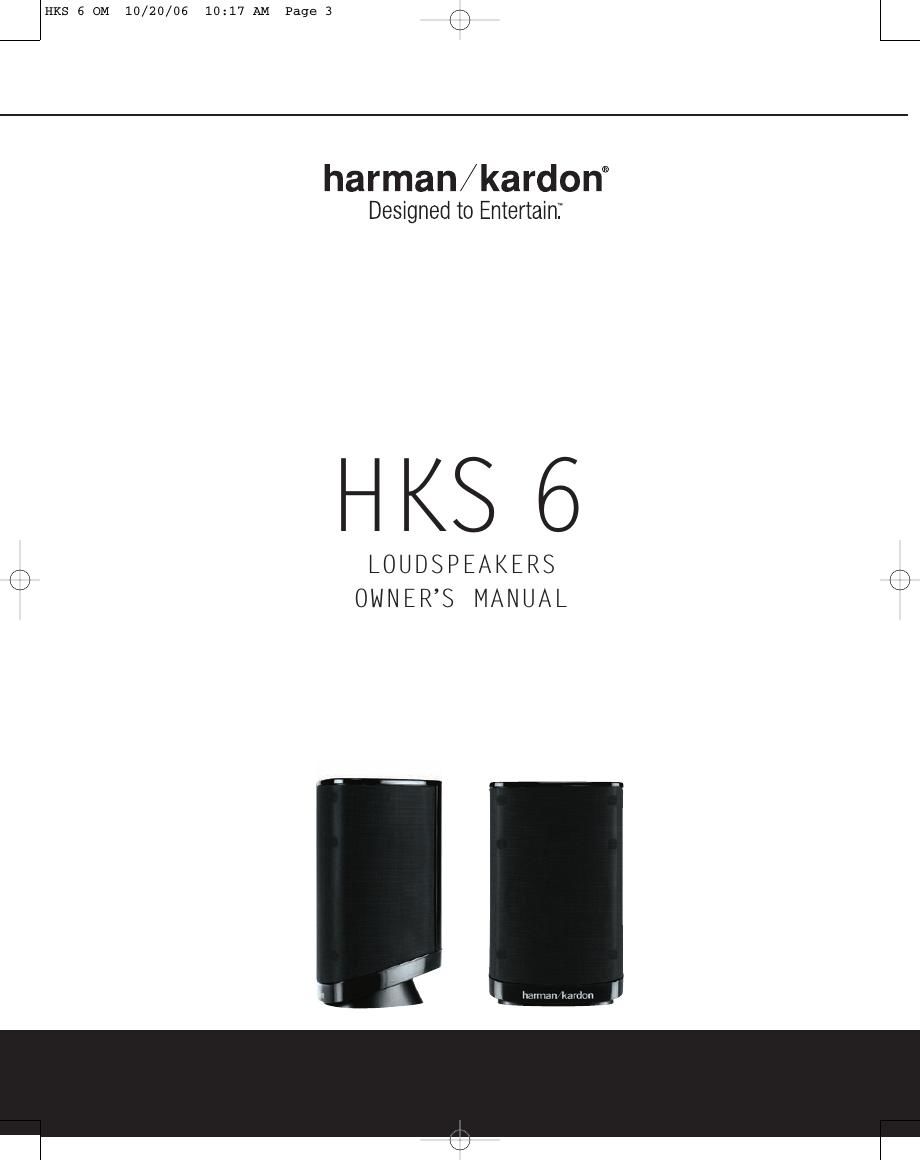

Harman kardon hks 6 owners manual
This is the 8 pages manual for harman kardon hks 6 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hks 6 owners manual (Ocr-read)
Page 1
2 INTRODUCTION INTRODUCTION 2 Introduction 3 Speaker Placement 3 Color Coding System 4 Mounting Options 5 Speaker Connections 5 Connection Guide 5 Configuring Your Receiver or Processor 6 Troubleshooting 7 Specifications Introduction Thank you for purchasing the Harman Kardon ® HKS 6 loudspeakers, with which you are about to begin many years of listening enjoy ment. The HKS 6 has been custom designed to provide high fidelity audio reproduction of your favorite music and movie selections.The HKS 6 loudspeakers are suitable for upgrad ing almost any 5.1 home theater system to 7.1 channels when used with a 7.1 channel receiver or processor and any necessary additional amplifiers. To obtain maximum enjoyment from your new speakers,we urge you to take a few minutes to read through this manual. This will ensure that connections to your receiver or amplifier are made properly. In addition, a few minutes spent understanding the setup options will enable you to take advantage of all the power and refinement the HKS 6 is able to deliver. If you have any questions about this product, its installation or operation,please contact your dealer, the best local source of information. Features The HKS 6 is a pair of 2 way satellite speakers for use in a home theater system. The HKS 6 speakers are identical to the satellites in the Harman Kardon HKTS 15 system, and are designed to be used with the HKTS 15 in a complete 7.1 channel home theater. Color coded speaker cables are included to facilitate installing the speakers in the surround back left and right positions. Harman Kardon invented the high fidelity receiver more than 50 years ago. The HKS6 is a perfect complement to a Harman Kardon receiver or any home theater system. Matched Pair of Loudspeakers for Use in Multichannel Applications Speakers Are Magnetically Shielded for Flexible Placement Near Video Monitors Three Inch Driver One Half Inch Dome Tweeter Metal Wire Mesh Grille Elegant Cabinet With Black Lacquer Finish Includes Shelf Stands Includes Wall Mount Brackets and Color Coded Speaker Cables May Be Used With Optional Floor Stands Included - Two satellites for left/right front, surround or surround back channels, shown with included shelf stands - Two leatherette coasters Two 40' speaker cables for connection from receiver or amplifier to speakers Two wall mount brackets Please register your product on our Web site at www.harmankardon.com. Note: Youll need the serial number of your new home theater speaker system. At the same time, you can choose to be notified about our new products and/or special promotions. HKS 6 OM 10/20/06 10:17 AM Page 4
Page 2
Color Coding System The HKS 6 and the HKTS 15 use the channel color coding system established by the Consumer Electronics Association to make setting up your home theater speaker system as easy as possible. Your system includes a set of colored stickers that may be placed near the speaker terminals of each of the satellite speakers. In addition, the included speaker wires have colored bands at each end to assist you in connecting them correctly. Use the brown sticker and cable for the surround back left speaker, and the tan sticker and cable for the surround back right speaker.Although the wires included with your HKS 6 speakers are color coded for the surround back left and right channels, they are interchangeable with the wires supplied with the HKTS 15 system. It doesnt matter which satellite speaker is used for any of the front or rear positions. (The center speaker and powered subwoofer of the HKTS 15 are already color coded.) Before you begin to connect cables, it is important to set up your speakers in their correct locations in the room. Optimally,the speakers should be placed in a circle with the listening position at its center. The distance from the listening position to the video display forms the radius of the circle. The speakers should be angled so that they directly face the listening position. The front left and right speakers are placed along the circle,about 30 degrees from the center speaker or video display and angled toward the listener. When used as a stereo pair, the speakers should be placed the same distance from each other as they are from the listener.It is best to place the front left/right and center speakers as close to the same height as possible, preferably about the same height as the listeners ears.In any event, the center speaker should be no more than two feet above or below the left/right speakers. When the HKS 6 speakers are used to upgrade an HKTS 15 system to a 7.1 channel system,the side surround speakers should be placed even with and facing the listening position,90 degrees from the center speaker. The HKS 6 speakers are then placed in the left and right surround back speaker positions, 150 degrees from the center speaker. When setting up your system,refer to the diagram above instead of the diagram in the HKTS 15 owners guide.The subwoofers location is less critical, since low frequency sounds are omnidirectional. Placing the subwoofer close to a wall or in a corner will reinforce the low fre quencies, and may create a boomy sound. You may wish to experiment over time by placing the subwoofer where the listener normally sits and then walking around the room until the low frequencies sound best. Place the subwoofer in that spot. SPEAKER PLACEMENT 3 SPEAKER PLACEMENT HKS 6 OM 10/20/06 10:17 AM Page 5Center SpeakerVideo ScreenFront Right Speaker Front Left Speaker Side Surround Left Speaker Back Surround Left SpeakerSide Surround Right Speaker Back Surround Right Speaker90° 150°90° 150° 30° 30°
