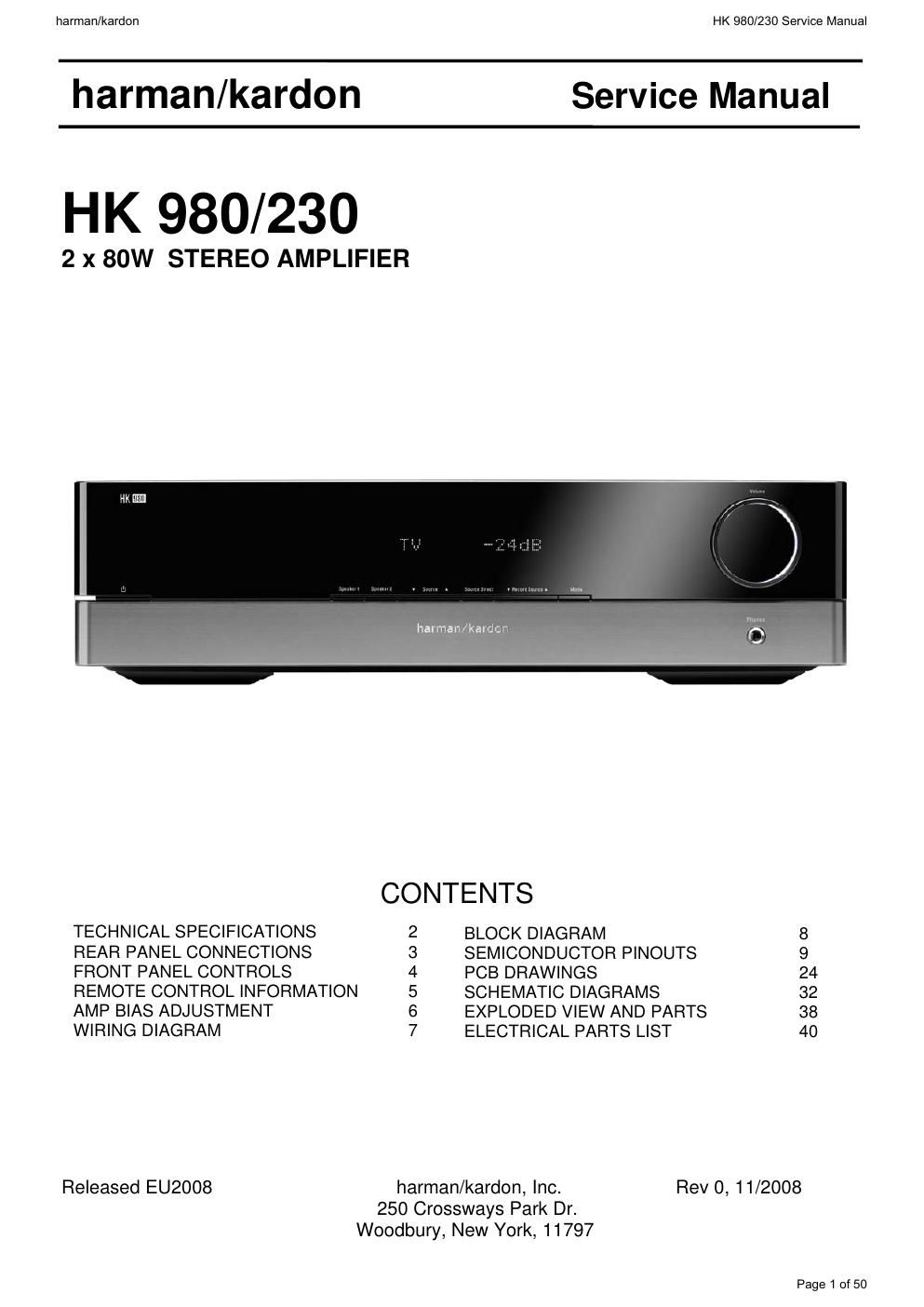

Harman kardon hk 980 230 service manual
This is the 50 pages manual for harman kardon hk 980 230 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hk 980 230 service manual (Ocr-read)
Page 1
Specifications NOMINAL Harman/kardon 250 Crossways Park Drive,Woodbury, New York 11797 www.harmankardon.com Harman Consumer Group International: 2, Route de Tours, 72500 Château-du-Loir, France © 2005 Harman Kardon, Incorporated Part 5100-971500-000 Continuous Average Power Per Channel (FTC) 20 Hz – 20 kHz, both channels driven 8 Ohms: 4 Ohms: 80 Watts@<0.09%THD 120 Watts@<0.3%THD Dynamic Power (IHF, 1KHz Tone Burst) 8 Ohms: 4 Ohms: 2 Ohms: 1 Ohms: 115 Watts 200 Watts 295 Watts 380 Watts High instantaneous current capability (HCC) ±80 Amps Power Bandwidth @ Half-Rated output, 8 ¦¸ <10 Hz - 150 kHz Frequency response @ 1W (+0/-3dB) 5 Hz - 150 kHz Damping factor (20Hz-20k Hz) >125 Signal-to-noise Ratio (Reference rated power output, A-WTD) Tuner/CD Phono (MM): 95 dB 75 dB Input sensitivity/Impedance Tuner/CD Phono (MM): 270mV/43k Ohms 4.0mV/47k Ohms Overload: Tuner/CD Phono (MM): 6V 90 mV Tone control range, Bass @ 100 Hz/Treble @ 10 kHz ±10 dB/±10 dB Power supply: AC 230V, 50 Hz Power consumption: 410 W Dimensions (Width x Height x Depth): 440 x 117 x 358 mm Weight: 10.35 kg harman/kardon HK 980/230 Service Manual Page 2 of 50
Page 2
Connections Cassette Tape Deck CD Recorder Record Player RL RLRL RL RL RL RL RL RL RL GND CD IN CDR OUT AUX TV TUNER OUT CDR IN AUX TV T UNER OUT T APE IN IN TAPE OUT LEFT SPEAKER LEFT SPEAKER FUSE T4AL /250V LEFTRIGHT LEFTRIGHT PRE OUT PHONO PRE OUT PHONO CD RE MOTE AC INPUT AC 230V~50Hz 410W IN OUT OUT IN 2 2 1 1 2 2 1 1 CAUTION: SPEAKER IMPEDANCE 4 MIN:SYSTEM 1 OR 2 8 MIN:SYSTEM 1 & 2 ATTENTION: IMPE DANCE DES HAUT-PARLEURS 4 MIN:SYSTEM 1 OU 2 8 MIN:SYSTEM 1 ET 2 S H O CK H AZ A RD : DO NOT OP EN AVIS:RISOUE D E CHOC ELECTRIOUE-NE PAS OUVRIR RIGHT SPEAKE R RIGHT SPEAKER INTEREK SE RIAL NO. NORTHRIDGE CA LIFO RNIA , USA MADE IN P.R .C.MODEL NO.:HK 980 Video Player 2 I nput Out put Lef t ri ght Left ri ght Out put Left ri gh t LR AUDI O OUT RL LR Out put Lef t ri ght LR AUDI O OUT RL LR Out put Lef t ri ght LR LR LR Input Output Left right Lef t ri ght LR LR Right channel Speaker System 2 External Power Amp Video Player 1 Tune rCo mpact D isc Pla yerLe ft chan nel Speaker System 2 Speaker S ystem 1 Right channel Speaker S ystem 1 Left channel To w a l l outlet Connecting Other Components 1. Make sure your amplifier and other components are turned off. 2. Connect each component's Output/Play jacks to the corresponding Input jacks on the back of your amplifier and, if available, the components Input/Record jacks to the Output jacks of the HK 980. Use the white, black or gray plugs to connect Left channel jacks; use the red plugs for Right channel jacks. 3. A record player with MM cartridge must be connected to the Phono Input jacks and a separate ground wire to the ground terminal screw above. Wired Remote Control To control your amplifier with an external infrared remote sensor, connect the wire from the remote sensor to the REMOTE IN jack on the back panel. Or, if another stereo component has a built-in infrared remote sensor and a Remote Output jack, it may be possible to connect this jack to the REMOTE IN jack of your amplifier. All Harman Kardon products with »Remote In« and »Remote Out« jacks are compatible with one another, except for the Citation 22, 24 and 25. Other manufacturers' remote sensors and components may not be compatible, but it will not hu rt to experiment. A second wire may be used to connect your amplifier's REMOTE OUT jack to the Remote Input of another stereo component. Continue this process to include additional components (if compatible). Connecting Speakers 1. For best performance, use high quality speaker cables. However, ordinary copper wire can be used if the gauge meets the following requirements: Wire Min. Length Diameter Up to 2.5 meter 1 mm Up to 4 meter 1.25 mm Up to 6 meter 1.6 mm Above 6 meter 2-2.5 mm 2. Avoid rolling excess wire with or near signal interconnects. External Power Amplifiers For applications where higher power is desired, connect the Pre-Out Jacks to the Main In Jacks of an external power amplifier. The level of the output can be adjusted between -3 and +3 dB with an internal button. To adjust the level, gently insert a small screwdriver into the button and turn clockwise to increase or counter-clockwise to decrease the output level. IMPORTANT: When connecting two pairs of speakers, determine the impedance of each pair by looking on the back of the speakers, in your owner's manual, or by contacting your dealer or manufacturer. You can listen to two pairs of speakers at the same time ONLY if the impedance of EACH speaker is NOT LESS THAN 8 Ohms. WARNING: Do not play sets of speakers simultaneously except as recommended above. Amplifier may overheat. AC Pow er Plug the cord into a 230 VAC wall socket. Power indicator will light up to indicate power ON. To completely disconnect the power input, the main plug must be disconnected from the mains. 2 harman/kardon HK 980/230 Service Manual Page 3 of 50
