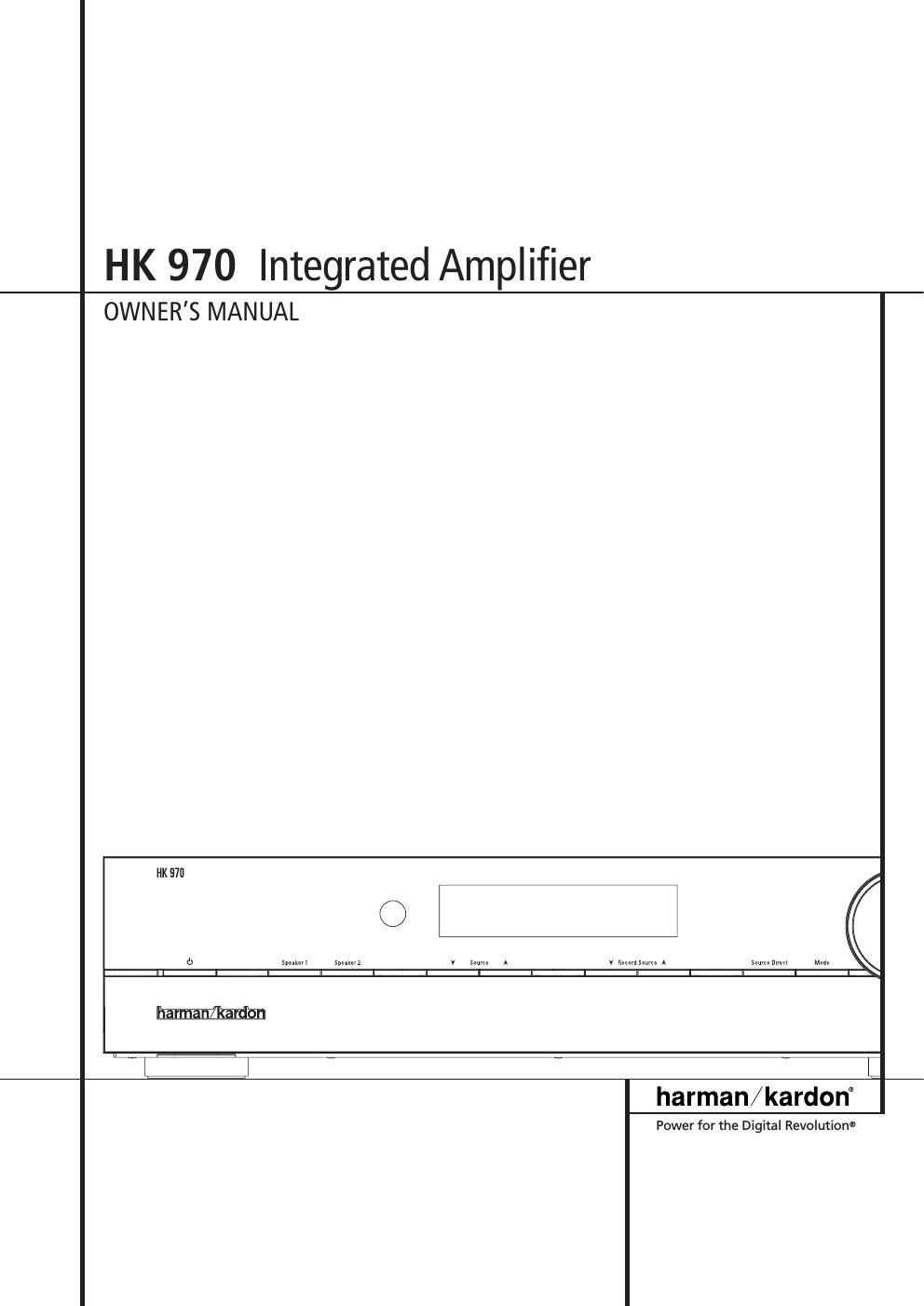

Harman kardon hk 970 owners manual
This is the 8 pages manual for harman kardon hk 970 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hk 970 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3Introduction 4Connections 5Controls and Functions 6Remote Control 7Operating Instructions 7Troubleshooting 8Specifications Table of Contents We, Harman Consumer Group International 2, route de Tours F-72500 Château-du-Loir France declare in own responsibility, that the product described in this owners manual is in compliance with technical standards: EN 55013:2001 + A1:2003 EN 55020:2002 + A1:2003 EN 61000-3-2:2000 EN 61000-3-3:1995 + A1:2001 EN 60065:2002 Jurjen Amsterdam Harman Consumer Group International 01/05 DECLARATION OF CONFORMITY
Page 2
INTRODUCTION 3 Introduction Congratulations on your choice of the Harman Kardon HK 970 Integrated Amplifier. In order to obtain the best performance from this integrated amplifier, please be sure to read this owner's manual and use your integrated amplifier only in accordance with its instructions. The special features of this unit include: HCC (High Instantaneous Current Capability) The amplifier sections react rapidly to musical transients, providing the instantaneous current necessary to precisely drive and control nearly any loudspeaker system. Ultrawide Bandwidth The bandwidth of this unit is exceptionally wide and is independent of negative feedback. This improves transient accuracy and phase linearity. Low Negative Feedback This unit has been designed to have low distor- tion and wide bandwidth without high negative feedback. This further improves its dynamic accuracy. Discrete Component Circuitry In order to achieve the above goals, all discrete electronic circuitry has been employed. No available integrated circuits could provide this high level of performance. Sophisticated Electronic Protection Circuitry Harman Kardon's unique protection circuitry guards the amplifier from short circuit or damaged speakers and wires, without impairing sound quality by the use of current limiting or output relays. General instructions Always Use at 230V AC This unit is designed for operation with 230V AC. Use only domestic AC outlets. Connecting the unit to an outlet supplying a higher voltage may create a fire hazard. Handle the Power Cord Gently Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself. Pulling the cord may damage it. If you do not intend to use your unit for any considerable length of time, turn the unit off completely by taking the power cord out of the AC wall outlet. Do not place furniture or other heavy objects on the cord, and try to avoid dropping heavy objects on it. Also do not tie a knot in the power cord. Not only may the cord be damaged, it can also cause a short circuit with a consequent fire hazard. Place of installation Place the unit on a firm and level surface. Avoid installing your unit under the following conditions: Moist or humid places. Places exposed to direct sunlight or close to heating equipment. Extremely cold locations. Places subject to excessive vibration or dust. Poorly ventilated places. Provide sufficient ventilation, do not block ventilation openings. Do not obstruct the ventilation slots on the top surface of the unit by placing objects on them. Otherwise, the temperature inside the unit may rise, possibly affecting its long-term reliability.To ensure sufficient ventilation, the product should be placed in an open area with free air flow. Do not place a CD player or other equipment on top of the amplifier. Do not expose the amplifier to dripping or splashing. Do not place objects filled with liquids, such as vases, on or near the amplifier. Moving the Unit Before moving the unit, be sure to pull out the power cord from the AC outlet and disconnect the interconnection cords with other units. Do Not Open the Cabinet To prevent shock hazard, do not tamper with internal components for inspection or mainte- nance. Harman Kardon does not guarantee against performance degradation resulting from any modification. If water, a hairpin or wire acci- dentally enters the unit, immediately pull the plug from the AC outlet to prevent shock and consult an authorized Harman Kardon service station. If you use the unit under this condition, it may cause a fire shock hazard. Cleaning If the unit gets dirty, wipe it with a soft dry cloth. If necessary, wipe it with a soft cloth dampened with mild soapy water and then with a dry cloth. Never use benzene, thinner, alcohol or other volatile agents, and avoid spraying an insecticide near the unit. Warning Signs If you detect an abnormal smell or smoke, immediately turn the amplifier off and unplug the power cord. Contact your dealer or nearest Harman Kardon service center. Packaging Save all packing material. It is essential for shipping, should you move, or in the event the unit ever needs repair.
