Harman kardon hk 710 service manual
This is the 29 pages manual for harman kardon hk 710 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hk 710 service manual (Ocr-read)
Page 1

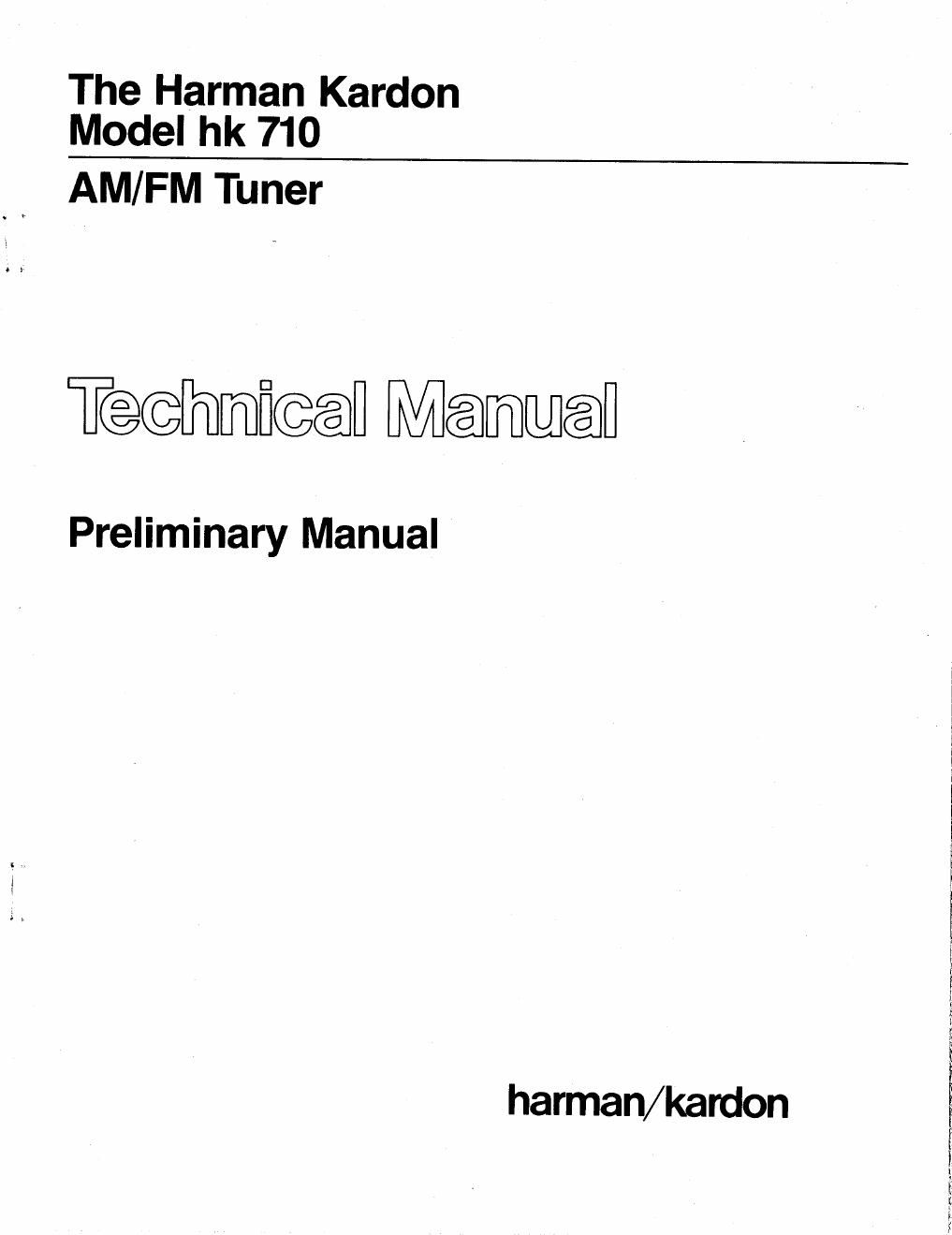

The Harman Kardon
Model hk 710
AM/FM Tuner
T@@hmfi@@fl Ménmmfl
Preliminary Manual
harman/kardon
Page 2
ALIGNMENT PROCEDURES
AM ALIGNMENT PROCEDURES
INSTRUMENTS: AM RF Signal Generator modulated with 400Hz at 30%.
AC VTVM
" NOTE: Set AM switch to ON position.
Connect signal source to a loop plaoed to radiate signals into AM antenna loop stick (L251).
STEP SIGNAL SOURCE GONNECT HAL SETDNG ADJUST ADJUST FOR
1 VTVM and oscilloscope to T251, T252, Maximum and undistorted
455kHz AM Mod. TPlA) and ground 3:16:3th T253 pattern an oscilloscope
2 VTVM and oaclllosoope to T254 Maximum and in-phase
TP(B) and ground pattern in step 1
3 Repeat steps 1 and 2 for best sensitivity.
4 54%: AM Mod. VTVM and oscilloscope to 540041 L252 Maximum Output
output jack
5 1600kHz AM Mod. Same as above tsookHz T0252 Same as above
6 Repeat steps 4 and 5 tor best dial accuracy,
7 SW AM Mode Same as above 600kHz L251 Maximum Output
6 1400: AM Mod. Same as above 1400kHz T0251 Same as above
9 Repeat $998 7 and 8 for best sensitivity
