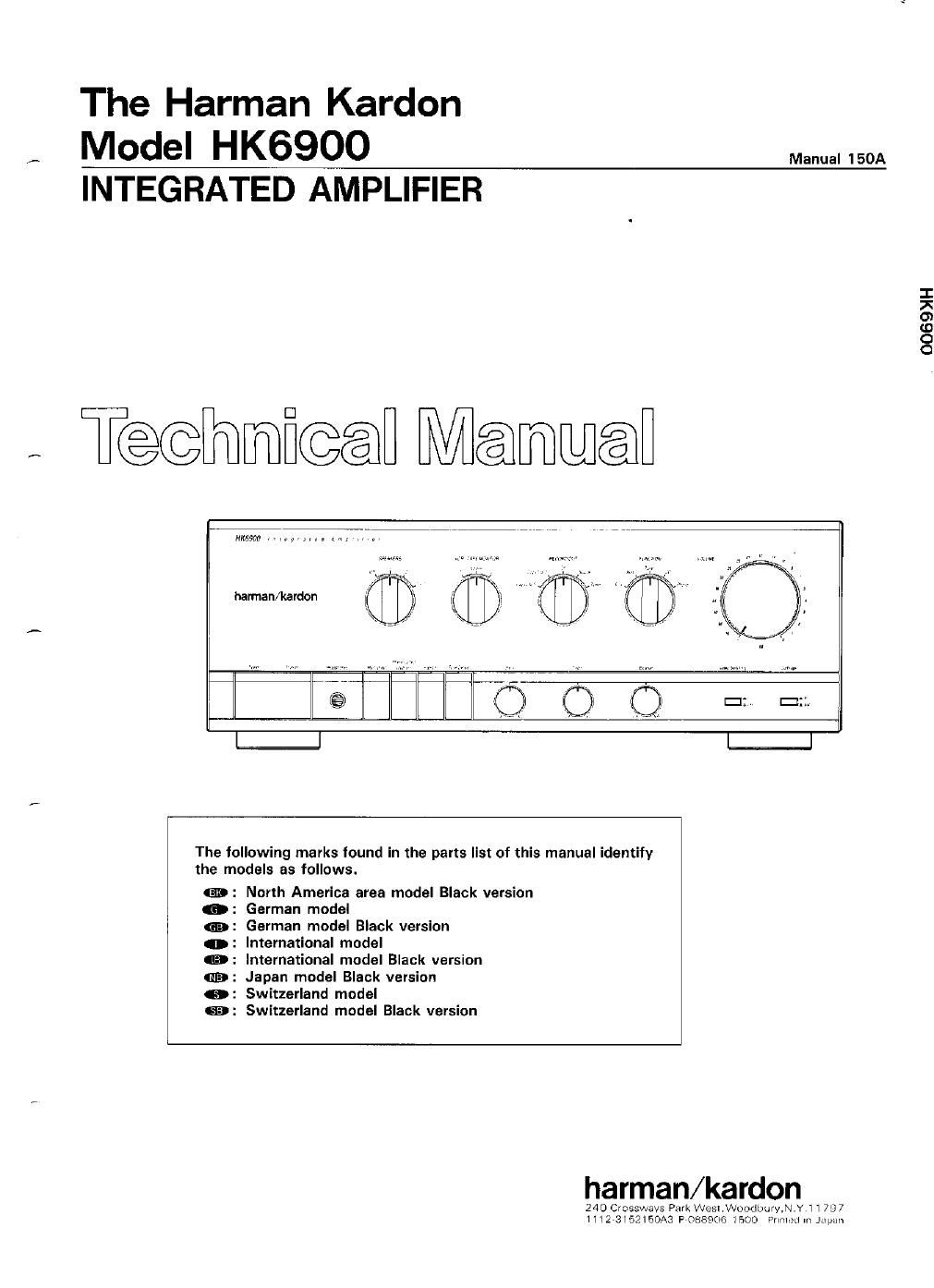

Page 1

The Harman Kardon

Model HK6900
INTEGRATED AMPLIFIER

Manual 150A

Teemfieafl Mandel

900 rrrrrrrrr l n .- m e

harrnan/kardon

the models as follows.

: German model

: German model Black version

: International model

: International model Black version
: Japan model Black version

: Switzerland model

: Switzerland model Black version

@WMQW

The following marks found in the parts list of this manual identify

: North America area model Black version

harman/kardon

240 Crosswavs Park Wesl,Woodbury,N.Y 11707
111273l52150A3 P7088906 1500 anml In Japan

OOGQMH

Page 2

HK69

SPECIFICATIONS

Nominal Limit
Continuous Average Power (FTC)
20Hz-20kHz, both channels driven

89, 0.08% THD 198W;170W

49, 0.1% THD 198W;17OW
High Instantaneous Current

Capability (HCC) 126A; 100A
Negative Feedback (Overall) 12dB

Half Power Bandwith 10Hz~ IOOkHz
Frequency Responce at ASdB O.25Hz- 234kHz
Slew Rate 280V/psec
Square Wave Rise Time Zusec§2.5usec
Input Sensitivity

Video/CD, Tuner 250mV:25mV
Phono (MM) 2.5mV:O.3mV
Phono (MC) 125W : 20pV

Signal to Noise Ratio

Video/CD, Tuner 80.8ng75dB

Phono (MM) 80ng 73:13
Phono (MC) 75.6ng72dB
Channel Separation at 10kHz
Video/CD 53.5ng43dB
Phono (MM). Tuner 51ng40dB
Phono (MC) 44.3dB; 35dB
IM Distrotion Ratio 0.07%§O.1%
Damping Factor at 1kHz 112280
Tone Control Characteristics
Bass at 50Hz
Boost 10dB t 2dB
Cut IOdB : 2dB
Treble at 10kHz
Boost 10dB i ZdB
Cut 10dB : 2dB

Nominal Limit
Filters
Subsonic 15Hz, - 3. 6dB :1dB/Octave
Phase Correct Loudness at 50H2 GdB : 3dB
DC Output Voltage
L channel OmV : 60mV
R channel OmV i 60mV

RIAA Equalization at Tape Out
(20Hz/20kHz) (22ku load)

Phono Over Load (No load)
Phono (MM)
Phono (MC)

Dimensions (W x H x D)

: 0.2dB i 0.5dB

163mV g130mv
7mV ; 5mV
17-1/2x 5-5/16 x 15-15/16"
(443 x 160 x 405mm)
Weight 37lbs. 14oz. (17.2kg)
Power Supplies
North America area model
International model
Japan model
Power Consumption -

AC 120V, BOHZ
AC 220/240V, SO/GOHZ
AC 100V, 50/60Hz

North America area model 630W (800VA)
International model 400W
Japan model 320W

Input Sensitivity for International model are 2.7mV
:0.3mv (MM) and 140;,LV1'2014V (MCIt
* Frequency Response

International model 0.27Hz~140kHz

These specifications are service target specs

Specifications and components subject to change without notice. Overall
performance will be maintained or Improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators,
etc. which were removed for servic-
ing are properly reinstalled.

3. Be sure that no shock hazard exists: check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT54OA or use alternate method as follows:

Plug the power cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 pF capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet.
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDEFI TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER PIPEBX CABLE,
CONDUIT. ETC.

HIGH

GROUND

VOLTAGE LEAD
OR + LEAD
VTVM
.0 AC SCALE 04

1.5kfl
10W

W),

_l}___

0.15l1F

TEST PROBE

CONNECT TO KNOWN
EARTH GROUND

TO EXPOSED
M ETAL PARTS

resistor. (This test should be performed with the power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
