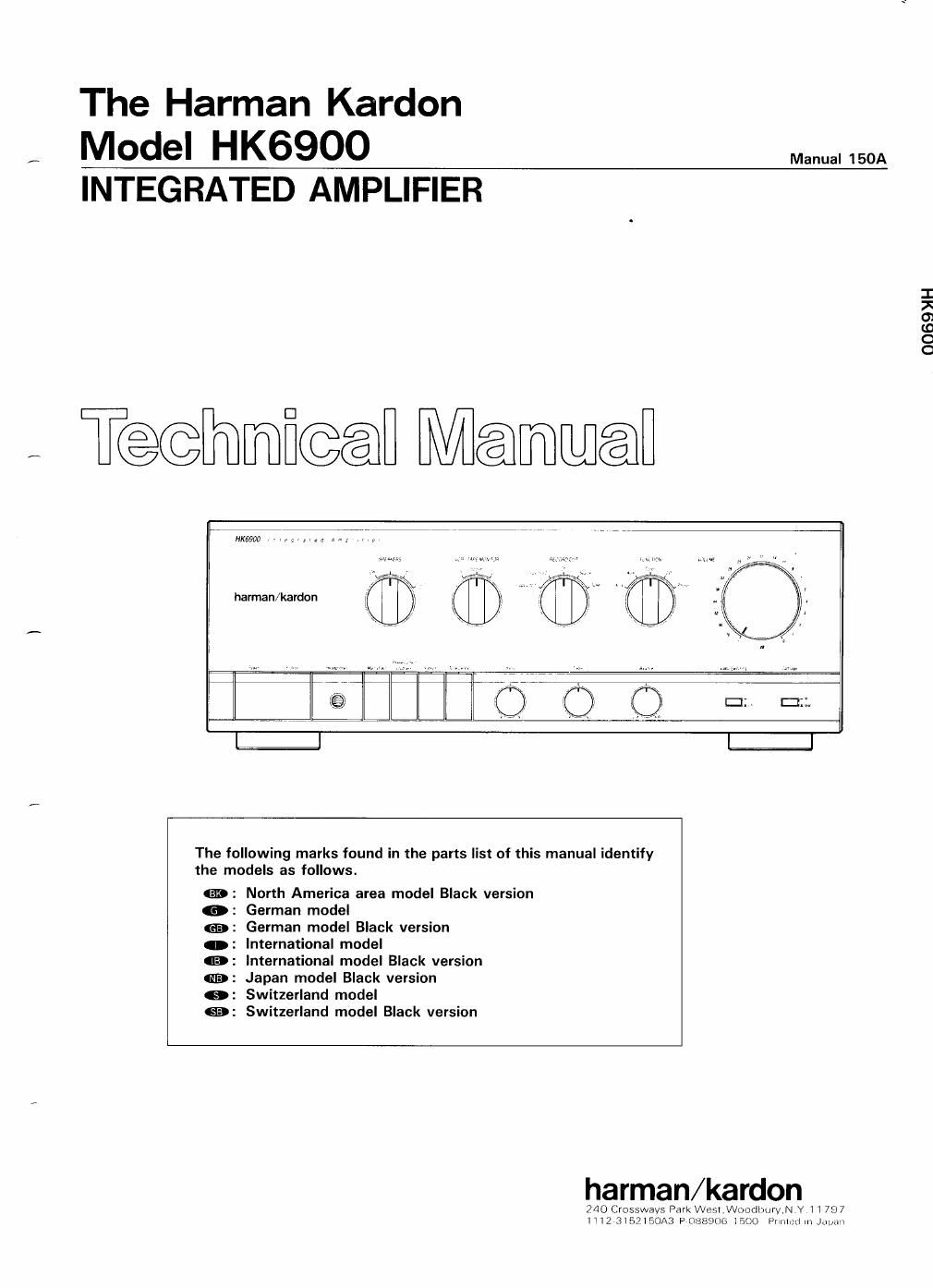

The Harman Kardon

, Model HK6900

Manual 150A

INTEGRATED AMPLIFIER

, T@@Ih]imfi@@fl Mandel

harmen/kardon

The following marks found in the parts list of this manual identify
the models as follows.

: North America area model Black version
: German model

. German model Black version

. International model

: International model Black version

: Japan model Black version

: Switzerland model

: Switzerland model Black version

@aeeaeee

harman/kardon

240 Crosswavs Park Wesl.Woodhury,NvY 1170 7
1712 31521 BOAB P 088906 1500 Primed In Japan

0069MH

Page 2

HK6900

SPECIFICATIONS
Nominal Limit Nominal Limit
Continuous Average Power (FTC) Filters
20Hz-20kHz, both channels driven Subsonic 15Hz, -3.6dB:1dB/Octave
89, 0.08% THD 198W217OW Phase Correct Loudness at 50Hz 6dBi 3dB
4x2, 0.1% THD 198W;170W DC Output Voltage
High Instantaneous Current L channel Oth60mV
Capability (HCC) 126A ; 100A R channel Omv : 60mV
Negative Feedback (Overall) 120; RIAA Equalization at Tape Out
Half Power Bandwith 10Hz~100kHz l20Hz/20kHz) (22m load) 10.2dB i0.5dB
Frequency Responce at ~3dB O.25Hz~234kHz* Phono OVGF Load (N0 load)
Slew Rate 280V/psec Phono (MM) 163mVe130mV
Square Wave Rise Time Zpsecg 2.5;isec Phono (MCI 7mV é 5mV
Input Sensitivity Dimensions (W X H x D) 1771/2" x 6-5/16"x15-15/16"
Video/CD, Tuner 250mVi25mV (443X160X405mml
Phono (MM) 2.5mV:O.3mV* Weight 37lbs. 14oz. (17.2kg)
Phono (MC) 125W t 20,iv* Power Suoplies
Signal to Noise Ratio North America area model AC 120V, 60Hz
Video/CD, Tuner 80.8de75dB International model AC 220/240V, 50/60Hz
Phono (MM) 80dBé73dB Japan model AC 100V, 50/60Hz
Phono (MC) 75.6ng72dB Power Consumption -
Channel Separation at 10kHz North America area model 630W (800VA)
Video/CD 53.5ng43dB International model 400W
Phono (MM), Tuner 51ng40dB Japan model 320W
Phono (MC) 44.1%ng 35dB
IM Distrotion Ratio 0.07%;0.1%
Damping Factor at 1kHz 112580 * Input Sensitivity for International model are 2.7mV
Tone Control Characteristics $0.3mV (MM) and 140pV120uV (MCI-
Bass at 50Hz * Frequency Responce
Boost 10dB:2dB International model 0.27Hz~140kHz
Cut IOdB i 2dB
Treble at 'IOkHZ These specifications are service target specs.
Boost 10dB i 2dB
Cut 10dB I 2dB

Specifications and components subject to change without notice. Overall
performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.I

Before returning the unit to the user, perform the following safety checks:
1. Inspect all lead dress to make certain

that leads are not pinched or that SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

hardware is not lodged between

the chassis and other metal parts
in the unit. TO EACH EXPOSED

. . TAL SURFACE OF
2. Be sure that any protective devrces MEI UNDER TEST HIGH

such as nonmetallic control knobs, VOLTAGE
insulating fishpapers, cabinet backs, OR T LEAD
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators, é
etc. which were removed for servic-
ing are properly reinstalled. VTVM
3. Be sure that no shock hazard exists; check for leakage -0 Ac SCALE 0-
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model l.5kn
WT540A or use alternate method as follows: 10w
Plug the power cord directly into a 120evolt AC WV
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 uF capacitor,
in series with all exposed metal cabinet parts and -_| l-
a known earth ground, such as a water pipe or conduit. 0.15pF
Use a VTVM or VOM with 1000 Ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet, T0 EXPOSED CONNECT To KNOWN
screw heads, knobs and control shafts. escutcheon, METAL pApn-s EARTH GROUND
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the power switch in both the On and Off positions.)
A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before
returning the unit to the owner.

TO AC GROUND SUCH
AS WATER PIPEBX CABLE,
CONDUIT, ETC.

GROUND
LEAD

TEST PROBE
