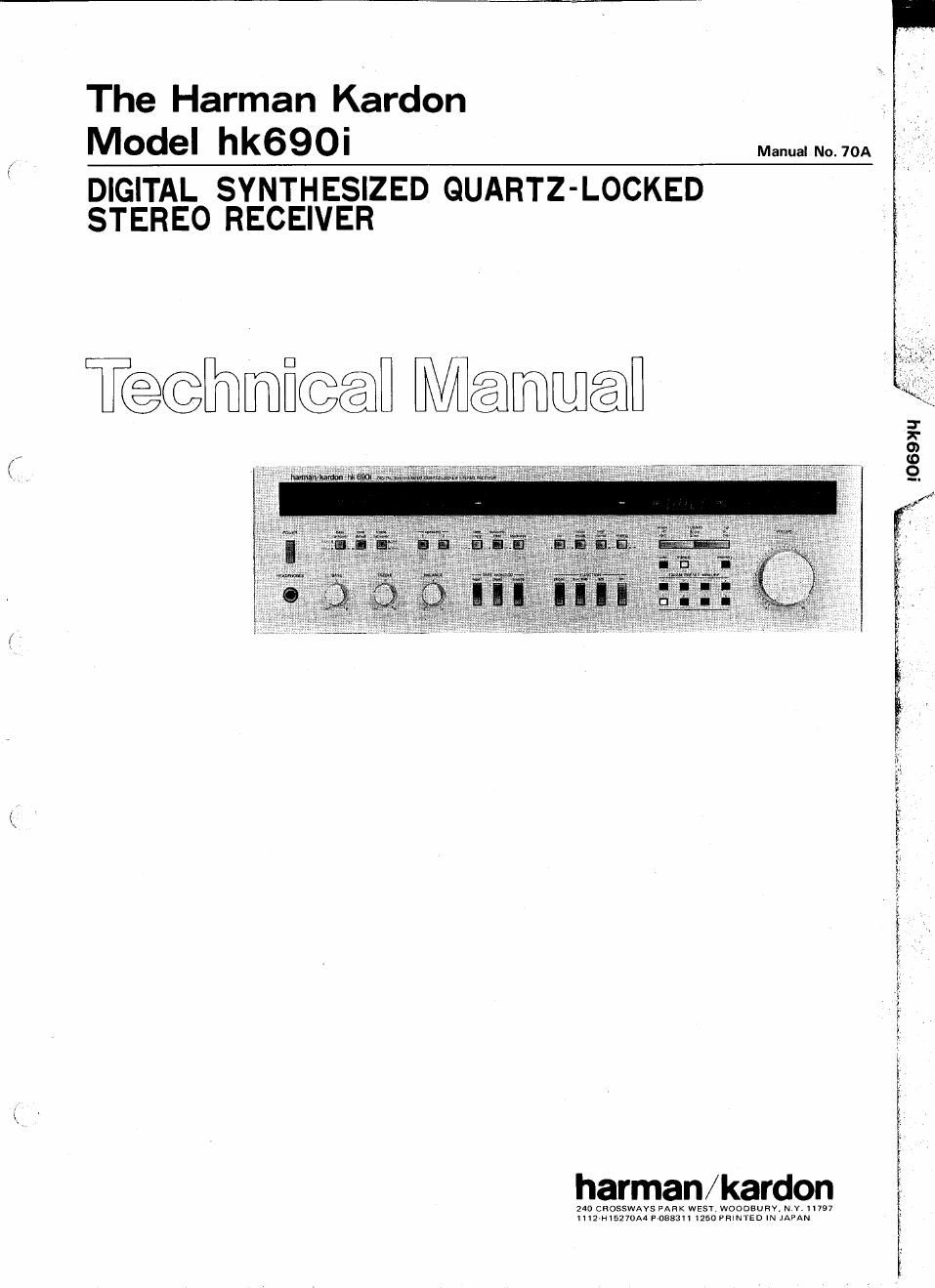

Harman kardon hk 690 i service manual

Page 2

W
SPECIFICATIONS
0 FM SECTION Nominal Limit Nominal Limit
Tuning Flange 87.5 ~ 108.0MHZ Channel Separation at IOkHz
50dB Quieting Sensitivity AUX/DAD 54dB Z 45dB
Mono 16.6dBf S 18dBf Phono MM 54:13 2 45dB (_
Stereo 38.5dBf S 40dBf MC 58dB 2 45dB \
Usable Sensitivity 11.5dBf S l4.5dBf IM Distortion Ratio 0.05% S 0.1%
Image Ratio 77:13 2 70dB RMs Output Power
IF Rejection 95dB 2 85dB an, 1kHz,THD 0.08% 68W 2 60W
Spurious Response Rejection 114dB 2 95:13 49, IkHz, THD 0.08% 102w 2 90w
Capture Ratio 1.0dB S 2.0dB Damping Factor at 1kHZ 67 Z 50
Alternate Channel Selectivity 63dB 2 50dB Tone Control Characteristics
AM Rejection 55dB 2 45613 Bass Turnover Frequency 4OOHz/200Hz
Signal to Noise Ratio Treble Turnover Frequency 2kHz/6kHz
Mono 82dB 2 78dB Bass at 50H:
Stereo 73dB 2 70dB Boost IOdB i 2dB
Total Harmonic Distortion (65dBf1kHz Input) Cut -1oclB t 2dB
Mono 0.06%S0.15 Treble at 10kHz
Stereo 0.08% S 0.3% Boost 10dB : ZdB
Stereo Separation at 1kHz 58:18 2 45dB cut -10dB 1r 2dB
0 AM SECTION Loudness Control
-- Tuning Range 520~1,710kHz at 10kHz 3dB i MB
3 Usable Sensitivity 14w S zouv at 50Hz was t 2dB
9 Selectivity 53dB Z 35dB Subsonic Control
:1 Signal to Noise Ratio 55113 2 50dB at 15H: 3dB t ME
-= Image Rejection 44.13 2 38dB DC Output Voltage
\,-.. IF Rejection GOdB 2 50dB L channel OmV i GOmV
. " . 0 AUDIO SECTION R channel OmV i 60mV

Usable Sensitivity

AUX/DAD 135mV a 25mV
Phono MM 2.2mV t 0.2mV
Mc 120W t 15W
Signal to Noise Ratio
AUX/DAD 79.5dB 2 78dB
Phono MM 79dB 2 77:13
MC 77dB 2 74dB

LEAKAGE TEST

RIAA Equalization at Tape Out (20Hz/20kHz)
0.2dB i 0.5dB/O.1dB i 0.5dB

O DIMENTIONS (W x H x D) 17-7/16 x 5-1/4" x14-3/8"
(443 x135 x 365 mm)
o WEIGHT 24lbs. 402. (11 kg)

0 POWER SUPPLY AC120V, 60Hz

0 POWER CONSUMPTION 400W (440VA)

This specification is the target of servicing. But, there is a case ,
that the specification is not applicable to the measurement
condition and instrument.

Specifications and components subject to change without notice.

Overall performance will be maintained or improved.

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that hard-
ware is not lodged between the chassis
and other metal parts in the unit.

2. Be sure that any protective devices such T0 EACH EXPOSED
METAL SURFACE OF

UNIT UNDER TEST

as nonmetallic control knobs, insulating
fishpapers, cabinet backs, adiustment
and compartment covers or shields,
isolation resistor-capacity networks, me-
chanical insulators, etc. which were
removed for servicing are properly

" reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 2164i, RCA Model
WT540A or use alternate method as follows:

Plug the AC line cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500 ohm,
10-watt resistor paralleled by a 0.15mf capacitor, in
series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 ohms per volt, or
higher, sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the
power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and
indicates a potential shock hazard which must be
corrected before returning the unit to the owner.

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER on BX CABLE
CON DUIT, ETC.

HIGH
VOLTAGE
OR +LEAD

GROUND
LEAD

é
VTVM
-OAC SCALE 0-

1.5KOHM
10W

WV

-4 I- _
0.15 MF L;

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO KNOWN
EARTH GROUND
