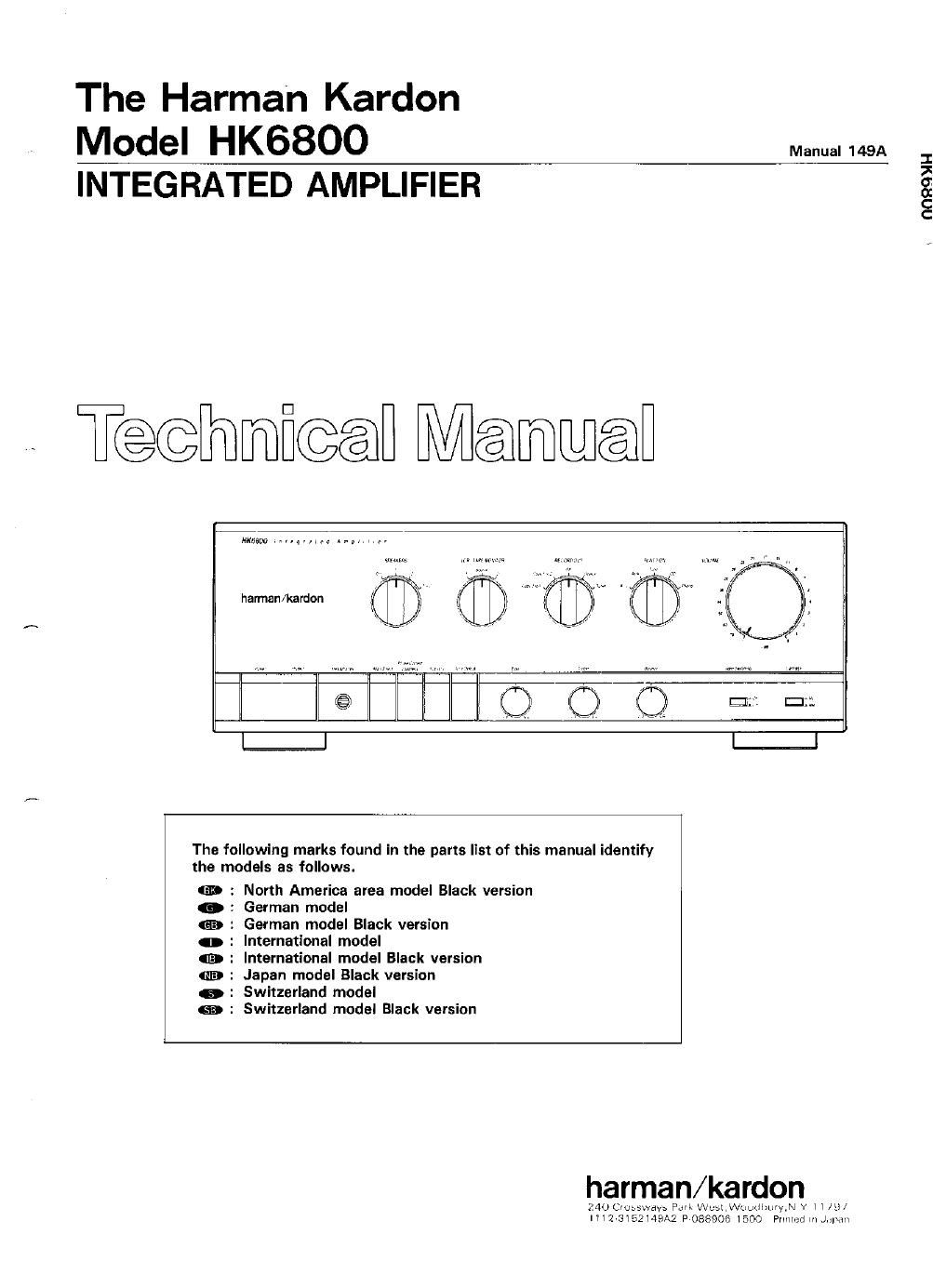

Page 1

The Harman Kardon

Model HK6800 Mm. 149A
INTEGRATED AMPLIFIER

Tecehmfiwl Mammal

NKEHDO n r r q rrrrrrrrrrrrrr
harman/kardon
@ O O) Q art m2:

The following marks found in the parts list of this manual identify
the models as follows.

: North America area model Black version
: German model

: German model Black version

: International model

: International model Black version

: Japan model Black version

: Switzerland model

: Switzerland model Black version

meme

harman/kardon

240 Cwbswdy: Pulls Wr:>l.Wuu IIIZ 3152149A2 P1088905 1500 Primed in Japan

0099)!

Page 2

HK6800

SPECIFICATIONS

Nominal Limit
Continuous Average Power (FTC)
20H2720kHz, both channels driven

89, 0.08% THD 132W2120W

49, 1% THD 139W:120W-
High Instantaneous Current

Capability (HCC) 80Ag7OA

Negative Feedback (Overall) 12dB
Half Power Bandwith 10Hz~100kHz
Frequency Responce at -3dB 0.26H2~214kH2*
Slew Rate 280V/psec
Square Wave Rise Time 2psec§2.5psec
Input Sensitivity

Video/CD, Tuner 250mV iZSmV

Phono (MM) 2.5mV i0.3mV

Phono (MC) 128w : ZOpV'
Signal to Noise Ratio

Video/CD, Tuner 83)ng 75dB

Phono (MM) 82.5dfig76d8

Phono (MC) 76ng72dB
Channel Separation at 10kHz

Video/CD 53.5ng43dB

Phono (MM), Tuner 53dB;40dB

Phono (MCI 51.5dl3 g40dB

IM Distrotion Ratio 0.07% 50.1%

Damping Factor at lkHz 100370
Tone Control Characteristics
Bass at 50Hz
Boost 10dB : 2dB
Cut 10dB : 2d8
Treble at 10kHz
Boost 10dB : 2dB
Cut 10dB 1 2dB

Nominal Limit
Filters

Subsonic 15Hz, 3. 5dB i 1dB/Octave

Phase Correct Loudness at 50Hz 6dBi 2dB
DC Output Voltage

L channel OmV i 60mV

R channel OmV i 60mV

RIAA Equalization at Tape Out
(20Hz/20kHZ] (ZZKQ load)

Phono Over Load (No load)
Phono (MM)
Phono (MC)

Dimensions (W x H x D)

i 0.2dB I 0.5dB

163mV;120mV
75ng 5mV
17-1/2 x 66/16" x15-15/16"
(443 x 160 x 405mm)
Weight 34le. 1302. (15.8kg)
Power Supplies
North America area model
International model
Japan model
Power Consumption

AC 120V, 60Hz
AC 220/240V, SO/SOHZ
AC 100V, 50/60Hz

North America area model 450W (54OVA)
International model 310W
Japan model 230W

Input Sensitivity for International model are 2.7mV
20.3mv (MM) and 140uV120uV (MC).
* Frequency Response

International model 1Hz~110kHz

These specifications are service target specs,

Speculications and conponents subject (0 change without notice. Overall
performance will be maintained or Improved,

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs)
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators.
etc. which were removed for servic-
ing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT54OA or use alternate method as follows:

Plug the power cord directly into a Hawk AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 pF capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

TO EXPOSED
METAL PARTS

SIMPSON MODEL 229 ETC FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER PIPEBX CABLE.

HIGH GROUND CONDUIT, ETC.
VOLTAGE LEAD
0R + LEAD
VTVM
.0AC SCA'LEO_

1.5kfl
10W

AN),

__'|__._

0.15M:

TEST PROBE

CONNECT TO KNOWN
EARTH GROUND

resistor. (This test should be performed with the power switch in both the On and Off positions.)
A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
