Harman kardon hk 670

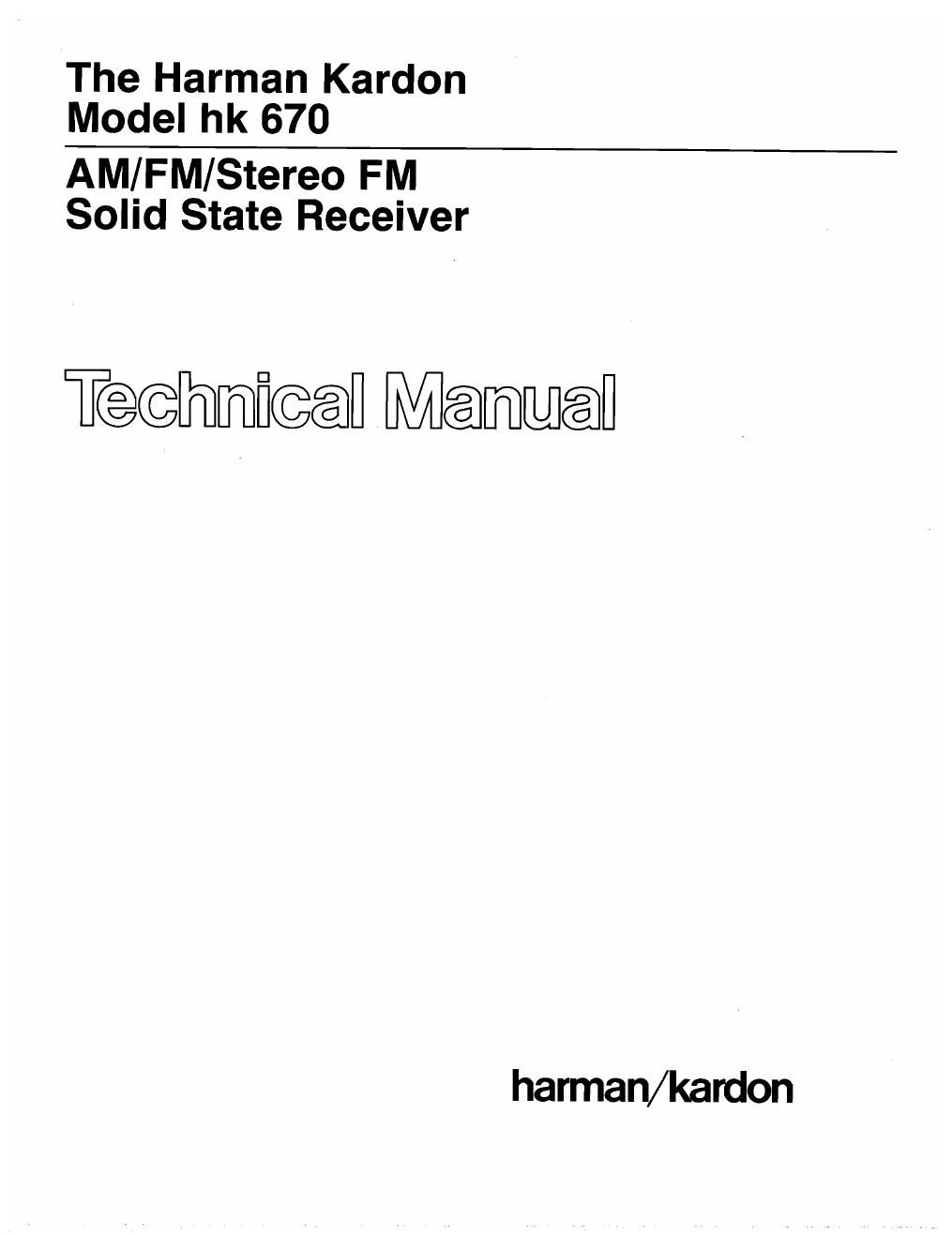

Page 1

The Harman Kardon
Model hk 670

AM/FM/Stereo FM
Solid State Receiver

Teehmficeefl Memenfl

harman/kardon

Page 2

PRECAUTIONS

1. Always disconnect the chassis from power line when soldering. Turning the power switch OFF is not enough
Power line leakage passing through the heating element may destroy the transistors.

2. Never attempt to do any work on the transistor amplifiers without first disconnecting the AC line cord and
waiting until the power supply filter capacitors have discharged.

3. Replacement for output and driver transistors, if necessary, must be made from the same beta group as the
original type.

4. If one output transistor burns out (open or short) always remove all the output transistors in that channel and
check the bias adjustment, the control and other parts in the network with an ohmmeter before inserting a new
transistor. All transistors in one channel will be destroyed if the base biasing circuit is open on the emitter end.

5. When mounting a replacement power transistor, be sure that the bottom of the flange, the mica insulators and
the surface of the heat sink are free of foreign matter, for they may cause transistor failure.

6. Silicon grease must be applied between the transistor and the mica insulator, and between the mica insulator and
the heat sink for better heat conduction.

7. Fuses must be replaced with size and type indicated. Use of other types can expose components to destructive
current levels.

ALIGNMENT PROCEDURES
POWER AMPLIFIER IDLING ADJUSTMENT

INSTRUMENTS. 1. D. C. V. T. V. M.

NOTE 1. Set function selector switch to AUX position.
2. Set volume control to minimum position.
3. Connect 8 ohm (50W) resistors to left and ground, right and ground speaker terminals.
STEP CONNECT OUTPUT METER TO ADJUST ADJUST FOR
1 D. C. V. T. V. M. to TP6 (H and TF7 (r) VR403 SSmV i4mV
2 D. C. V. T. V. M. to TP8 (+1 and TP9 l-l VR404 Same as above

OUTPUT DC VOLTAGE ZERO ADJUSTMENT
INSTRUMENTS 1. D. c. V. T. V. M.
NOTE 1. Set function selector switch to AUX position.

2. Set volume control to minimum position.
3. Press in speaker 1 push button to ON (button in) position.

STEP CONNECT OUTPUT METER TO ADJUST ADJUST FOR

1 D. C. V. T. V. M. to R CH terminal VR401 0V iZOmV
of speaker system 1

2 D. c. V. T. V. M. L CH terminal VFI402 Same as above
of speaker system 1

3 Confirm the value of idling current once again.
