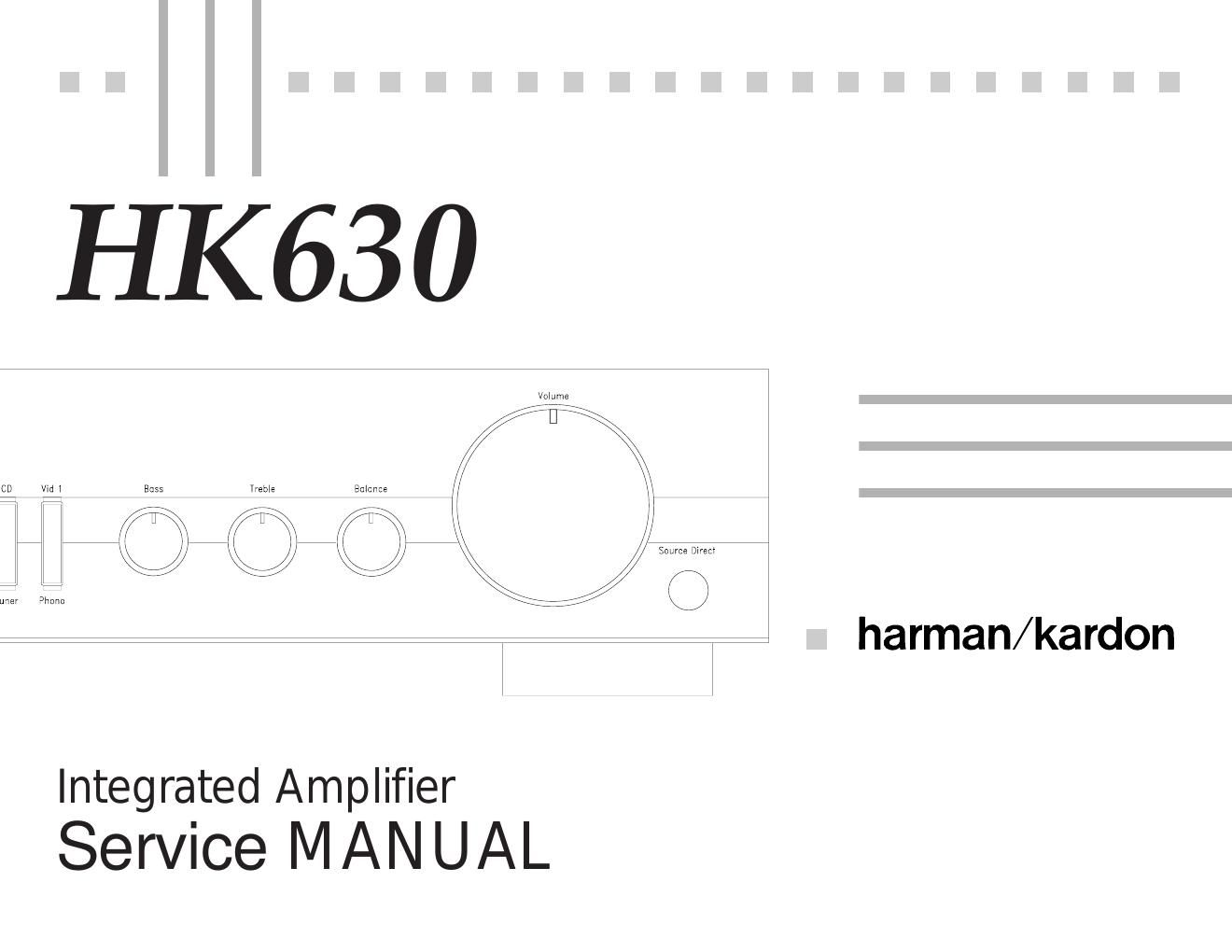

Harman kardon hk 630 service manual
This is the 18 pages manual for harman kardon hk 630 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hk 630 service manual (Ocr-read)
Page 1
Troubleshooting ENGLISH This unit is designed for tr ouble-free operation. Most pr oblems users encounter ar e due to operating errors. So, if you have a pr oblem, first check this list for a possible solution. If the pr oblem persists, consult your authorized Har man/Kardon Service Center . IF THE PROBLEM IS... MAKE SURE THAT... No lights illuminate when POWER cor d is plugged into AC outlet ¥ The unit is plugged into a live outlet No sound is hear d ¥ Speaker switches corresponding to the desir ed speakers are pressed ¥ Cor rect sour ce button has been pr essed ¥ V olume is tur ned up ¥ Speaker wir es are connected pr operly ¥ Hook-up wires to source component ar e connected properly Sound is not hear d from the speaker system on one side ¥ The speaker wires and connection wir es are connected cor rectly ¥ The balance contr ol knob is set to the center When listening to ster eo sound, the left and right sounds ar e reversed ¥ The speaker wires are connected cor rectly ¥ The wir es between components ar e connected correctly Inter mittent or continuous buzzing or hissing ¥ The unit is away from fluorescent lights, TV , motors and other electrical appliances The remote contr ol and front panel contr ols don't appear to work ¥ Disconnect the AC line cord from the wall socket, wait 5 minutes and then r e-connect it Phone sound is too faint, has hum, ringing, or ÈhowlÇ ¥ Ground wir e from tur nable has been connected to gr ound terminal on amplifier ¥ Cable fr om turntable is away fr om power cords and speaker cables ¥ T urntable is away fr om speakers ¥ Turntable is on stable sur face
Page 2
ENGLISH Specifications HK630 NOMINAL Continuous Average Power Per Channel (FTC) 8 Ohms:40 Watts@<0.09%THD 20Hz Ð 20 kHz, both channels driven 4 Ohms:60 Watts@<0.3%THD Dynamic Power (IHF , 1kHz Tone Burst) 8 Ohms:70 Watts 4 Ohms: 100 Watts 2 Ohms: 135 Watts High instantaneous cur rent capability (HCC) ±40 Amps Power Bandwidth @ Half-Rated output, 8 ½ <10Hz - 100kHz Frequency r esponse @ 1W (+0/-3dB) 0.5Hz - 100kHz Damping factor 120 Signal-to-noise Ratio (Refer ence rated power output, A-WTD) Tuner/CD 90 dB Phono (MM): 80 dB Input sensitivity/Impedance Tuner/CD 150mV/43kW Phono (MM): 2.5mV/47kW, 125pF Phono-Overload: Phono (MM):100 mV Tone contr ol range, Bass @ 50 Hz/T reble @ 10kHz ±10 dB/ ±10 dB Power supply: AC 230V, 50/60 Hz Power consumption: 230 W Dimensions (Width ´Height ´Depth): 443 ´91 ´359 mm W eight: 6.4 kg
