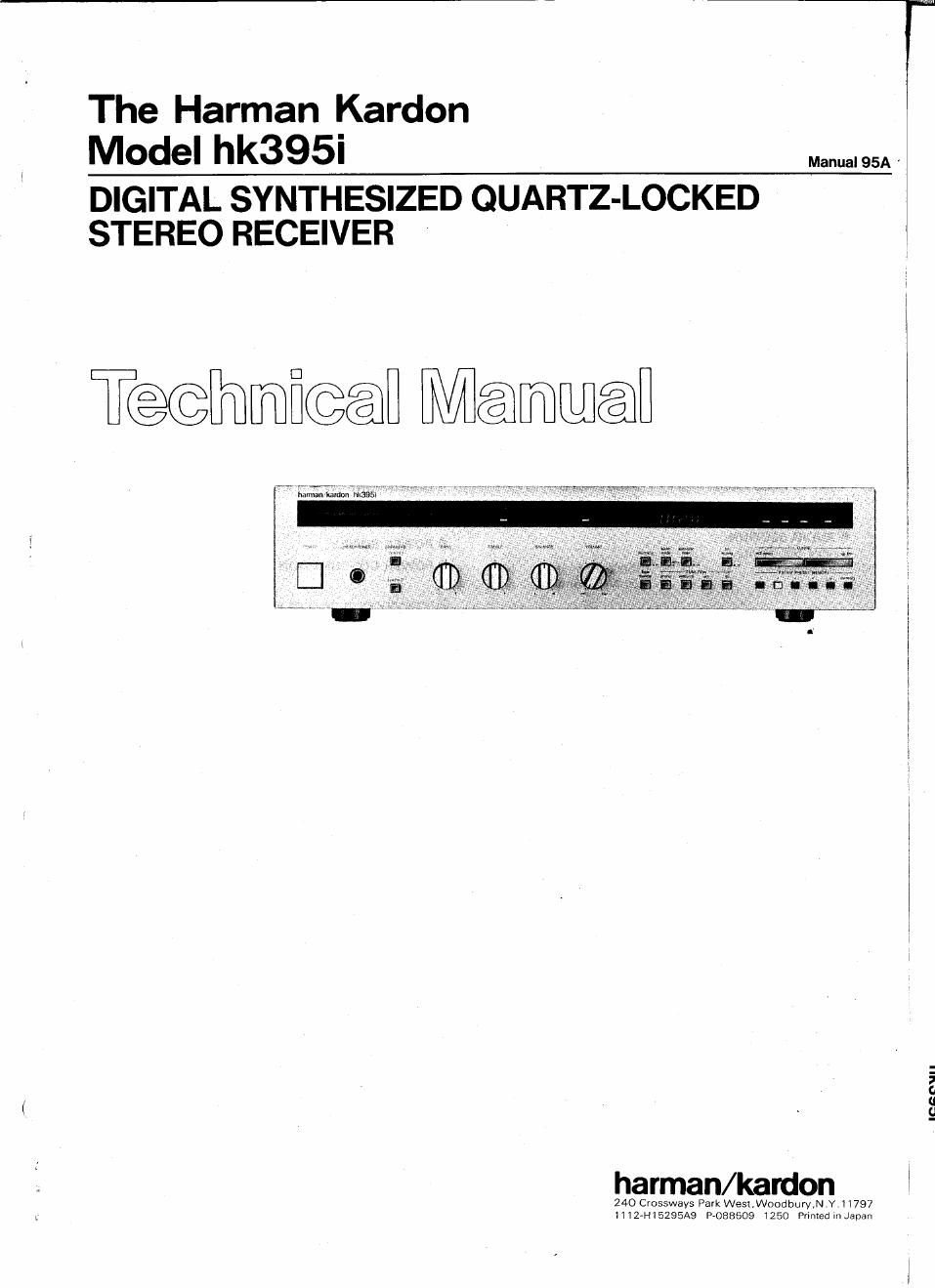

The Harman Kardon

MOdel hk395i Manual 95A

DIGITAL SYNTHESIZED QUARTZ-LOCKED
STEREO RECEIVER

T@@mfi@@fl Méamfléafl

Iccoun

harman/kardon §

240 Crossways Park Wesl,Woodbuh/.N Y H797
1112-H15295A9 P7088509 1250 Printed in Japan

Page 2

m

hk395i

SPECIFICATIONS

0 FM SECTION
Tuning Range
50dB Ouieting Sensitivity

Nominal Limit

87.5~ 108.0 MHz

Mono 15.7dst19dBf

Stereo 37(1st 41dBf
Usable Sensitivity 10.7dBf515dBf
Image Ratio 42dB 2 36dB
IF Rejection 94dB 2 75dB
Spurious Response Rejection 74d8260dB
Capture Ratio 1.25dBSZdB
Alternate Channel Selectivity 63dB2 SOdB
AM Rejection 57dB 2 45:13
Signal to Noise Ratio

Mono 82dB275dB

Stereo 75dB270dB
Total Harmonic Distortion

Mono 0.07%50.3%

Stereo 006% s 0.4%
Stereo Separation at lkHz 53dB240dB
0 AM SECTION

Tuning Range 520~1,710kHz

Usable Sensitivity

External Antenna 11W 5 ZOpV

Loop Antenna 240uV/m
Selectivity 39dB 2 33dB
Signal to Noise Ratio 54dB 2 48113
Image Rejection 40dB 2 35dB
IF Rejection 62dB 2 50dB
0 AUDIO SECTION
Usable Sensitivity

Video/CD 135mV2l: 25mV

Phono 2.2mV i 0.3mV

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE

Nominal Limit

Signal to Noise Ratio

Video/CD 84:13 2 78dB

Phono 80dB 2 72dB
Channel Separation at IOkHz

Video/CD 52dB245dB

Phono 57dB 2 45dB
IM Distortion Ratio 0.1%:0.2%
RMS Output Power 35W2 30W

89, 1kHz, THD 0.09%
Damping Factor at 1kHz 70260

Tone Control Characteristics
Bass at SOHz

Boost IOdB :l: 2dB
Cut - IOdB i 2dB
Treble at 10kHz
Boost 10dBd:2dB
Cut - 10513 i 2115
Loudness Control
at 10kHz 3deeldB
at 50Hz 10dB :t: 2dB
DC Output Voltage
L channel OmV a: 60mV
R channel OmV d: 60mV

RlAA Equalization at Tape Out l20Hz/20kHz)
1.2dB :3}; dB/0.3dBi1i)o dB

. DIMENSIONS (W x H x D) 17-1/2 X 4-1/16" x14-1/2"
(443 x 103 x 368 mm)

13le. 1402. (6.3kg)
AC120V, GOHZ
165W

0 WEIGHT
0 POWER SUPPLY
0 POWER CONSUMPTION

This specification is the target of servicing. But, there is a case that the
specification is not applicable to the measurement condition and instrument.

Specifications and components subject to change without notice Overall
performance will be maintained or improved.

U.S.A.)

Before returning the unit to the user, perform the following safety checks:

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers. cabinet backs,
adjustment and compartment covers
or shields, isolation resistor»capacity
networks, mechanical insulators,
etc. which were removed for servic-
ing are properly reinstalled.

3. Be sure. that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT54OA or use alternate method as follows:

Plug the power cord directly into a 1207volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 pF capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher, sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts. escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
UNIT UNDER TEST

METAL SURFACE OF

TO AC GROUND SUCH

HIGH
VOLTAGE
OR +LEAD

GROUND CONDUIT, ETC.

LEAD

6

VTVM
.0 Ac SCALEQ-

l .5kn
low

M

_|l_

0.15lAF

TEST PROBE

CONNECT T0 KNOWN
EAFITH GROUND

T0 EXPOSED
METAL PARTS

resistor. (This test should be performed with the power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.

AS WATER PIPE, BX CABLE,

(
