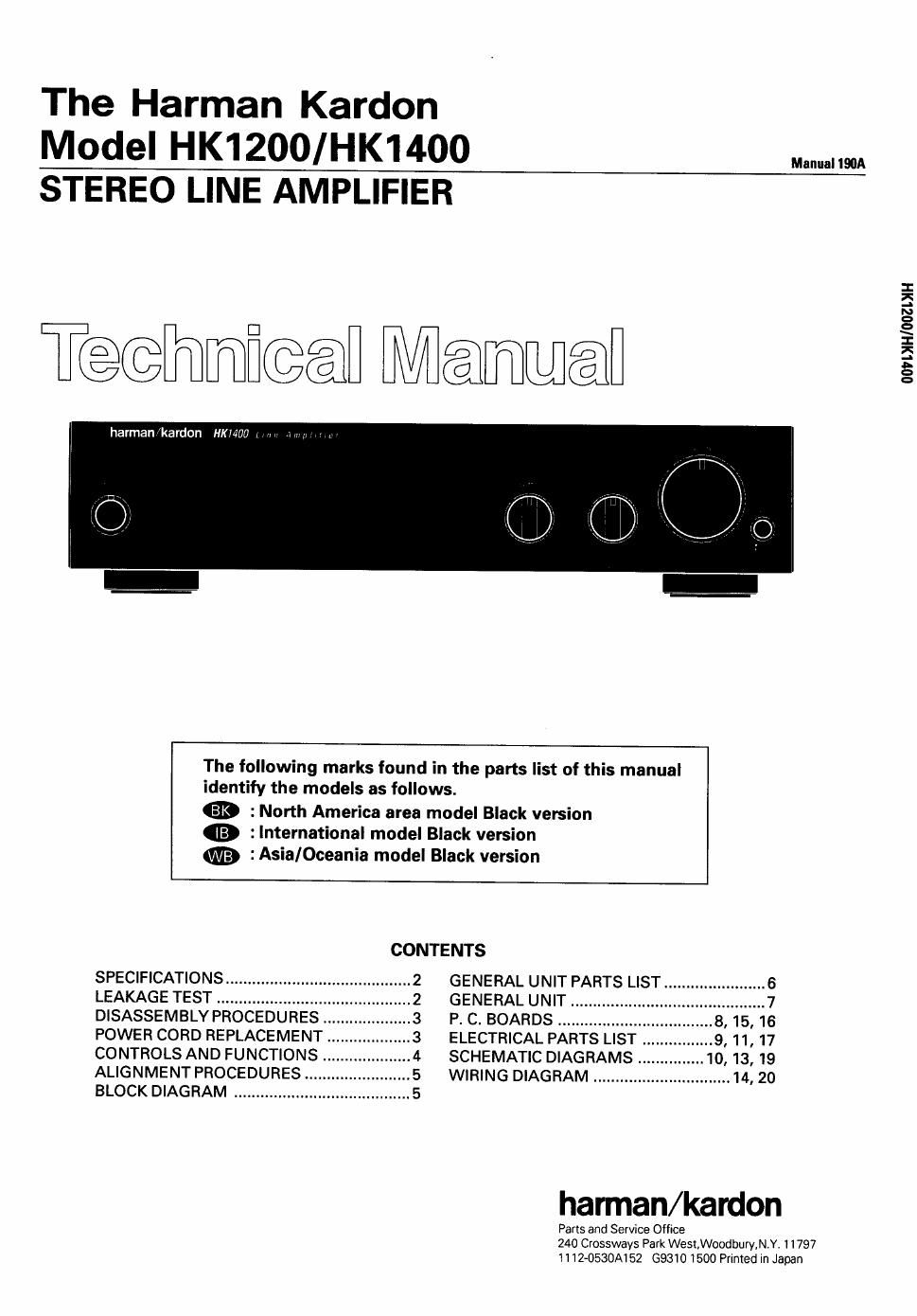

Page 1

The Harman Kardon
Model HK1200/HK1400 mum
STEREO LINE AMPLIFIER

T@@mfi@@l Memefl

harman kardon HKNUD 1 , .ml 3 _,

The following marks found in the parts list of this manual
identify the models as follows.

135 : North America area model Black version

11;) : International model Black version

w) :AsialOceania model Black version

CONTENTS

SPECIFICATIONS ..... 2 GENERAL UNIT PARTS LIST
LEAKAGE TEST ............ 2 GENERAL UNIT ...........

DISASSEMBLY PROCEDURES ...3 P. C. BOARDS ..............

POWER CORD REPLACEMENT .. ...3 ELECTRICAL PARTS LIST .. ...9, 11,17
CONTROLS AND FUNCTIONS ...4 SCHEMATIC DIAGRAMS .10, 13, 19
ALIGNMENT PROCEDURES ...5 WIRING DIAGRAM .............

BLOCK DIAGRAM ................... 5

harman/kardon

Parts and Service Office
240 Crossways Park WesI.Woodbury.N.Y. 11797
1112-0530A152 (39310 1500 Primed in Japan

OMLMH/OOZDIH

Page 2

HK1200/HK1400

SPECIFICATIONS

Nominal Limit
HMS Output Power
8 O, 1kHz THD 0.1% 33.5w g 25W(Model : HK1200)
45.4w g 40W(Mode| :HK1400)
4 Q, 1kHz THD 0.3% 49W g WWIMDdeI:HK1200)
75.4w ; 60W(Model:HK1400)

High-instantaneous Current

Capability (HCC) 37A g 30A (Model: HK1200I
43.5A g 35A (Model: HK1-100)
Half Power Bandwidth
(THD 0.1%) <10Hz-100kHz <10Hz-70kHz

Frequency Response
(at -3dB down) 0.1Hz-A20kHz <1 Hz- g 350kHz
(Model : HK1200)
0.1Hz-410kHz <1Hz- g3EOkHz

(Model : HK1400I

Input Sensitivity
(at 25W output) Normal: 135mV >135mVi25mV/39kfli5kfl
(Model : HK1200)
(at 25W output) -10dB : 4AOmV >440mVi25mV/39kfli5m
(Model : HK1200)
(at 40W output) Normal: 135mV >135mVfl5mV/39kflt5kfl

(Model : HK1 400)
44va >442mVi25mV/39k1215k9
(Model : HK1400)

90dBlModol : HK1200)
90dBlModeI : HK1400)

(at 40W output) -10dB :

100113

Signal to Noise Ratio g
98.5dB g

Nominal Limit
Channel Separation
(at tokHz) 65 dB g 55 dB
IM Distortion Ratio (at 1W) 0.065% g 0.1% (Model : HK1200)
0.052% s 0.1% (Model : HK1400)
Damping Factor (et1Hz) 55.7 g 45 (ModeleKIZOOI
84.5 g 75 (Model : HKHOOI
DC Output Voltage (at 49)
L channel OmV 1 GOmV
R channel OmV 1 60mV
Idling Current (at 30) 75mA 75mA 1t 5mA
Dimensions 17.4" x L1" x13.7"
(WxH x0) (3): 105x347 mm)
Weight 18.3 lbs. / 8.3 kg (Model : HK1200)

15.0 lbs. /6.8 kg (Model : HK1400I

Power Supplies
North America area model
International and
Asia/Oceania models

AC120V, 60 Hz

AC230/240V, 50/60Hz

110W (Model : HK1200I
130W (Model : HKIZDOI
140W (Model : HK1400)
160W (Modal : HK1400)

Power Consumption

These specifications are service target specs.

Specifications and components are subject to change without notice.
Overall performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A)
Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make cer-
tain that leads are not pinched or
that hardware is not lodged be-
tween the chassis and other metal
parts in the unit.

2. Be sure that any protective de-
vices such as nonmetallic control
knobs, insulating fishpapers,
cabinet backs, adjustment and
compartment covers or shields,
isolation resistor-capacity net-
works, mechanical insulators, etc.
which were removed for servicing
are properly reinstalled.

3. Be sure that no shock hazard exists; check for leak-
age current using Simpson Model 229 Leakage
Tester, standard equipment item No. 21641, RCA
Model WT540A or use alternate method as follows:
Plug the power cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500 Ohm,
10-watt resistor paralleled by a 0.15 uF capacitor, in
series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or con-
duit. Use a VTVM or VOM with 1000 Ohms per volt,
or higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resis-
tor connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the
power switch in both the On and Off positions.)

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

T0 AC GROUND SUCH
AS WATER PIPE,BX CABLE,

'5 GROUND CONDUIT. ETC.
VOLTAGE LEAD
on tLEAD

VTVM

.0 AC SCALEQ.

1.5kn
10W

VW

_l|__.

0.15uF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT T0 KNOWN
EARTH GROUND

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected

before returning the unit to the owner.
