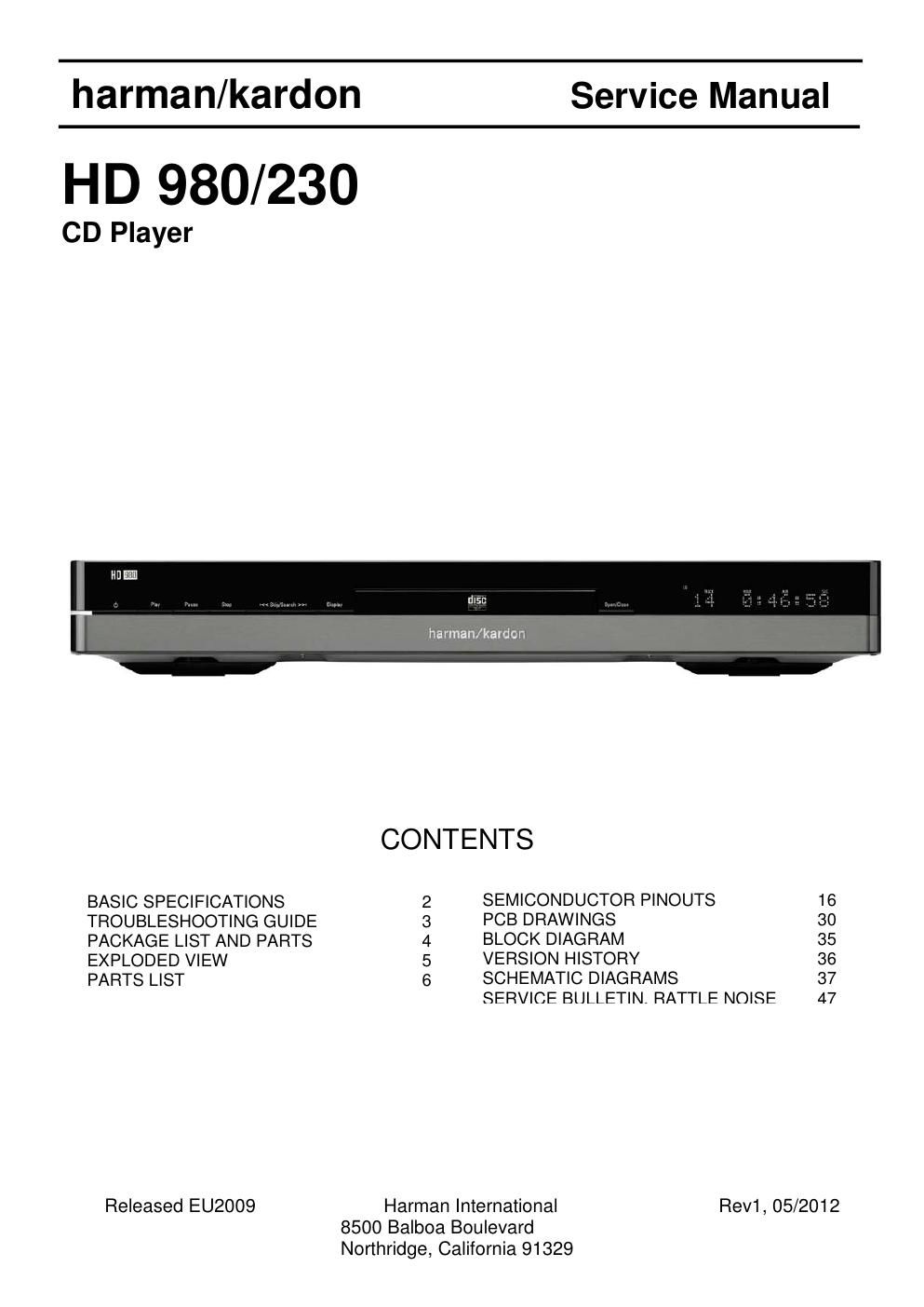

Page 1

harman/kardon Service Manual

HD 980/230

CD Player

HI]-
I

BASIC SPECIFICATIONS
TROUBLESHOOTING GUIDE
PACKAGE LIST AND PARTS
EXPLODED VIEW

PARTS LIST

Released EU2009

IIISI:

harmen/kardon

CONTENTS
2 SEMICONDUCTOR PINOUTS 16
3 PCB DRAWINGS 30
4 BLOCK DIAGRAM 35
5 VERSION HISTORY 36
6 SCHEMATIC DIAGRAMS 37

SERVICE BULLETIN. RATI'LE NOISE 47

Harman International Rev1, 05/2012
8500 Balboa Boulevard
Northridge, California 91329

Page 2

harman/kardon

Technical Specifications

HD 980/230 Service Manual

Signal Format
Sampling Frequency
D/A Conversion
Oversampling

Discrete Analog Output Section

Error Correction

Frequency Response

Total Harmonic Distortion (THD)
Dynamic Range
Signal-to-Noise Ratio

Channel Separation
Line-Output Level

General

Power Requirement
Power Consumption

Dimensions
Height
Width
Depth

Weight

32 kHz to 96 kHz

Multibit Sigma»Delta modulator

24-bit/I 76.4 kHz Sample Rate Convertor or
24-bit/96 kHz with HRS-Link, internal DAC.

CIRC System

20 Hz - 20 kHz +Ol-0.5 dB
<0,0009% @1 kHz

> 100 dB

> 110 dB

> 100 dB

2.0V

100-240V 50/60 Hz
<20 Watts (On)
<2 Watts (Standby)

63mm
440mm
332mm
3.8 kg

Depth measurement includes knobs, buttons and connection jacks.

Height measurement includes feet and chassis

All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark of Harman International Industries, Incorporated.

harman/kardon

H A Harman Internationalcompany

250 Crossways Park Drive, Woodbury, New Vork 11797
www.harmankardon.com

Harman Consumer Group, Inc:

2, route de Tours, 72500 ChateaquuVLoir, France

© 2008 Harman Kardon, Incorporated

Part 01.00.VS.SMI.EI798

Page 2 of 46
