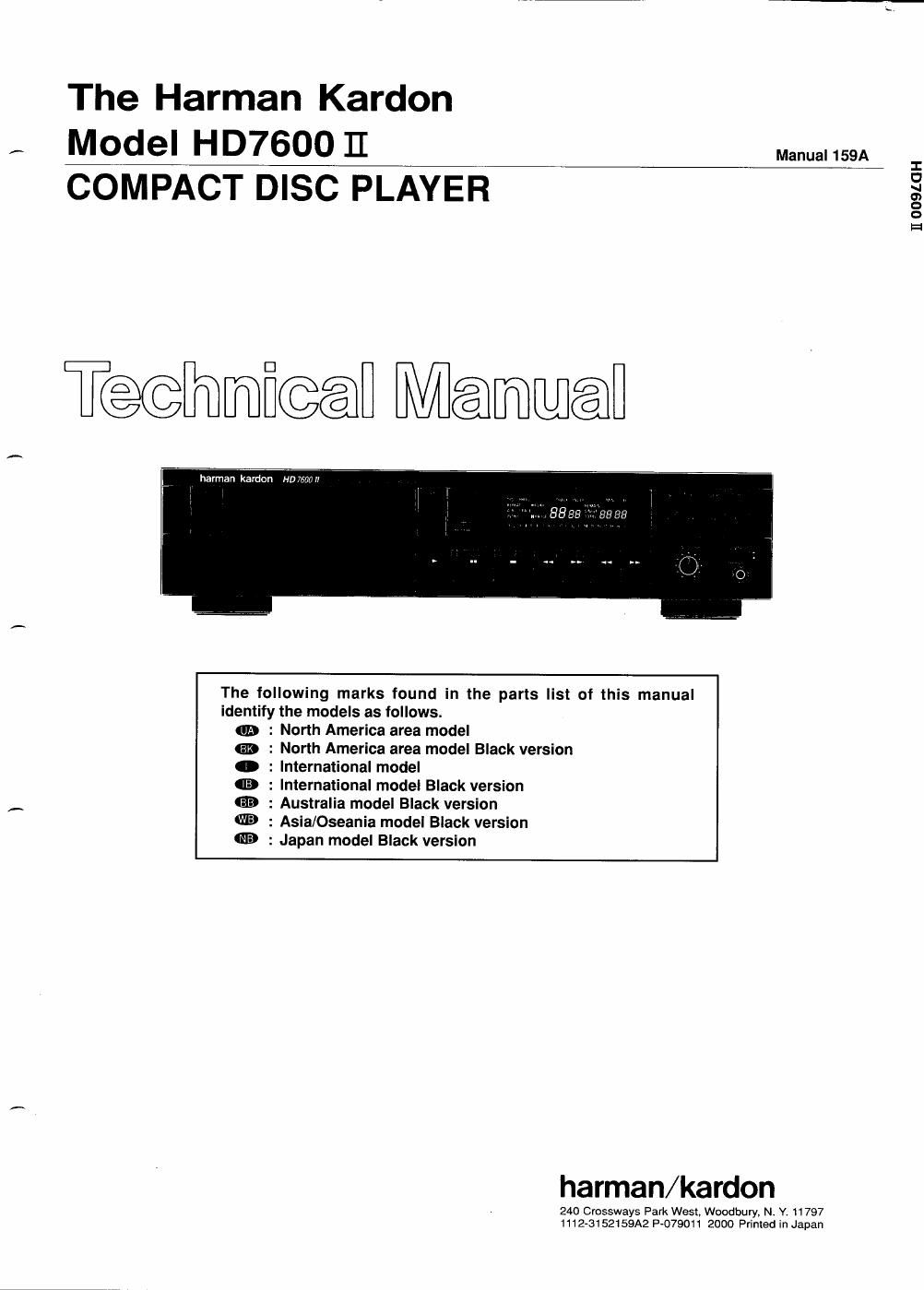

The Harman Kardon
MOdel HD7600 II: Manual159A

COMPACT DISC PLAYER

Temniceal Mamafl

barman kardon HD 7m! 1/

The following marks found in the parts list of this manual
identify the models as follows.

: North America area model

: North America area model Black version

: International model

: International model Black version

: Australia model Black version

: Asia/Oseania model Black version

%@@60%

: Japan model Black version

harman/kardon

240 Crossways Park Wesl, Woodbury, N. Y. 11797
1112-3152159A2 P079011 2000 Primed in Japan

I] OOQLGH

Page 2

HD7600 II

CLASS 1 LASER PRODUCT
Product complies with DHHS rules CFR subchapter J part
1040210 at date of manufacture.

DANGER-invisible laser radiation when open and inter-
lock failed or defeated. Avoid direct exposure to the
beam.

CAUTION-use of all controls, adjustments or perform-
ance of procedures other than those specified herein may

Be Careful of the Laser Pickup

Although you cannot see it from the outside, a laser
pickup is located under the disc tray and a precision lens
is built in it.

Since the laser pickup, including the lens element, is
especially sensitive to dust, keep the disc tray closed
when not in use. Also do not put your hand inside the
unit.

result in hazardous radiation exposure.

CLASS 1

LASER PRODUCT

ADVARSEL:

Usynlig laserstraling ved Abning nar
sikkerhedsaibrydere er ude at iunktion. Undga
udsaattelss tor stréling.

VAROITUS!
Laite sisaltaa laserdiodin, joka lahettaa nakymaténta
silmille vaarallista lasersateilya.

SPECIFICATION

System
D/A Convener

Signal Detection

Error Correction

Low Level Linearity
Frequency Response

Total Harmonic Distortion (THD)
Dynamic Range

Signal to Noise Ratio
Channel Separation

: Compact Disc Digital Audio
: Linear. Pulse Width

Modulated Bit Stream,
Clock Rate: 33.8688MH2
(33,868.8KH2)

: a-Beam Semiconductor

Optical Laser Pickup

: CIFtC System

: +/-0.2dB @-90dB

: 4H2 to 20kHz +0dB/-.5dB
:0.003%

I 98dB

: 106dB

: QGGB

Line Output Level/Impedance : 2.0V @ 10kt)

Adjustment of this unit requires following measuring

instruments and jigs.

. Oscilloscope (a or more modes, 100MHz, input Select DC

range) 1740A
. Test Disc: EIAJ CD4

Digital Output Level/Impedance

Coaxial : 0.5Vp-p @ 759
Optical :-18dBrn
Power Supply

USA. and Canada models
International, Australia and
Asia/Oseania models

: ACtZOV, SOHZ

: A0220/240V. 50/60Hz

Japan model : AC1ODV, 50/60Hz
Power Consumption : 20Watts
Dimensions : 17-3/ " x 4" x 14"
443mm x 103mm x 356 mm
Weight : 18.9lbs/8.6kg

Specifications and components subject to change without
notice.
Overall performance will be maintained or improved.
