Harman kardon hd 500 service manual

This is the 89 pages manual for harman kardon hd 500 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 89
harman kardon hd 500 service manual

Extracted text from harman kardon hd 500 service manual (Ocr-read)

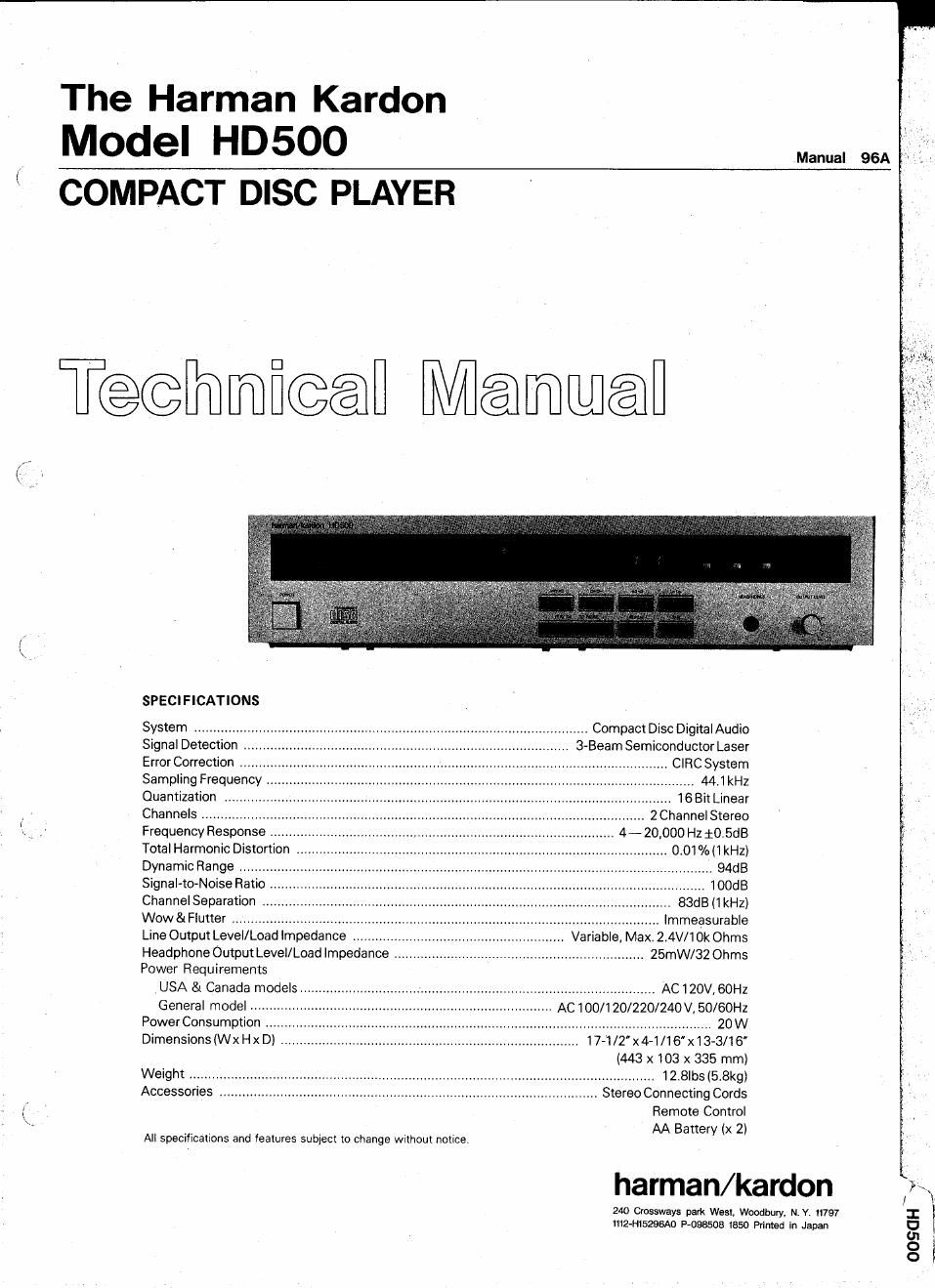

Page 1

/\

The Harman Kardon
MOdel HD5OO Manual 96A 0

COMPACT DISC PLAYER

Teoihmfioa amen

SPECIFICATIONS

System ........................................................................................................ Compact Disc Digital Audio
Signal Detection . 3-Beam Semiconductor Laser

Error Correction .. ClRCSystem
Sampling Frequency . 44.1 kHz
Quantization 16Bit Linear
Channels ..... 2 Channel Stereo


Frequency Response
Total Harmonic Distortion
Dynamic Range .....
Signal-to-Noise Ratio
Channel Separation
Wow & Flutter .......
Line Output Level/Load Impedance
Headphone Output Level/Load Impedance
Power Requirements

V USA at Canada models ..

General model ..
Power Consumption

4-20.000 Hz i0.5dB
0.01%i1kHz)

. 94GB
.. 100dB
83dB(lkHz)
lmmeasurable
Variable, Max 2.4V/10k0hms
.................... 25mW/32 Ohms

...... AC 120V, 60Hz

AC 100/1 20/220/240V, 50/60HZ
......................................... 20 W

Dimensions (Wx H x D) . ........................................ 17-1/2x4-1/16'xl3-3/16'

(443 x 103 x 335 mm)
Weight ................................................................................... 128le (5.8kg)
Accessories .............................................................. Stereo Connecting Cords

Remote Control

. . . AA Battery (x 2)
All specmcations and features subject to change without notice.

harman/kardon

240 Crossways park West, Woodbury, N.Y. "797
1112-H15296AD P-098508 1350 Prlmed in Japan

OOSGH fl

Page 2

TABLE OF CONTENTS

SAFETY PRECAUTIONS .................................................. 3
INSTRUCTIONS ...................................................... 5
BLOCK DIAGRAM .......................... . . 17
REMOVING THE CABINET ............................................... 18
DISASSEMBLING THE MECHANISM UNIT .................................... 19
ADJUSTMENT PROCEDURE ............................... . . . 20
TROUBLE SHOOTING ........................................... 30
IC BLOCK DIAGRAM ................................................... 39
GENERAL WIRING DIAGRAM ............................................ 43
SERVO PCB ASSY - Solder Side - 45
SERVO CIRCUIT DIAGRAM .............................................. 46
MAIN PCB ASSY - Solder Side - ........................................... 47
MAIN CIRCUIT DIAGRAM .......................................... 48
EXPLODED VIEW OF SET ........ 50
EXPLODED VIEW OF MECHANISM UNIT ..................................... 52
REPLACEMENT PARTS LIST ............................................. 53

£3
