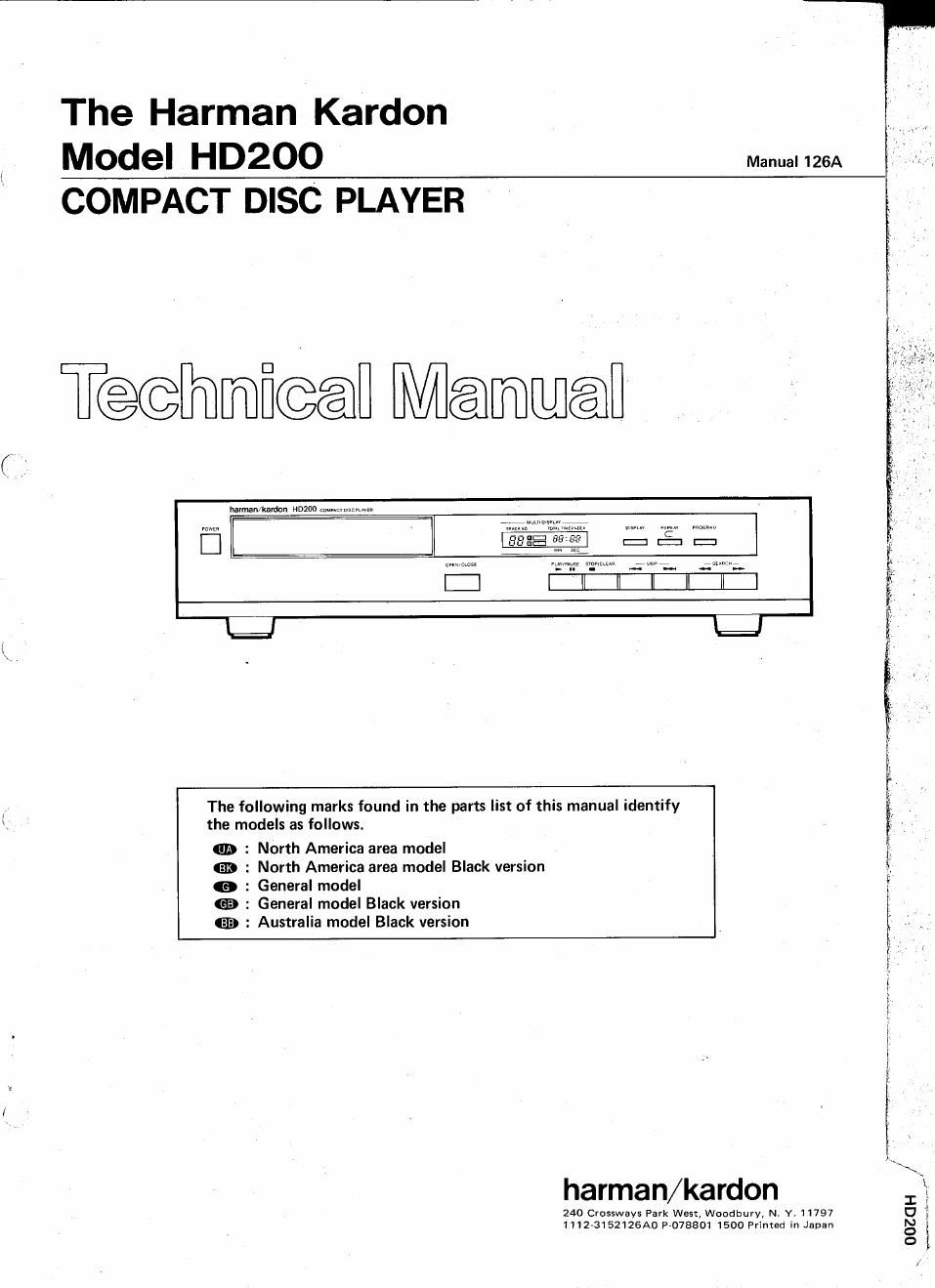

Harman kardon hd 200 service manual
This is the 58 pages manual for harman kardon hd 200 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hd 200 service manual (Ocr-read)
Page 2
HDZOO
CLASS 1 LASER PRODUCT
Product complies with DHHS rules CFR subchapter J part
1040:10 at date of manufacture.
DANGER-invisible laser radiation when open and inter»
lock failed or defeated. Avoid direct exposure to the
beam.
CAUTION-use of all controls, adjustments or perform-
ance of procedures other than those specified herein may
result in hazardous radiation exposure.
Be Careful of the Laser Pickup
Although you cannot see it from the outside, a laser
pickup is located under the disc tray and a precision lens
is built in it.
Since the laser pickup, including the lens element, is
especially sensitive to dust, keep the disc tray closed
when not in use. Also do not put your hand inside the
unit.
CLASS 1
LASER PRODUCT
SPECIFICATIONS
System
Signal Detection
Error Correction
Sampling Frequency
Quantization
Channels
Frequency Response
Total Harmonic Distortion
Dynamic Range
Signal-to-Noise Ratio
:Compact Disc Digital
Audio
:3-Beam Semiconductor
Laser
:CIRC System
.ZkHz
. 6-bit
:2 Channel Stereo
:4Hz-20kHz i0.5dB
20.03% l1kHz)
:96dB
:103dB
Adiustment of this unit requires following measuring
instruments and jigs.
.Oscilloscope (3 or more modes, 100MHz. X-Y input
possible) 1740A
ODistortion Meter 339A
OTest Disc:
EIAJ CD-l
:BSdB (1kHz)
:lmmeasurable
Channel Separation
Wow 8t Flutter
Line Output Level/Load
Impedance
Power Supply
U.S.A. and Canada models:AC 120V, 60Hz
General and Australia :AC 220/240V, 50/60Hz
models
Power Consumption
Dimensions (W x H x D)
:2.0Vl10k Ohms
:15 Watts
:17-3/8I x 3-3/4 x 10-1/8
(443 x 95 x 257 mm)
Weight 18.5le. (3.9kg)
Specifications and components subject to change without notice.
Overall performance will be maintained or improved.
IMPORTANT
Before plugging the unit in, be sure to remove the
transportation screws on the bottom of the unit.
1. Place a cloth under the unit in order to prevent if from
being scratched.
2. Turn the unit upside down.
3. Remove the three transportation screws with a screw
driver, as shown in the illustration below.
© 0
Q was
NOTE: Be sure to tighten screws by the reverse proce-
dure before transporting the unit.
