Extracted text from harman kardon fl 8350 service manual (Ocr-read)

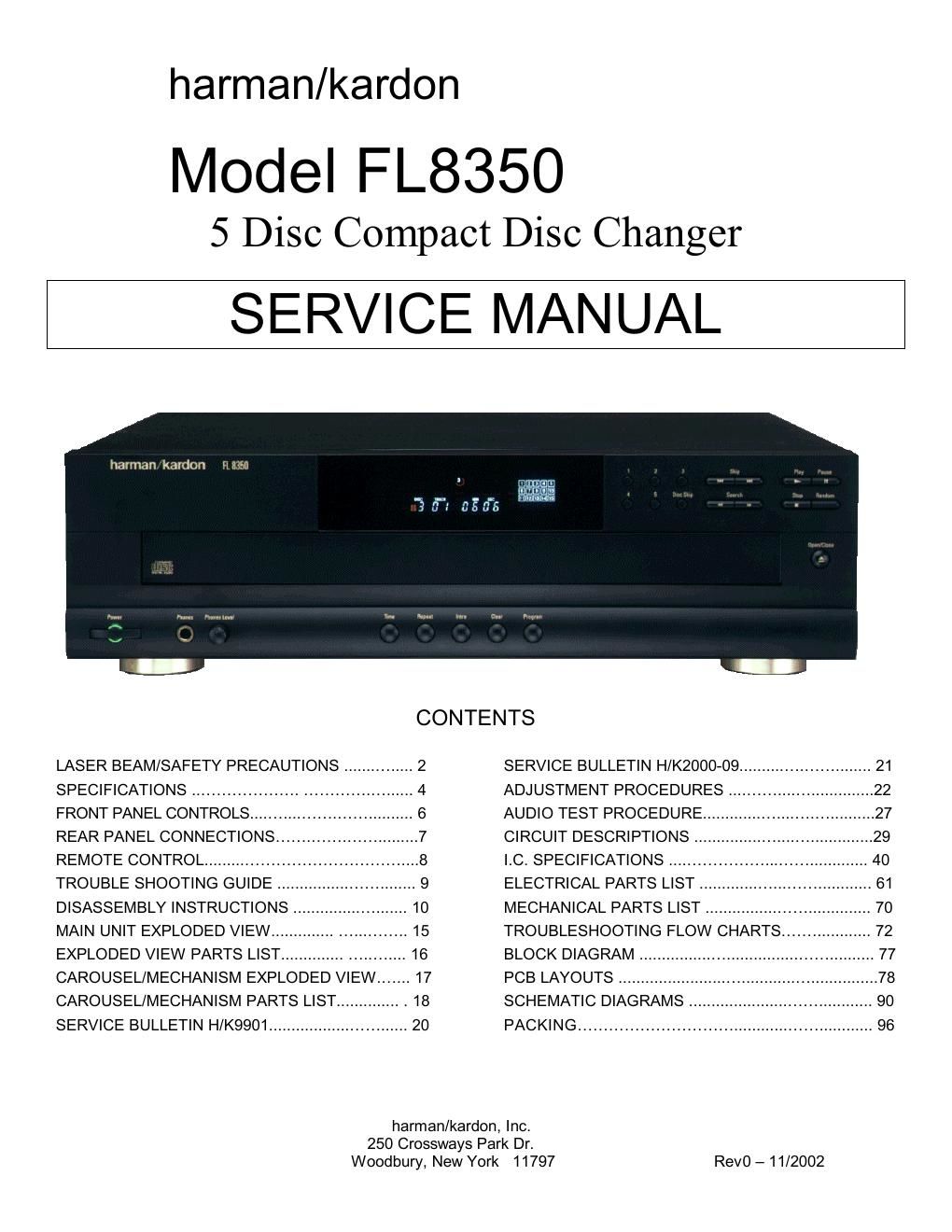

Page 1
harman/kardon
Model FL835O
5 Disc Compact Disc Changer
SERVICE MANUAL
harman Random 1')
CONTENTS
LASER BEAM/SAFETY PRECAUTIONS ....
SPECIFICATIONS .................................
FRONT PANEL CONTROLS .................................. 6
REAR PANEL CONNECTIONS ............................. 7
REMOTE CONTROL ........................................... 8
TROUBLE SHOOTING GUIDE .............................. 9
DISASSEMBLY INSTRUCTIONS 10
MAIN UNIT EXPLODED VIEW.............. 15
EXPLODED VIEW PARTS LIST .......................... 16
CAROUSEL/MECHANISM EXPLODED VIEW ....... 17
CAROUSEL/MECHANISM PARTS LIST .............. . 18
SERVICE BULLETIN H/K9901 .............................. 20
SERVICE BULLETIN H/K2000-09 ............................ 21
ADJUSTMENT PROCEDURES ............................... 22
AUDIO TEST PROCEDURE ..................................... 27
CIRCUIT DESCRIPTIONS ................................... 29
LC. SPECIFICATIONS ................................... 4O
ELECTRICAL PARTS LIST ............... 61
MECHANICAL PARTS LIST ........ .. 70
TROUBLESHOOTING FLOW CHARTS ................... 72
BLOCK DIAGRAM 77
PCB LAYOUTS ........ ....78
SCHEMATIC DIAGRAMS ........................................ 90
PACKING ............................................................ 96
harman/kardon, Inc.
250 Crossways Park Dr.
Woodbury, New York 11797
RevO - 11/2002
Page 2
LASER BEAM SAFETY PRECAUTIONS
CLASS 1 LASER PRODUCT
CAUTION
Invisible laser radiation when the unit is open.
ASS 1 SE" 9" Do not stare into beam.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENT, OR
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Do not look directly at the laser beam
coming from the pickup or allow it to
_ \] strike against your skin.
This compact disc player uses a pickup thatemits a laser beam. The laser beam is emitted from the
location shown in the figure. When checking the laserdiode, be sure to keep your eyes at least 1 footaway
from the pickup lens when the diode is turned on. Do not look directly atthe laser beam.
Pickup Lens
CAUTION:
Using controls and adjustment, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
