Page 1

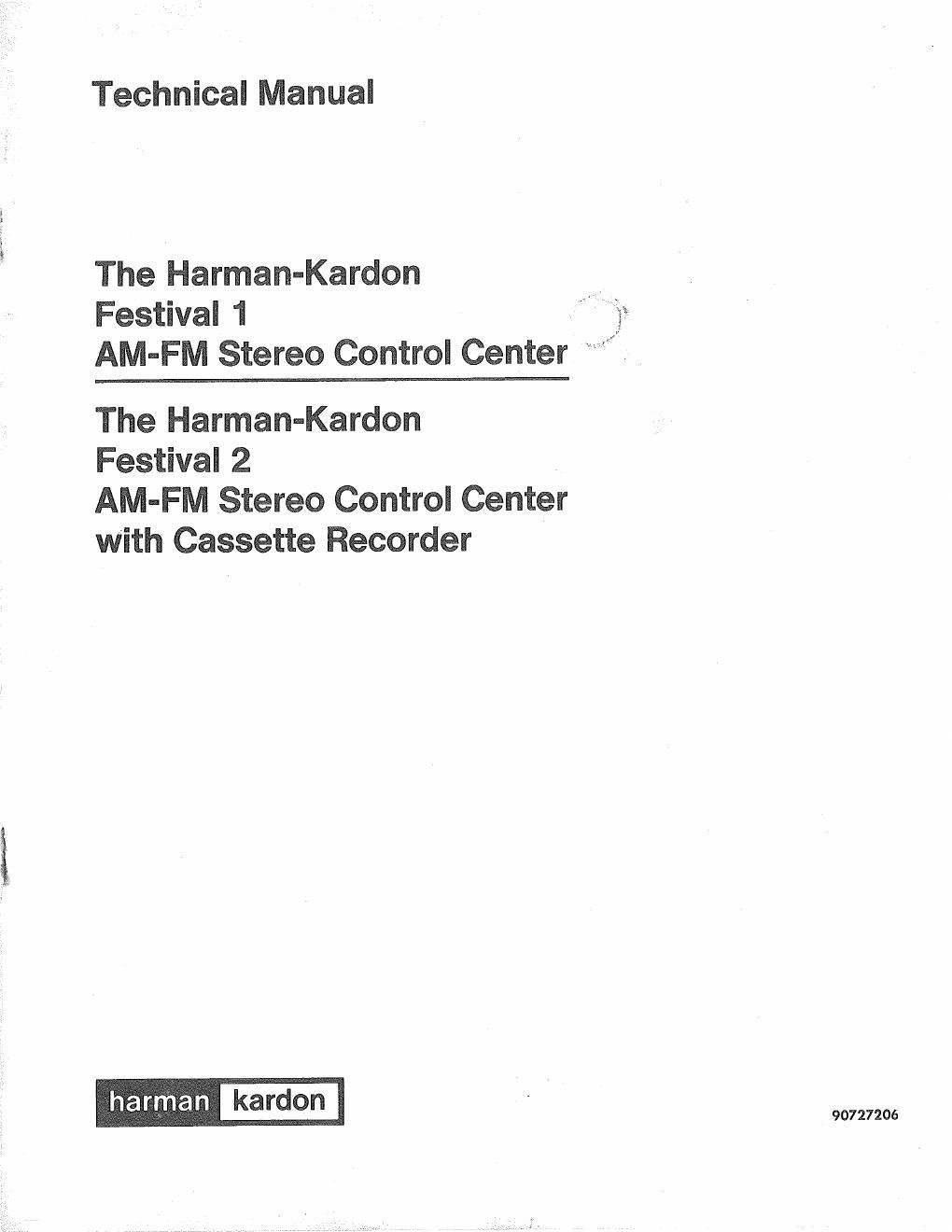

Technical Manual

The Harman-Kardon _
Festival 1 " -;
AM-FM Stereo Control Center

The Harman-Kardon

Festival 2

AM-FM Stereo Control Center
With Cassette Recorder

ha rma n m T 90727206

Page 2

DISASSEMBLY INSTRUCTIONS

TO REMOVE TOP HOUSING

Remove (5) hex hd. screws that hold top housing to the rear panel.

Remove (4) oh. hd. screws that hold top housing to bottom housing (located in the 4 round holes under the bot-
tom housing).

Gently pull upward on front skirt of top housing until adhesive tape and top tabs disengage from escutcheon.
Pull top housing straight up until disengaged from rear panel and escutcheon.

NOTE: It will be easier to remove top housing if the turntable is removed first.

TO REMOVE TURNTABLE

'Remove line cord from wall outlet.

Remove caution cover plate from rear panel, (held by 2 hex hd. screws) that covers an access hole to rear transit
screw on turntable.

Screw rear turntable transit screw as far down as it will go.

Reach into access hole until horizontal turntable clip is felt. Push this clip upward until it snaps into a vertical
position.

Tilt turntable upward from rear until rear transit screw is clear of top.

Turntable can now be removed by sliding it toward the rear of the cabinet until front transit screw comes thru
slotted transit hole in housing, and lifting upward.

SE RVICING ESCUTCHEON COMPONENTS

Certain mechanical components can not be removed and replaced without removing the escutcheon insert. The
insert ls removed by doing the followlng:
A) Remove all knobs except function switch knob.
B) Gently pry insert upward in different areas until it is free of adhesive tape holding it down.

(Avoid touching this tape so that it will still retain its holding power when re-assembling to escutcheon).
With the insert removed, the screws that hold the slide switch assembly are accessible. The hex nut holding the
record level control (festival 2) is also accessible.
All other components can be removed and replaced without removing the insert, but the escutcheon assembly has
to be disassembled from the bottom housing.

REMOVING THE ESCUTCHEON ASSY
The top housing should be removed first as per previous instructions.
There are two hex nuts that hold the escutcheon assy to the housing. They are located in access holes in the bot-
tom of the housing. After these nuts are removed the escutcheon assy can- be tipped backward until the front
skirt is free of the front slot in the housing. It can now be lifted off the support bosses.

CAUTION: This panel is connected to the main unit by wires and cables - do not break connections.

When re-assembling be sure all wires are free and cannot be pinched.
