Harman kardon ep 720 owners manual
This is the 5 pages manual for harman kardon ep 720 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon ep 720 owners manual (Ocr-read)

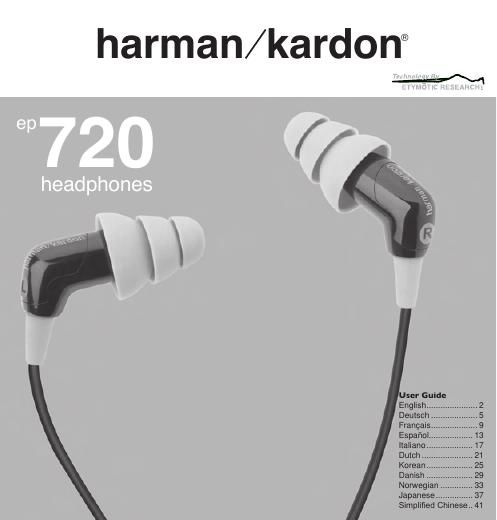

Page 1
Package Contents 1. EP 720 Earphones 2. Flange ear tips (one pair)3. Foam ear tips (one pair)4. Replacement filters 1 pair5. Filter-changing tool6. Carr ying case 2. 3. 4. 5. 6. 1. Safety InstructionsHeadphone/earphone listening at high volume levels may cause permanent damage to your hearing. Always set the volume control to the lowest level before switching to dif ferent sources (tuner, CD player, MP3 player, etc.) or before plugging in the headphones/earphones. For your safety, do not use headphones/earphones while driving or cycling. Earphone Removal- To avoid discomfor t, use a slow twisting motion to gradually break the seal. - Open the jaw slightly to equalize pressure, because suction can occur when the ear tip is removed. Headphone Regulator y RequirementsU.S., Europe (+TUV ), UK, Japan, China, Singapore, Taiwan, Mexico, Korea, Australia, New Zealand Headphone Language RequirementsEnglish, French, Spanish, German, Korean, Chinese, Japanese, Nor wegian, Dutch, Danish, Italian WelcomeThank you for purchasing the Harman Kardon ® EP 720 noise-isolation earphone system. This sy stem has been designed to meet Harman Kardons highest audio-per formance standards. The Harman Kardon EP 720 will meet all your listening and travel needs, and enable you to immerse yourself in your favorite music, wherever you are. IntroductionAcoustically advanced Harman Kardon 700 Series earphones deliver clear, accurate sound from any por table music or DVD player. Their lightweight, in-ear design blocks out ambient noise better than many bulk y batter y-powered sound-canceling headphones. You can enjoy the full dynamic range of your favorite music and movies without cranking up the volume to unnatural – or even unsafe – listening levels.
Page 2
Dimensional Layout 1. 2. 3. 1500 mm25 mm 1143 mm 340 mm Construction Technical SpecificationManufacturer: Harman Consumer Group, Inc. Model: EP 720 Available in: Black or White Input Requirement: Main connection – 3.5mm mini stereo jack Max Power Input: 16 mW Dimensions: Wire length – 150cm Compatibility: All audio output devices with a 3.5mm or stereo phono audio jack Sensitivity (@ 1kHz): 105dB SPL for a 0.1V RMS input Maximum Output: 120dB SPL Impedance: 16 ohms (nominal) Noise Isolation: 35 dB (three-flange ear tip deeply seated) Frequency Response: 20Hz ~ 15kHz Weight: 13.2 Grams (1.5m cable included) 1. 3.5mm Stereo input plug 2. Shirt clip 3. Earphon e 1. 2. 3. 1500 mm25 mm 1143 mm 340 mm
