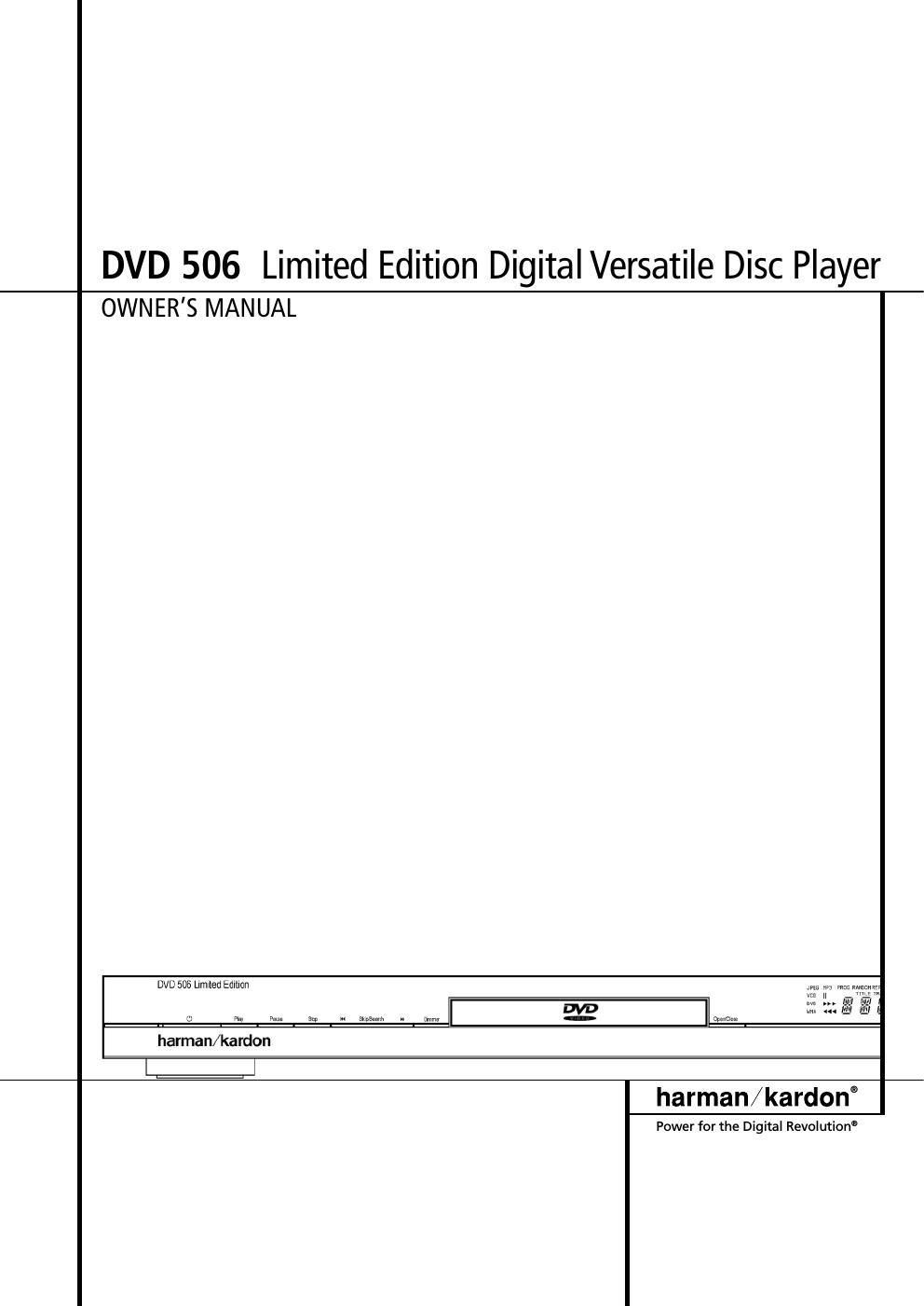

Harman kardon dvd 506 owners manual
This is the 22 pages manual for harman kardon dvd 506 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon dvd 506 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3 Introduction 4 Terminology 5 Features, Packing List 6 Front Panel Controls 7 Front Panel Information Display 8 Remote Control 10 Rear Panel Connections 11 Setup and Connections 11 to a Stereo TV and Stereo or Pro Logic Amplifier/Receiver 12 to a Dolby Digital/DTS Amplifier/Receiver 13 to a TV or monitor with SCART or Component Connectors 14 Remote Control 15 Digital Audio Connections 16 Playback Basics 16 Basic Play 16 Playback Features 17 System Set-up 17 System Settings 18 Audio Settings 18 Video Settings 19 Using the Status Bar 19 Player Menu 19 Information Displays 19 Programmed Play 20 DVD Language Codes 21 Specifications Table of Contents 2 NOTE:This player is designed and manufac- tured for compatibility with Region Management Information that is encoded on most DVD discs. This player is designed only forplayback of discs with Region Code 2, or for discs that do not contain Region Code infor- mation. If there is any other Region Code on a disc, that disc will not play on the DVD. Declaration of Conformity We, Harman Consumer International 2, Route de Tours 72500 Château-du-Loir, FRANCE declare in own responsibility, that the product described in this owners manual is in compliance with technical standards: EN 60 065:1993 EN 55 013/A12/8.1994 EN 55 020/12.1994 EN 61000-3-2/4.1995 EN 61000-3-3/1.1995 Carsten Olesen Harman Kardon Europe 10/03
Page 2
INTRODUCTION 3 Introduction Thank you for choosing the Harman Kardon DVD.The DVD is a multipurpose DVD player, capable of playing both DVD-Video discs and conventional CD audio discs with the highest fidelity and access to future software upgrades via the Internet. Along with conventional DVD- Video and CD audio discs, the DVD is also com- patible with MP3, WMA, JPEG and most record- able CD and DVD formats as well as VCD discs. To enable you to get the maximum quality from DVDs, the DVD is equipped with the latest in design techniques, including advanced 10-bit video digital-to-analog converters (DAC) and Video (composite), S-Video and RGB video (RGB via SCART) outputs, to ensure that you get all the quality inherent in todays DVD medium. For opti- mum playback of NTSC and PAL DVD with com- patible high-definition display devices, DVD is equipped with progressive component video out- puts. In addition, Harman Kardons audio heritage continues into the digital video era with audio- phile-grade Wolfson DACs to ensure that the audio quality matches the superb video. Of course, both coaxial and optical digital audio outputs are available for direct connection to A/V receivers or processors so that you may take advantage of Dolby Digital* and DTS ®sound- tracks. When playing audio CDs, the playback quality is state-of-the-art, matching that of the finest players available.A wide range of programming features makes it easy to program an evenings worth of entertain- ment. When playing DVDs, easy-to-understand on-screen menus and icons make it simple to change languages, soundtracks, subtitles or aspect ratio, while a parental-lock function enables you to control which discs may be viewed by younger members of the household. DVD players are among the fastest growing con- sumer electronics products ever brought to mar- ket, but this may, nevertheless, be the first DVD player youve owned. Although many of the fea- tures of the DVD resemble those of standard CD players, there are a number of functions that you may be unfamiliar with. To ensure that you are able to take advantage of all the power and flex- ibility the DVD has to offer, we encourage you to review this quick setup manual. That small investment of your time will pay major dividends in the enjoyment you will get from proper use of the DVD.Plays a Wide Range of Video and Audio Formats, Including DVD-Video Discs, VCD, Standard CD Audio Discs, CD-R/RW, DVD-R/RW, DVD-+R/RW, Audio Discs and MP3 Discs High-Quality Video Playback 10-Bit DACs, Progressive Scan and Component Video Outputs Dolby Digital and DTS Data Signal Output Through Both Optical and Coaxial Digital Audio Connections Audiophile-Grade Wolfson Output DACs for the Finest Audio reproduction Easy-to-Use On-Screen Navigation System Playback of MP3 and Windows ®WMA Audio Discs and JPEG image files Simultaneous Playback of MP3 and JPEG files Extensive Programming Capability for Audio and Video Discs Parental Lock Controls Prevent Unauthorized Viewing of Restricted Movies Multiple Options for Language, Soundtrack and Subtitle Selection Multiple-Angle Capabilities With Specially Encoded DVD Discs Backlit, Ergonomically Designed Remote Control
