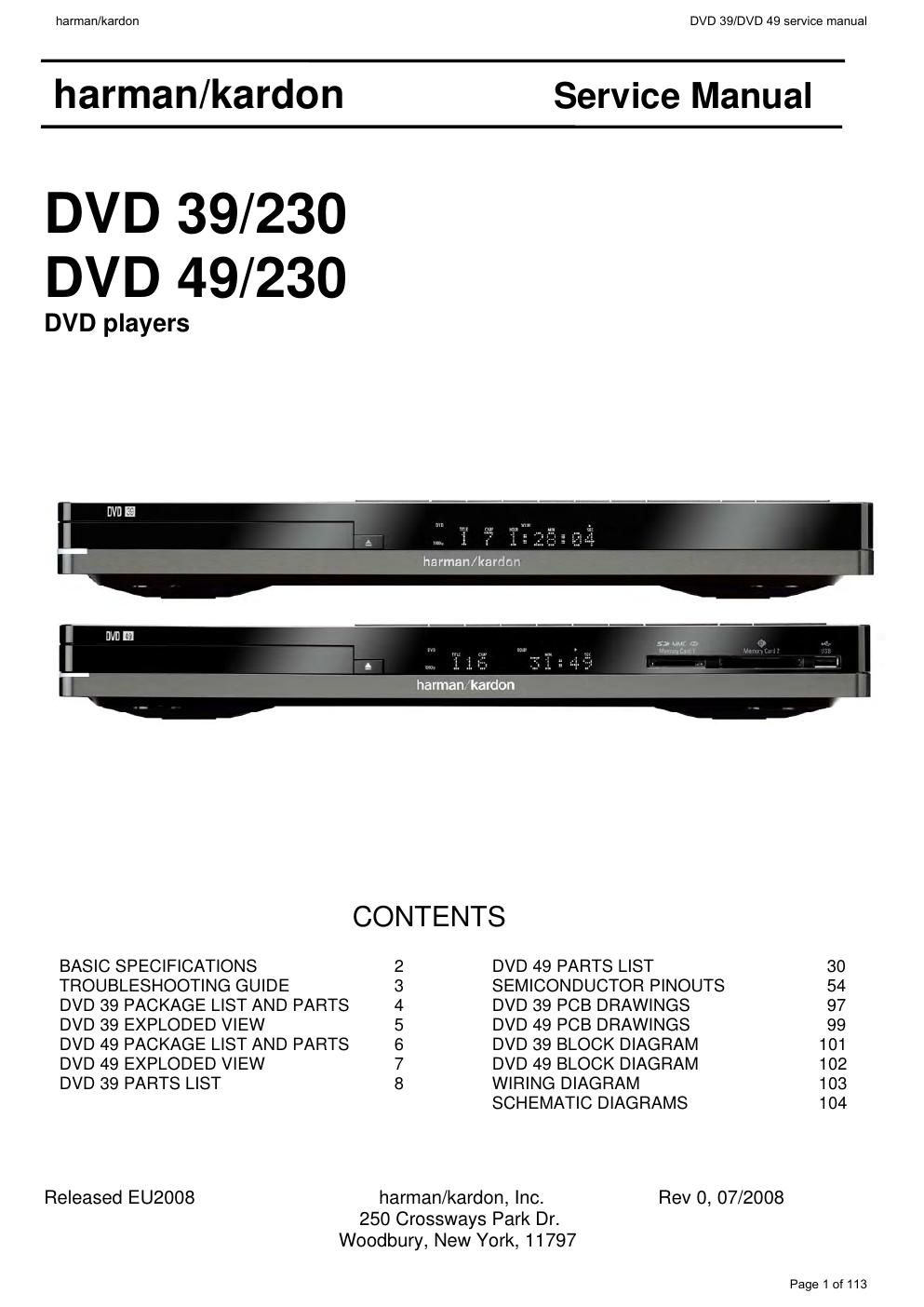

Page 1

harman/kardon DVD 39/DVD 49 service manual

harman/kardon Service Manual

DVD 39/230
DVD 49/230

DVD players

harman/kardan

harmen/kardon

CONTE NTS

BASIC SPECIFICATIONS 2 DVD 49 PARTS LIST 30
TROUBLESHOOTING GUIDE 3 SEMICONDUCTOR PINOUTS 54
DVD 39 PACKAGE LIST AND PARTS 4 DVD 39 PCB DRAWINGS 97
DVD 39 EXPLODED VIEW 5 DVD 49 PCB DRAWINGS 99
DVD 49 PACKAGE LIST AND PARTS 6 DVD 39 BLOCK DIAGRAM 101
DVD 49 EXPLODED VIEW 7 DVD 49 BLOCK DIAGRAM 102
DVD 39 PARTS LIST 8 WIRING DIAGRAM 103

SCHEMATIC DIAGRAMS 104

Released EU2008 harman/kardon, Inc. Rev 0, 07/2008

250 Crossways Park Dr.
Woodbury, New York, 11797

Page1of113

Page 2

osOOllCSK - DVD 49 & 39 DVD Player OM UK v87FILM.qxp:0011CSK/Ifi DVD 49 & 39 DVD Player OM UK 29/02/08 03.00 Side 33 (Strt/Blac
\

harman/kardon

Technical Specifications

DVD 39/DVD 49 service manual

Applicable Disc:

Memory cards (DVD 49 only):

USB Port (DVD 49 only):
Video Signal System:
HDMI Output:

Composite Video Output:
S Video Output:

Component Video Output:

Analog Audio Output:
Frequency Response:

Signal/Noise Ratio (SNR):
Dynamic Range:

THD/1 kHz:

Wow & Flutter:

AC Power:

Power Consumption:
Dimensions (WxHxD):
Weight:

Disc formats: 5 inch (12 cm) or 3 inch (8 cm) DVD Video, DVD-Audio, SACD (DVD 49 only),Standard conforming
DVD+RW, DVD+R, DVD-R, DVD-RW, DivX, VCD, CD, CD-R, MP3, WMA, JPEG or CD»RW discs,

Region code: DVD Movie disc with Code 2 or 0 only.

DVD-Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer

Audio formats: DVD-Audio MLP lossless, Linear PCM, MPEG, Windows Media® 9,

Dolby Digital or DTS Audio discs
Still-image format: JPEG

Slot 1: Secure Digital (SD), Multimedia Card (MMC) and Memory Stick (compatible with Magic Gate) cards. Other card
types may be used with a compatible adapter, but are not guaranteed to be recognized by the DVD 49 Slot 2: Compact
Flash I (CF) cards, or cards using a Compact Flash 1-compatible adapter Card Capacity: Up to 1 GB

Up to USB 2.0-compatible solid-state flash drives
PAL/NTSC

Video: 576p, 720p, 1080i, 1080p
HDMI Version 1.2a»compliant
HDCP Version 1.1-compliant

1 Vprp/75 Ohms, sync negative polarity

Y/Luminance: I Vprp/75 Ohms, sync negative polarity
C/Chrominance: 0.286 Vprp

Y: 1 Vprp/75 Ohms, sync negative polarity
Cr: 0.7 Vprp/75 Ohms
Cb: 0.7 Vprp/75 Ohms

2 Vrms max

DVD (Linear PCM): 2Hz - 22kHz (48kHz sampling)
ZHz - 44kHz (96kHz sampling)

CD: 2Hz - 20kHz

105 dB (A»weighted)

DVD: 100dB (18 Bit)/ 105dB (20 Bit)
CD/DVD: 96dB (16 Bit)

DVD/CD: 0.0025 %

Below Measurable Limits

100 - 240 V/50 ~ 60 Hz

1 Watts (Standby)/25 Watts (Max)
440 x 50 x 385 mm

4.0 kg

ENGLISH

Depth measurement includes knobs and connectors.

Height measurement includes feet and chassis.

All specifications subject to change without notice.

Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
Designed to Entertain and Guide+Play are trademark of Harman International Industries, Incorporated.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Digital, ProLogic and the double-D symbol are trademarks of

Dolby Laboratories.

Manufactured under license under US. Patent #: 5,451,942 & other US. and worldwide patents issued 84 pending. DTS and DTS Digital Out are registered
trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

Microsoft, Windows and WMA are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Kodak is a registered trademark, and Photo CD is a trademark, of Eastman Kodak Company.

DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are used under license.

Memory Stick, MagicGate, Memory Stick Duo and SACD are trademarks or registered trademarks of Sony Corporation.

CompactFlash is a trademark of the CompactFlash Association.

Guide + Play is a trademark of Harman International Industries, Incorporated.

The SD logo is a trademark. This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other
Intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.

Page20f113
