Harman kardon dvd 29 230

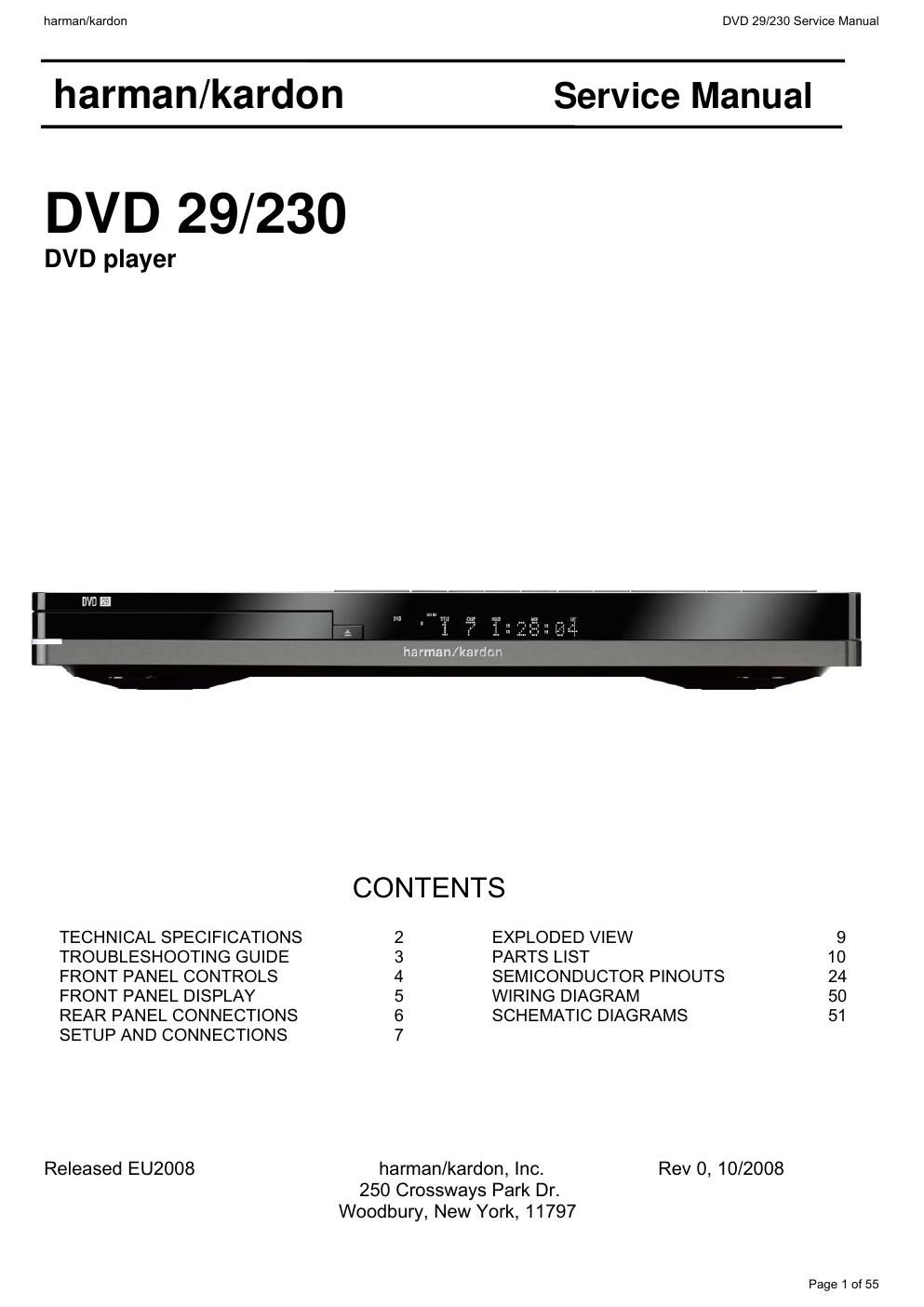

This is the 55 pages manual for harman kardon dvd 29 230.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon dvd 29 230 (Ocr-read)
Page 1
ENGLISH Technical Specifications Applicable Disc:Disc formats: 5 inch (12 cm) or 3 inch (8 cm) DVD Video, DVD-Audio, Standard conforming DVD+RW, DVD+R, DVD-R, DVD-RW, DivX, VCD, CD, CD-R, MP3, WMA, JPEG or CD-RW discs, Regio code: DVD Movie disc with Code 2 or 0 only. DVD-Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer Audio formats: DVD-Audio MLP lossless, Linear PCM, MPEG, Windows Media ®9, Dolby Digital or DTS Audio discs Still-image format: JPEG Video Signal System: PAL /NTSC HDMI ™Output: Video: 576p, 720p, 1080i HDMI Version 1.0-compliant HDCP Version 1.1-compliant Composite Video Output: 1 V p-p/75 Ohms, sync negative polarity S Video Output: Y/Luminance: 1 V p-p/75 Ohms, sync negative polarity C/Chrominance: 0.286 V p-p Component Video Output: Y: 1 V p-p/75 Ohms, sync negative polarity Cr: 0.7 V p-p/75 Ohms Cb: 0.7 V p-p/75 Ohms Analog Audio Output: 2 Vrms max Frequency Response: DVD (Linear PCM): 2Hz - 22kHz (48kHz sampling) 2Hz - 44kHz (96kHz sampling) CD: 2Hz - 20kHz Signal/Noise Ratio (SNR): 105 dB (A-weighted) Dynamic Range: DVD: 100dB (18 Bit) / 105dB (20 Bit) CD/DVD: 96dB (16 Bit) THD/1kHz: DVD/CD: 0.0025 % Wow & Flutter: Below Measurable Limits AC Power: 100 - 240 V/50 ~ 60 Hz Power Consumption: 1 Watts (Standby) /13 Watts (Max) Dimensions (WxHxD): 440 x 50 x 285 mm Weight: 4.0 kg Depth measurement includes knobs and connectors. Height measurement includes feet and chassis. All specifications subject to change without notice. Harman Kardon and Harman International are registered trademarks of Harman International Industries, Incorporated. Manufactured under license from Dolby Laboratories. Dolby, Dolby Digital, ProLogic and the double-D symbol are trademarks of Dolby Laboratories. Confidential. Unpublished Work. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. Al l Rights Reserved. Microsoft, Windows and WMA are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or o ther countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are used under license. This product incorporates copyright protection technology that is protected by method claims \ of certain U.S. patents and other i ntellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macr ovision Corporation and is intended for home and other limited viewing uses only unless otherwis\ e authorized by Macrovision Corporation. Reverse enginee ring or diassembly is prohibited. 33908_DVD29_ENG 18/07/07 16:43 Side 27 harman/kardon DVD 29/230 Service Manual Page 2 of 55
