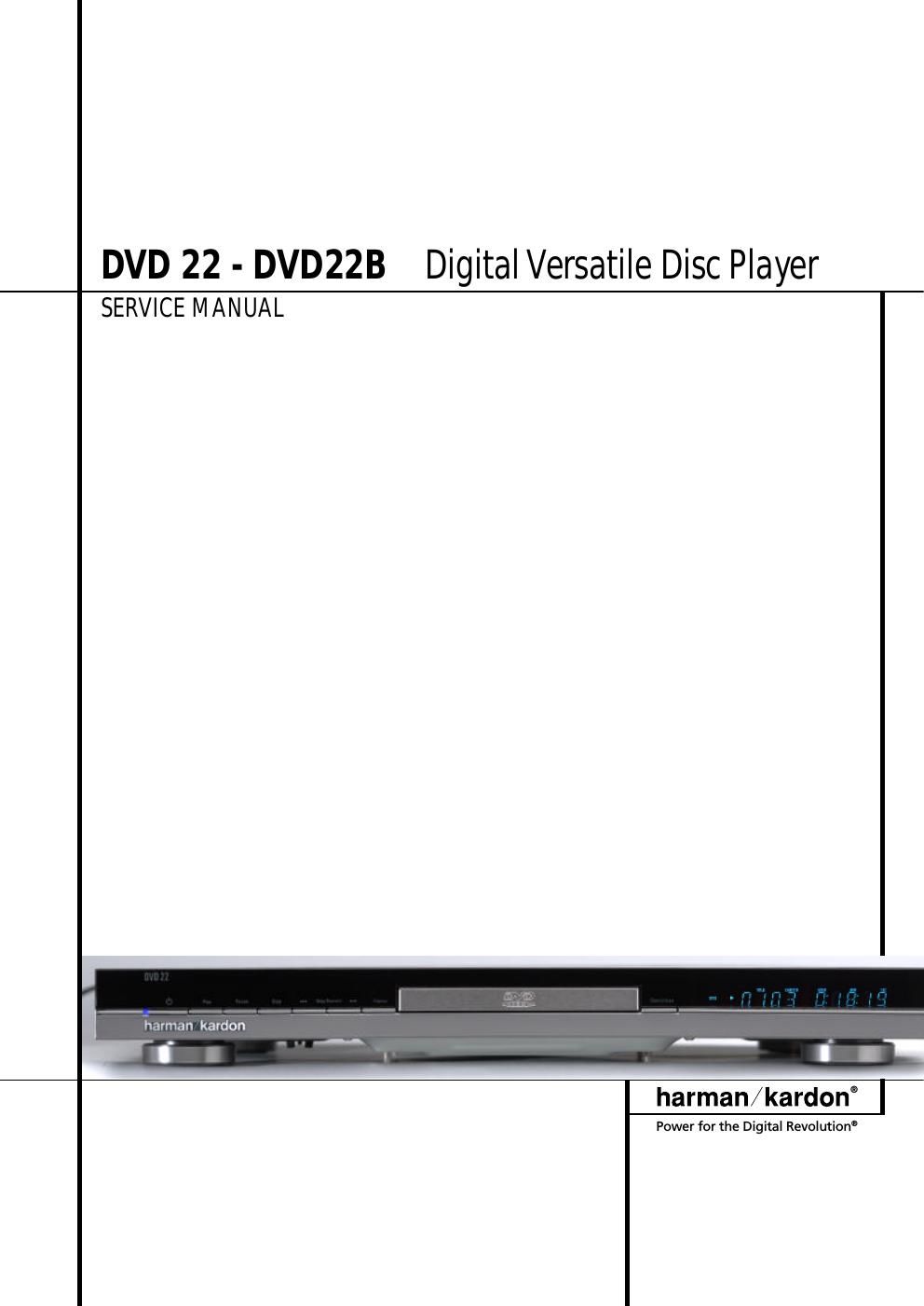

Harman kardon dvd 22 service manual

Page 2

Introduction

Kardon DVD. The DVD is a multipurpose DVD
player, capable of playing both DVD-Video discs
and conventional CD audio discs with the highest
fidelity and access to future software upgrades
via the Internet. Along with conventional DVD-
Video and CD audio discs, the DVD is also com-
patible with MP3, WMA, JPEG and most record-
able CD and DVD formats as well as VCD discs

To enable you to get the maximum quality from
DVDs, the DVD is equipped with the latest in
design techniques, including advanced 10-bit
video digital-to-analog converters (DAC) and
Video (composite), S-Video and R63 video (RGB
via SCART) outputs, to ensure that you get all the
quality inherent In today's DVD medium For opti-
mum playback of NTSC and PAL DVD with com-
patible high-definition display devices, DVD is
equipped with progressive component video out-
puts.

In addition, Harman Kardon's audio heritage
continues into the digital video era with audio-
phile»grade Wolfson DACs to ensure that the
audio quality matches the superb video. Of
course, both coaxial and optical digital audio
outputs are available for direct connection to A/V
receivers or processors so that you may take
advantage of Dolby Digital* and DTS® sound-
tracks When playing audio CDs, the playback
quality is state-of-the-art, matching that of the
finest players available.

A wide range of programming features makes it

easy to program an evening's worth of entertain-

ment. When playing DVDs, easy-to-understand
on-screen menus and icons make it simple to
change languages, soundtracks, subtitles or
aspect ratio, while a parental-lock function
enables you to control which discs may be
viewed by younger members of the household.

DVD players are among the fastest growing con-
sumer electronics products ever brought to mar-
ket, but this may, nevertheless, be the first DVD

player you've owned. Although many of the fea-
tures of the DVD resemble those of standard CD
players, there are a number of functions that you
may be unfamiliar with. To ensure that you are

able to take advantage of all the power and flex-

ibility the DVD has to offer, we encourage you to
review this quick setup manual. That small
investment of your time will pay major dividends
in the enjoyment you will get from proper use of
the DVD.

I Plays a Wide Range of Video and Audio
Formats, Including DVD-Video Discs,
VCD, Standard CD Audio Discs, CD-RIRW,
DVD-R/RW, DVD-+RlRW,Audio Discs and
M P3 Discs

l High-Quality Video Playback 10-Bit
DACs, Progressive Scan and Component
Video Outputs

l Dolby Digital and DTS Data Signal
Output Through Both Optical and
Coaxial Digital Audio Connections

l Audiophile-Grade Wolfson Output DACs
for the Finest Audio reproduction

l Easy-to-Use On-Screen Navigation
System

I Playback of MP3 and Windows® WMA
Audio Discs and JPEG image files

I Simultaneous Playback of M P3 and JPEG
files

I Extensive Programming Capability for
Audio and Video Discs

l Parental Lock Controls Prevent
Unauthorized Viewing of Restricted
Movies

I Multiple Options for Language,
Soundtrack and Subtitle Selection

l M ultipIe-Angle Capabilities With
Specially Encoded DVD Discs

l Backlit, Ergonomically Designed Remote
Control

INTRODUCTION
