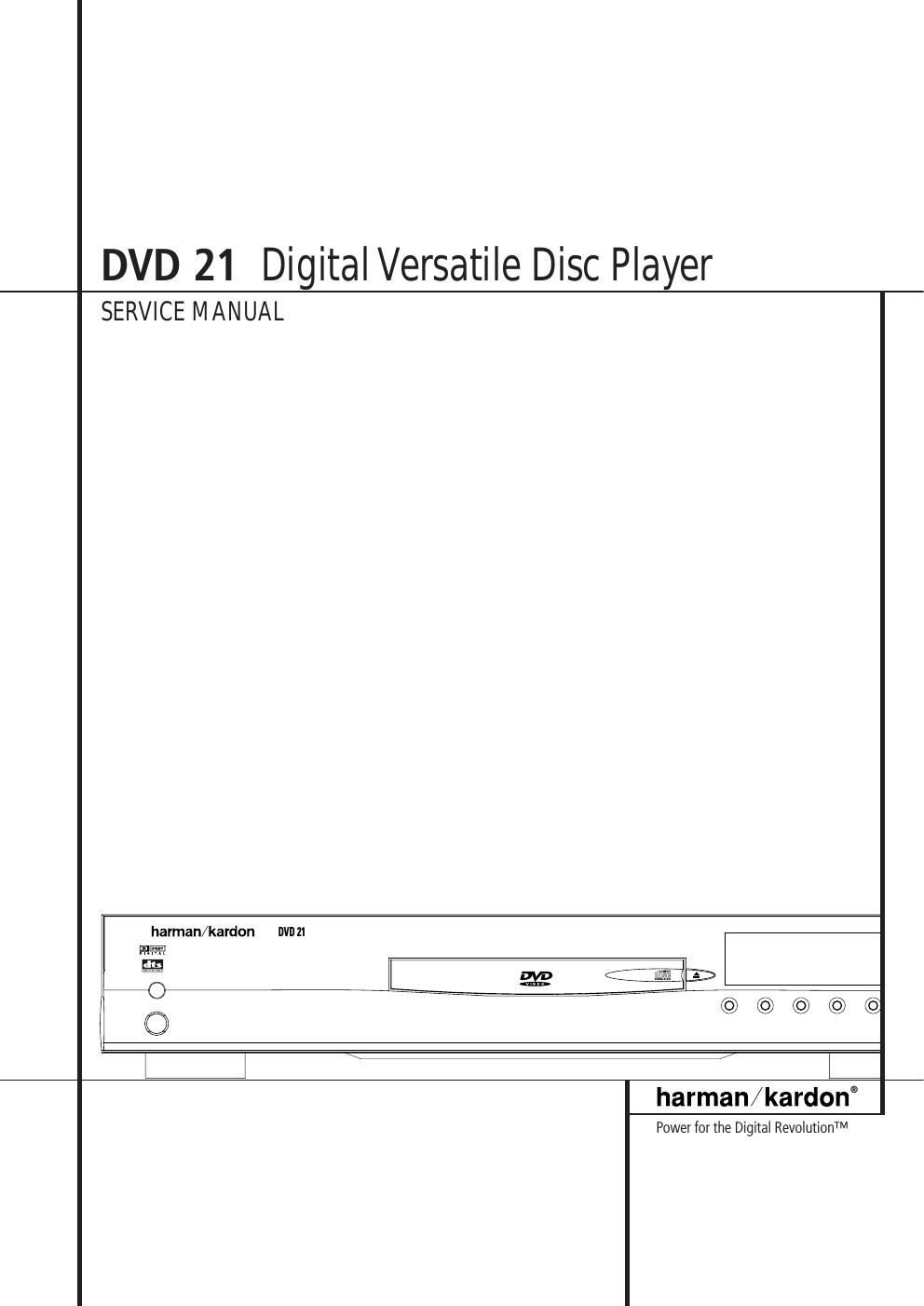

Page 1

DVD 21 Digital Versatile Disc Player

SERVICE MANUAL
harman/kardon M121
1391-!-
Q
Q 7 © © © @ cg

harman/kardon®

Power for the Digital RevolutionTM

Page 2

Technical Specifications

Applicable Disc:

Video Signal System:

Composite Video Output:

S Video Output:

Analog Audio Output:
Frequency Response:

Signal/Noise Ratio (SNR):

Dynamic Range:

THD/1 kHz:

Wow & Flutter:

AC Power:

Power Consumption:
Dimensions (WxHxD):
Weight:

Disc formats: 5 inch (12 cm) or 3 inch (8 cm) DVD»M0vie, Standard conforming DVD+RW, DVD+R, DVD-R and DVD-RW,

VCD, CD, CD-R, MP3 or CD»RW discs,
Regio code: DVD Movie disc with Code 2 or 0 only.

DVD-Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer

Audio formats: Linear PCM, MPEG, Dolby Digital or DTS
PAL/NTSC
1 V p-p/75 Ohms, sync negative polarity

I/Luminance: 1 V p-p/75 Ohms, sync negative polarity
C/Chrominance: 0.286 V pp

2Vrms max

DVD (Linear PCM): 2 Hz - 22 kHz +0/-0.5 dB (48 kHz sampling)
2 Hz - 44 kHz +0/-0.5 dB (96 kHz sampling)
CD: 2 Hz - 20 kHz +0/-0.5 dB

113 dB (A-weighted)
DVD: 100 dB (18 Bit) / 105 dB (20 Bit)
CD/DVD: 96 dB (16 Bit)

DVD/CD: 0.0025 %

Below Measurable Limits
110- Z4OV/ 50-60 Hz

12 Watts (On)/20 Watts (Max)
440 x 87 x 305 mm

7 Kg

Depth measurement includes knobs and connectors.

Height measurement includes feet and chassis.

All specifications subject to change without notice.

Harman Kardon and Power for the digital revolution are trademarks of Harman Kardon, Inc.
Manufactured under license from Dolby Laboratories. Dolby, AC-3, ProLogic and the double-D symbol are trademarks of Dolby Laboratories. Confidential.
Unpublished Work. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.
DTS is a trade mark of Digital Theater Systems, Inc.

This product incorporates copyright protection technology that is protected by method claims oi certain US. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or diassembly is

prohibited.

TECHNICAL SPECIFICATIONS
