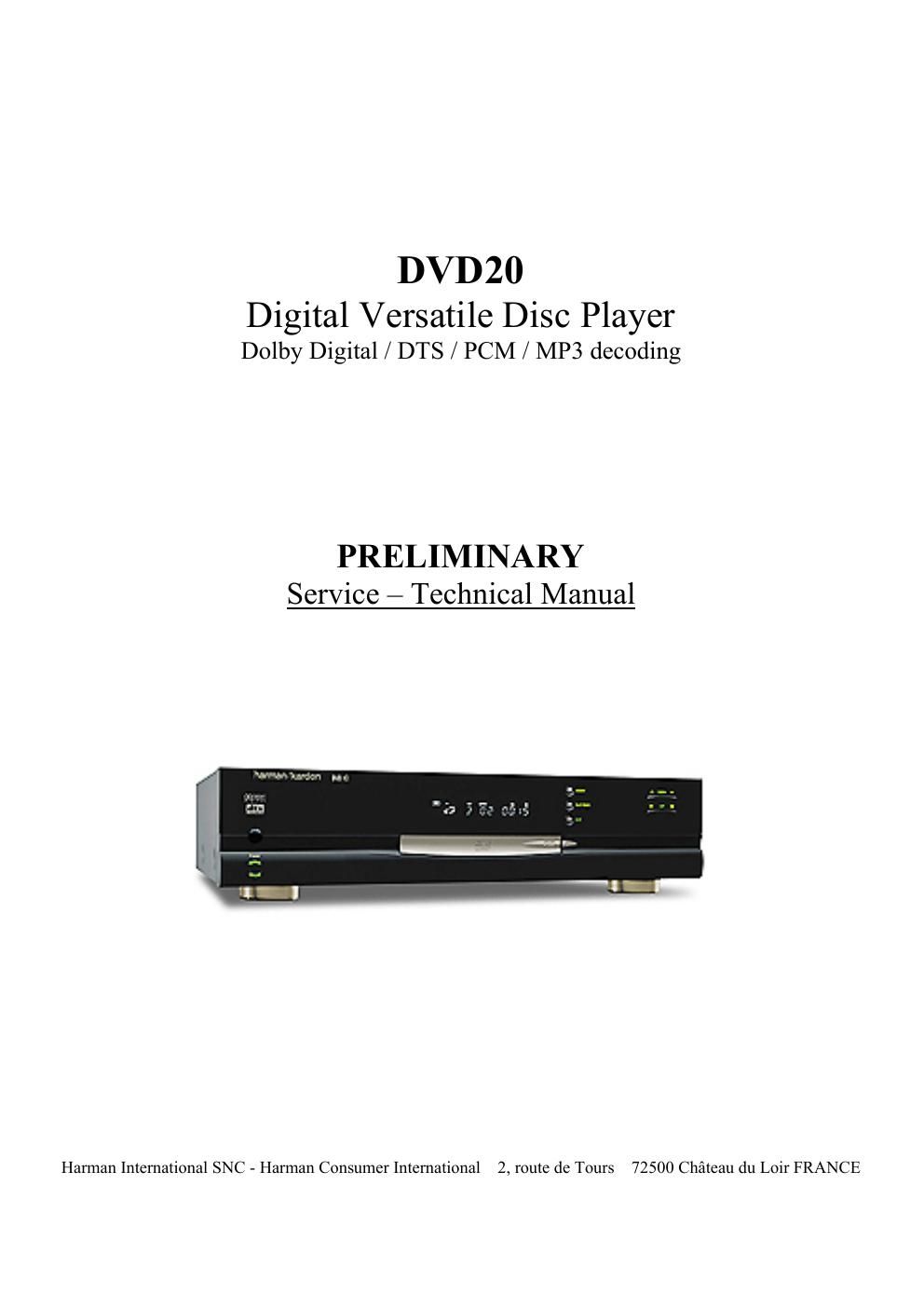

Harman kardon dvd 20
This is the 38 pages manual for harman kardon dvd 20.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon dvd 20 (Ocr-read)
Page 1
TECHNICAL SPECIFICATIONS 35 Technical Specifications Applicable Disc:5 inch (12 cm) or 3 inch (8 cm) DVD-Movie, VCD, CD-i, CD, CD-R or CD-RW discs, Region 2 DVD-Movie Discs, DVD: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer, Linear PCM, MPEG, Dolby Digital or DTS Audio Discs Video Signal System:PAL /NTSC Composite Video Output:1 V p-p /75 Ohms, sync negative polarity S Video Output:Y/Luminance: 1 V p-p/75 Ohms, sync negative polarity C/Chrominance: 0.286 V p-p Analog Audio Output:2 Vrms max Frequency Response:DVD (Linear PCM): 2 Hz - 22 kHz +0/-0.5 dB (48 kHz sampling) 2 Hz - 44 kHz +0/-0.5 dB (96 kHz sampling) CD: 2 Hz - 20 kHz +0/-0.5 dB Signal/Noise Ratio (SNR):110 dB (A-weighted) Dynamic Range:DVD: 100 dB (18 Bit) / 105 dB (20 Bit) CD/DVD: 96 dB (16 Bit) THD/1kHz:DVD/CD: 0.0025 % Wow & Flutter:Below Measurable Limits AC Power:220-240 V/50 Hz Power Consumption:12 Watts (On) / 20 Watts (Max) Dimensions (WxHxD):440x100x330 mm Weight:7 Kg All specifications subject to change without notice. Harman Kardon and Power for the digital revolution are trademarks of Harman Kardon, Inc. Manufactured under license from Dolby Laboratories. Dolby, AC-3, ProLogic and the double-D symbol are trademarks of Dolby Laboratories. Confidential. Unpublished Work. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. DTS is a trade mark of Digital Theater Systems, Inc. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or diassembly is prohibited.
Page 2
4FEATURES Features High quality video - Advanced sophisticated 10-bit MPEG-2 video decoding circuits. - Direct RGB output via SCART (selectable) for optimum video performance. SCART connector also configurable for Video and S-Video out- put. - Second SCART connector for throughput of VCR or other video source to TV with only one SCART input. - Test screen videos available for testing video performance and setup. - PAL 60 option for NTSC discs. - Dual-layer compatibility for extended play DVD. High quality digital audio - By connecting a DTS (Digital Theater Systems) or a Dolby Digital decoder, you can enjoy high quality 5.1 digital surround sound from DTS or Dolby Digital discs. - With linear PCM audio at 16-24 bits and 44- 96 kHz (also on digital output, see table page 14), audio quality exceeding that of CD becomes possible. - Optical and coaxial digital audio output. Many convenient features - On-Screen Menu lcons for disc information or player information and access to many major functions of this unit. - Subtitles may be displayed in one of numerous languages*. - The multi-angle function allows you to choose the viewing angle of scenes which were shot from a number of different angles (Limited to DVDs recorded with multiple camera angles.) - Multiple options for dialog language and soundtrack selection (limited to DVDs record- ed with multiple dialog languages or sound- tracks). - Programming of up to 9 scenes in memory (markers). - Parental lock settings to prevent play of discs unsuitable for some audiences [DVD only]. - Intuitive menu operating system. - Separate Buttons for convenient Fast Forward/Fast Reverse Search and Track Skip.- 2x/4x Zoom during play and pause, selection movable over screen in all directions. - Backlit, ergonomically designed remote con- trol. * The number of languages recorded depends on the software. Compatible with CD as well as DVD - The DVD20 will play any conventional Audio CD or recordable (CD-R) or erasable CD (CD- RW), bearing the logos shown here, as any VCD or DVD with the region code 0 or 2. Disc formats supported by this player The unit can play discs bearing any of the fol- lowing logos: DVD CD 3"(8 cm) disc 3"(8 cm) disc 5"(12 cm) disc 5"(12 cm) disc CD-RW CD-R VCD 5"(12 cm) disc 3"(8 cm) disc 5"(12 cm) disc 5"(12 cm) disc 5"(12 cm) disc NOTE:Due to differences in the format of certain discs, it is possible that some discs may include a mix of features that are not compatible with the DVD 20. Similarly, although the DVD 20 is capable of a wide range of features, not all discs include every capability of the DVD system. For example, although the DVD 20 is compatible with multi-angle discs, that feature is only possi- ble when the disc is specially encoded for multi- ple-angle play. In addition, the DVD 20 is capa- ble of playing back both Dolby Digital and DTS soundtracks, but the number and types of tracks available will vary from disc to disc. To make cer- tain that a specific feature or soundtrack option is available, please check the options noted on the disc jacket. Playback capability for CD-R and CD-RW discs may vary due to variations in the quality of the disc and the recorder used to create the disc. ReWritable
