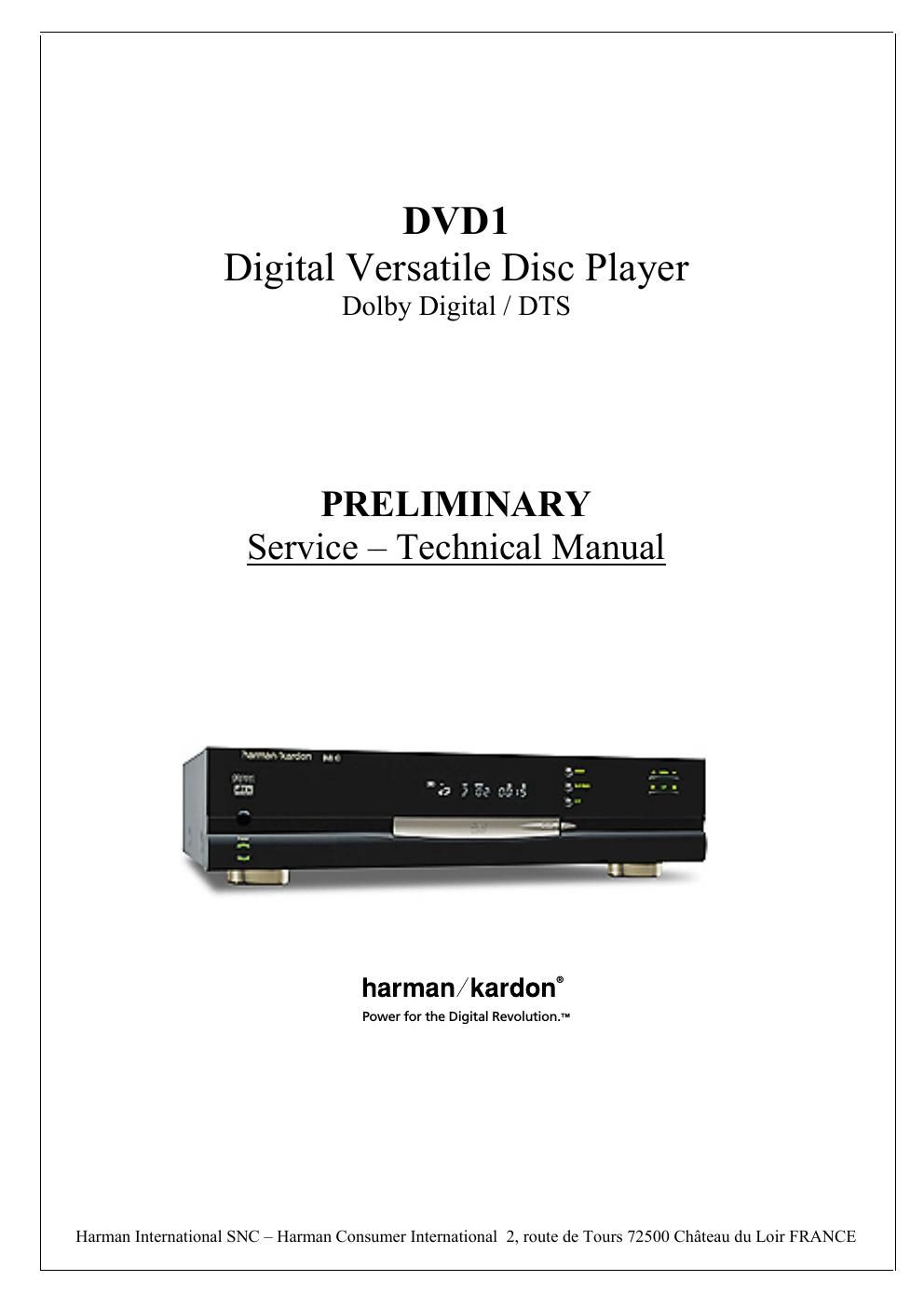

Harman kardon dvd 1 service manual

Page 2

3 Features DVD:a completely new dimension in video entertainment - Subtitles may be displayed in one of a maximum of 32 languages*. - The multi-angle function allows you to choose the viewing angle of scenes which were shot from a number of different angles (Limited to DVD recorded with multiple camera angles.) - Advanced sophisticated 10-bit MPEG-2 video decoding circuits. - Direct RGB output via SCART for optimum video performance. - Second SCART connector for throughput of VCR or other video source to TVs with only one SCART input. - Dual-layer compatibility for extended play DVD. * The number of languages recorded depends on the software. High quality digital audio - By connecting a DTS (Digital Theater Systems) or a Dolby Digital decoder, you can enjoy high quality 5.1 digital surround sound from DTS or Dolby Digital discs. - With linear PCM audio at 16-24 bits and 44-96 kHz (not on digital output, see table page 13), audio quality exceeding that of CD becomes possible. Many convenient features - On-Screen Menu lcons for disc information or player information and access to many major functions of this unit. - Programming of up to 9 scenes in memory (markers) - Parental lock settings to prevent play of discs unsuitable for some audi- ences [DVD only] - Intuitive menu operating system. - Separate Buttons for convenient Fast Forward/Fast Reverse Search and Track Skip. Compatible with CD as well as DVD. - The DVD1 will play any conventional Audio CD or erasable CD (CD- RW), bearing the logos as shown below as well as any DVD with the region code 0 or 2. Disc formats supported by this player The unit can play discs bearing any of the following marks: DVD CD CD-RW 3" (8 cm) disc 3" (8 cm) disc 5" (12 cm) disc 5" (12 cm) disc 5" (12 cm) disc Accessories Remote control unit Batteries for remote control unit (size AA) Video/Audio Cable Optional Accessories S-Video Cable Optical Digital Audio Cable Coaxial Digital Audio Cable ReWritable Declaration of Conformity We, Harman Consumer International 2, route de Tours 72500 Château-du-Loir, FRANCE declare in own responsibility, that the product described in this owners manual is in compliance with technical standards: EN 60 065:1993 EN 55 013/A12/8.1994 EN 55 020/12.1994 EN 61000-3-2/4.1995 EN 61000-3-3/1.1995 Carsten Olesen Harman Kardon Europe 04/00
