Harman kardon dc 5300 service manual

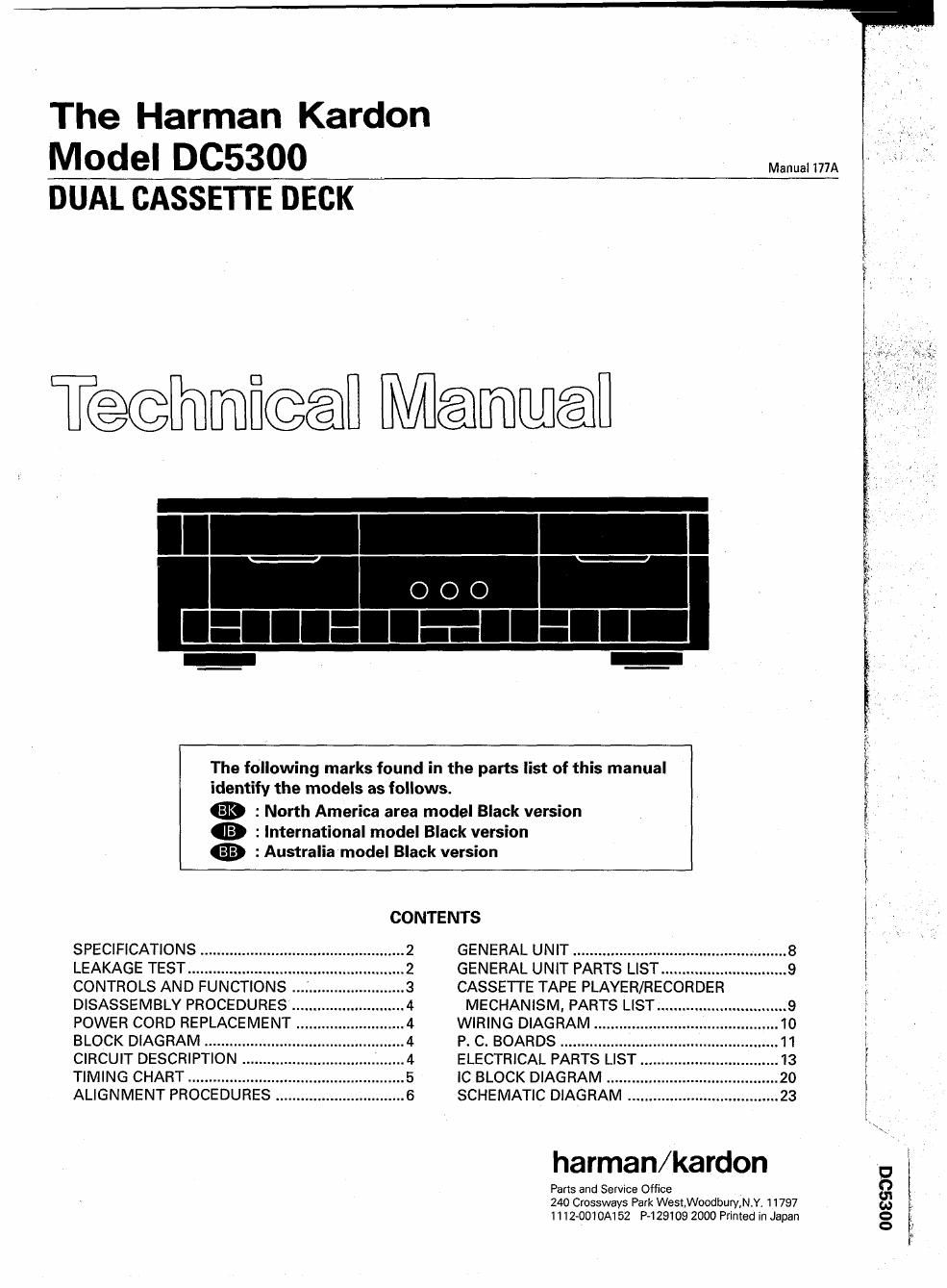

Page 1

The Harman Kardon
Model D65300
DUAL CASSETTE DECK

Manual I77A

Tedhmfiwfl Memenfl

s

The following marks found in the parts list of this manual
identify the models as follows.

1% : North America area model Black version

3 : International model Black version

.33 :Aus1ralia model Black version

CONTENTS

SPECIFICATIONS .. ...2 GENERAL UNIT ........................ ;
LEAKAGE TEST.. 2 GENERAL UNIT PARTS LIST... I
CONTROLS AND .. 3 CASSETTE TAPE PLAYER/RECO ,,
DISASSEMBLY PROCEDURES .A 4 MECHANISM, PARTS LIST.... 1
POWER CORD REPLACEMENT . 4 WIRING DIAGRAM ..
BLOCK DIAGRAM ............ 4 P. C. BOARDS .......... I
CIRCUIT DESCRIPTION 4 ELECTRICAL PARTS LIST . I
TIMING CHART ................ 5 IC BLOCK DIAGRAM ...... I
ALIGNMENT PROCEDURES .. ....6 SCHEMATIC DIAGRAM I
harman/kardon

Parts and Service Office
240 Crossways Park West,Woodbury,N.Y. 11797
11124101 0A152 P-1 29109 2000 Primed in Japan

008930

WWM_ A 44

Page 2

o
o
m
to
O
D

_ SPECIFICATIONS

Nominal Limit
A-track 2 Channel Stereo
Cassette Deck

Track Configuration

. MECHANICAL SECTION
Record/Playback Tape Speed
Drift 4.75 cm/sec. 0.2% g 2.0%
Heads (Primary/Secondary) 2/1
Wow and Flutter NAB 0.05% g 0.1%

CCIR 0.08%

Take Up Torque 50 gr.cm 35 - 70 gr.cm
Back Tension 2 gr.cm 2 - 6 gr.cm
F.FWD Torque 100 gr.cm 70 - 150 grcm
Flew Torque 100 gr.cm 70 - 150 gr.cm
F.FWD/Rew Time 85 sec. g 100 sec.
lC-GO Tape)
- AMPLIFIER SECTION
Record/Playback Frequency
Response (at -3 dB) LN 20- 18 kHz 20- 17 kHz
CrOz 20 - 18 kHz 20 - 17 kHz
Metal 20 - 18 kHz 20 - 17 kHz
Copy Mode Frequency
Response LN 40 - 16 kHz 40 - 15kHz
001 40 - 16 kHz 40 - 15 kHz
Metal 40-16 kHz 40-15 kHz
Bias Frequency 105 kHz :I:5 kHz

Playback Output 620 mV 11.5 dB
Signal-to-Noise Ratio

(at Line Input)
(Input 1 kHz, 100 mV)

lHF-A WTD (at Dolby level)

Dolby NR off LN 51 dB
Cr02 . 54 dB
Metal 54 dB
Dobly B NR _ LN 61 dB
CrOz 54 dB g 60 dB
Metal 64 dB g so dB

Nominal Limit
Dolby C NR LN 66 dB

CrOz 70 dB g 66 dB

Metal 70 dB g 66 dB
Channel Separation 45 dB g 35 dB
Crosstalk 70 (18 g 60 dB
Record/Playback Distortion
(Input 1 kHz)

LN 0.9% § 2.0%

CrOz 1.3% 5 3.0%

Metal 1.1% 52.0%
MPX Filter Attenuation

at 15 kHz 0.3 dB 51 dB
at 19 kHz 35 dB g 30 dB

Erase Ratio (Input 80 Hz)

LN 70 dB g 60 dB

Metal 61 dB gEG dB
Input Sensitivity

(Input 1 kHz) at Line Input 43 mV 30 -80 mV
Input Impedance
(Input 1 kHz) at Line Input 23 k9 15 - 25 k9

- DIMENSIONS (WxI'IxD) 17-3/8" x 5" x 12-5/8"
(443 x 134 x 342) mm
~ WEIGHT 17.2 lbs (7.8 kg)

- POWER SUPPLY

USA. and Canada models
International model

AC120V. 60 Hz
AC230V/240V, 50/60 Hz

- POWER CONSUMPTION
U.S.A. and Canada models 29 w

International model 31 W

These specifications are service target specs.
Specifications and components are subject to change without notice.
Overall performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.AI

Before returning the unit to the user, perform the
following safety checks:

1. Inspect all lead dress to make
certain that leads are not pinch-
ed orthat hardware is not lodged
between the chassis and other
metal parts in the unit.

2. Replace all protective devices
such as nonmetallic control
knobs, insulating fishpapers,
cabinet backs. or shields, isola-
tion resistorcapacitor networks,
mechanical insulators, etc.

3. Be sure that no shock hazard exists; check for
leakage current using Simpson Model 229 Leakage
Tester, standard equipment item No. 21641, RCA
Model WT540A or use alternate method as follows:

Plug the AC line cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500 ohm,
10-watt resistor paralleled by a 0.15mF capacitor, in
series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor.(See Diagram.) Move the reisistor
connection to each exposed metal part having a return
path to the chassis (antenna, metal, cabinet, screw
heads, knobs and control shafts, escutcheon, etc.) and
measure the AC voltage drop across the resistor. (This
test should be performed with the power switch in
both the On and Off positions.)

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER PIPEBX CABLE,
CONDUIT. ETC.

HIGH
VOLTAGE
OR +LEAD

GROUND
LEAD

5

VTVM
0 AC SCALEC

1.5kn
10W

4w»

_l|____

0.15uF

TEST PROBE

CONNECT TO KNOWN
EARTH GROUND

TO EXPOSED
METAL PARTS

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected

before returning the unit to the owner.
