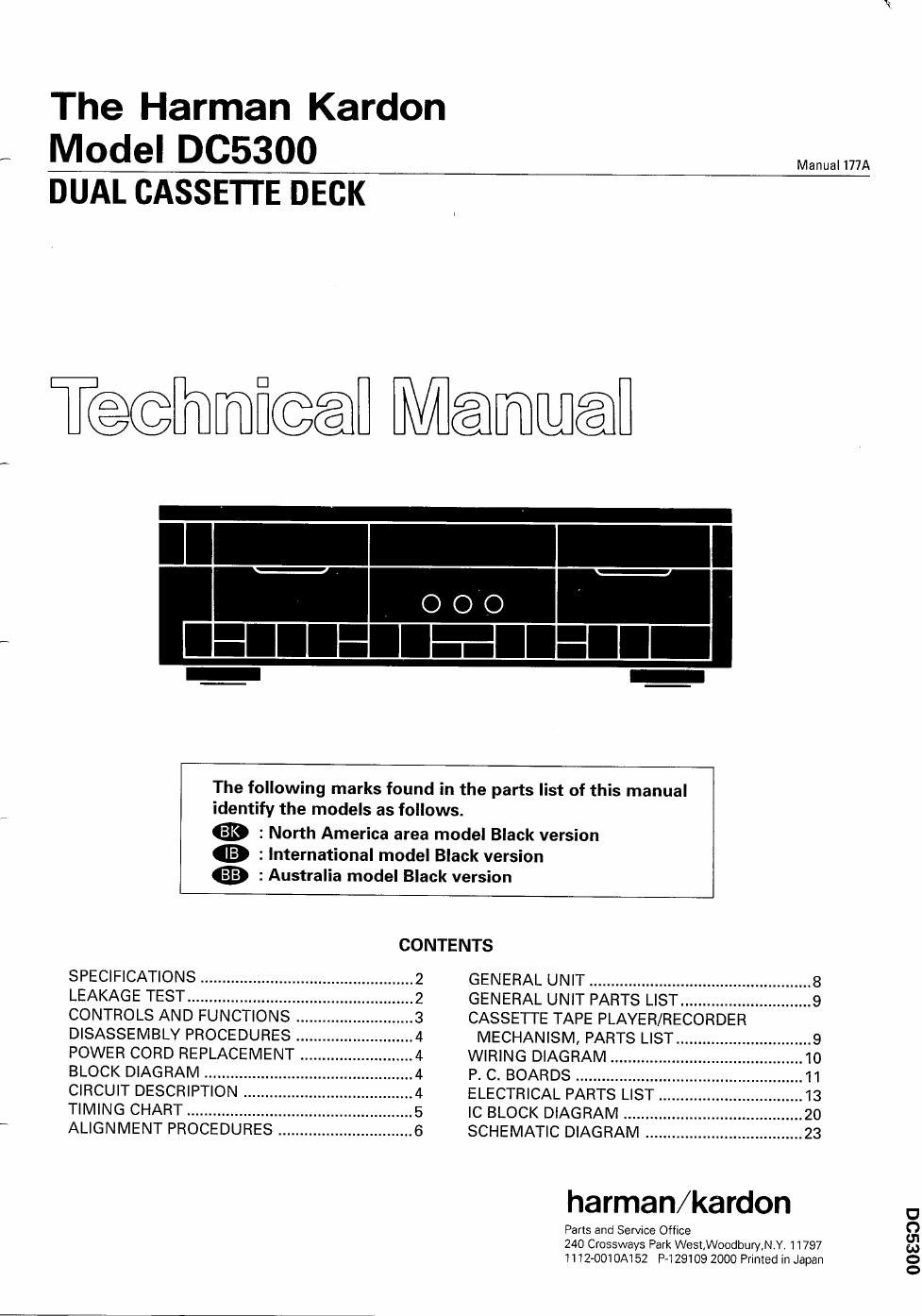

Harman kardon dc 5300 cass

Page 2

SPECIFICATIONS

Nominal Limit
4-track 2 Channel Stereo
Cassette Deck

Track Configuration

- MECHANICAL SECTION
Record/Playback Tape Speed

Drift 4.75 cm/sec. 0.2% g 2.0%
Heads (Primary/Secondary) 2/1
Wow and Flutter NAB 0.05% g 0.1%
CCIR 0.08%
Take Up Torque 50 gr.cm 35 - 70 gr.cm
Back Tension 2 gr.cm 2 - 6 gr.cm
F.FWD Torque 100 gr.cm 70 - 150 gr.cm
Raw Torque 100 gmm 70 - 150 gr.cm
F.FWD/Rew Time 85 sec. 5100 sec.
(coo Tape) '
- AMPLIFIER SECTION
Record/Playback Frequency
Response (at -3 dB) LN 20 - 18 kHz 20 - 17 kHz
CrOz 20 - 18 kHz 20 - 17 kHz
Metal 20 - 18 kHz 20 - 17 kHz
Copy Mode Frequency
Response LN 40 - 16 kHz 40 - 15 kHz
CrOz 40 - 16 kHz 40 - 15 kHz
Metal 40 - 16 kHz 40 - 15 kHz

105 kHz 15 kHz
520 mV $1.5 dB

Bias Frequency
Playback Output
Signal-to-Noise Ratio

(at Line Input)
(lnput1 kHz, 100 mV)
lHF-A WI'D (at Dolby level)

Dolby NR off LN 51 dB
CIOZ 54 dB
Metal 54 dB
Dobly B NR LN 61 dB
CrOz 64 dB 3 60 dB
Metal 64 dB 3 60 dB

Nominal Limit
Dolby C NR LN 66 dB
Cr02 70 dB g 66 dB
Metal 70 dB g 66 dB
Channel Separation 45 dB ; 35 dB
Crosstalk 70 dB g 60 dB
Record/Playback Distortion
(Input 1 kHZl
. LN 0.9% 5 2.0%
Cr02 1.3% g 3.0%
Metal 1.1% g 2.0%
MPX Filter Attenuation
at 15 kHz 0.3 dB g1 dB
at 19 kHz 35 dB g 30 dB
Erase Ratio (Input 80 Hz)
LN 70 dB g 60 dB
Metal 61 dB g 55 dB
Input Sensitivity
(lnput1 kHz) at Line Input 43 mV 30 --80 mV
Input Impedance
(Input 1 kHz) at Line Input 23 k9 15-25 k9

' DIMENSIONS (WXHXD) 17-3/ " X 5" x 12-5/ "
(443 x134 x 342) mm

0 WEIGHT 17.2 lbs (7.8 kg)

- POWER SUPPLV

U.S.A. and Canada models
International model

AC120V, 60 H2
AC230V/240V, 50/60 Hz

. POWER CONSUMPTION
U.S.A. and Canada models 29 w
International model 31 W

These specifications are service target spew.
Specifications and components are subject to change without notice.
Overali performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A)

Before returning the unit to the user, perform the
following safety checks:

1. Inspect all lead dress to make
certain that leads are not pinch»
ed orthathardware is notlodged
between the chassis and other
metal parts in the unit.

2. Replace all protective devices
such as nonmetallic control
knobs, insulating fishpapers,
cabinet backs, or shields, isola-
tion resistorcapacitor networks,
mechanical insulators, etc.

3. Be sure that no shock hazard exists; check for
leakage current using Simpson Model 229 Leakage
Tester, standard equipment item No. 21641, RCA
Model WT540A or use alternate method as follows:

Plug the AC line cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500 ohm,
10-watt resistor paralleled by a 0.15mF capacitor, in
series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor.lSee Diagram.) Move the reisistor
connection to each exposed metal part having a return
path to the chassis (antenna, metal, cabinet, screw
heads, knobs and control shafts, escutcheon, etc.) and
measure the AC voltage drop across the resistor. (This
test should be performed with the power switch in
both the On and Off positions.)

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDEFI TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

T0 AC GROUND SUCH
AS WATER PIPEBX CABLE.
CONDUIT, ETC.

HIGH GROUND

VOLTAGE LEAD
OR +LEAD
VTVM
.0 Ac SCALEQ-
1.5kn
10W
w.
0.15uF
TEST PROBE
TO EXPOSED CONNECT TO KNOWN
METAL PARTS EARTH GROUND

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected

before returning the unit to the owner.
