Harman kardon dc 520 service manual
This is the 41 pages manual for harman kardon dc 520 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon dc 520 service manual (Ocr-read)

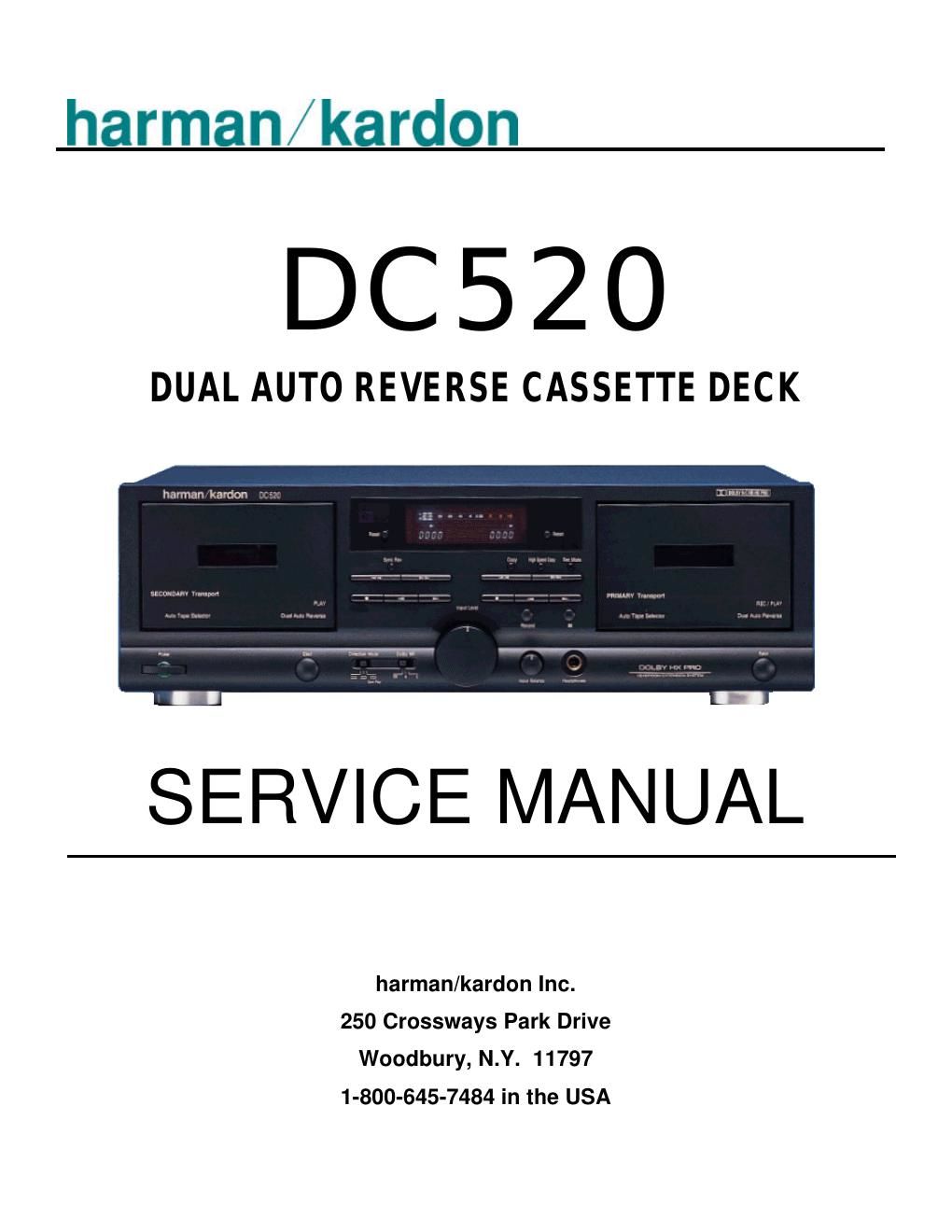

Page 1
harman/kardon
DCSZO
DUAL AUTO REVERSE CASSETTE DECK
.r' '-
SERVICE MANUAL
harman/kardon Inc.
250 Crossways Park Drive
Woodbury, N.Y. 11797
1-800-645-7484 in the USA
Page 2
CONTENTS
Specifications 2
Disassembly
Adjustments 4
IC Block Diagrams 10
Exploded view 1 12
Mechanical Parts List 1 13
Exploded view 2 14
Mechanical Parts List 2 15
Exploded view 3 16
Mechanical Parts List 3 17
Electrical Parts List 120v USA 18
Electrical Parts List 230v EU 25
PCB Layouts * 35
Schematics ** 39
* PC boards are viewed from the Parts side only
** When printed, Schematics are intended for use with a printercapable ofprinting
a 11 x 17 page or larger- if printed on a standard 8 1/2 x 11 printer it may not
be legible.
