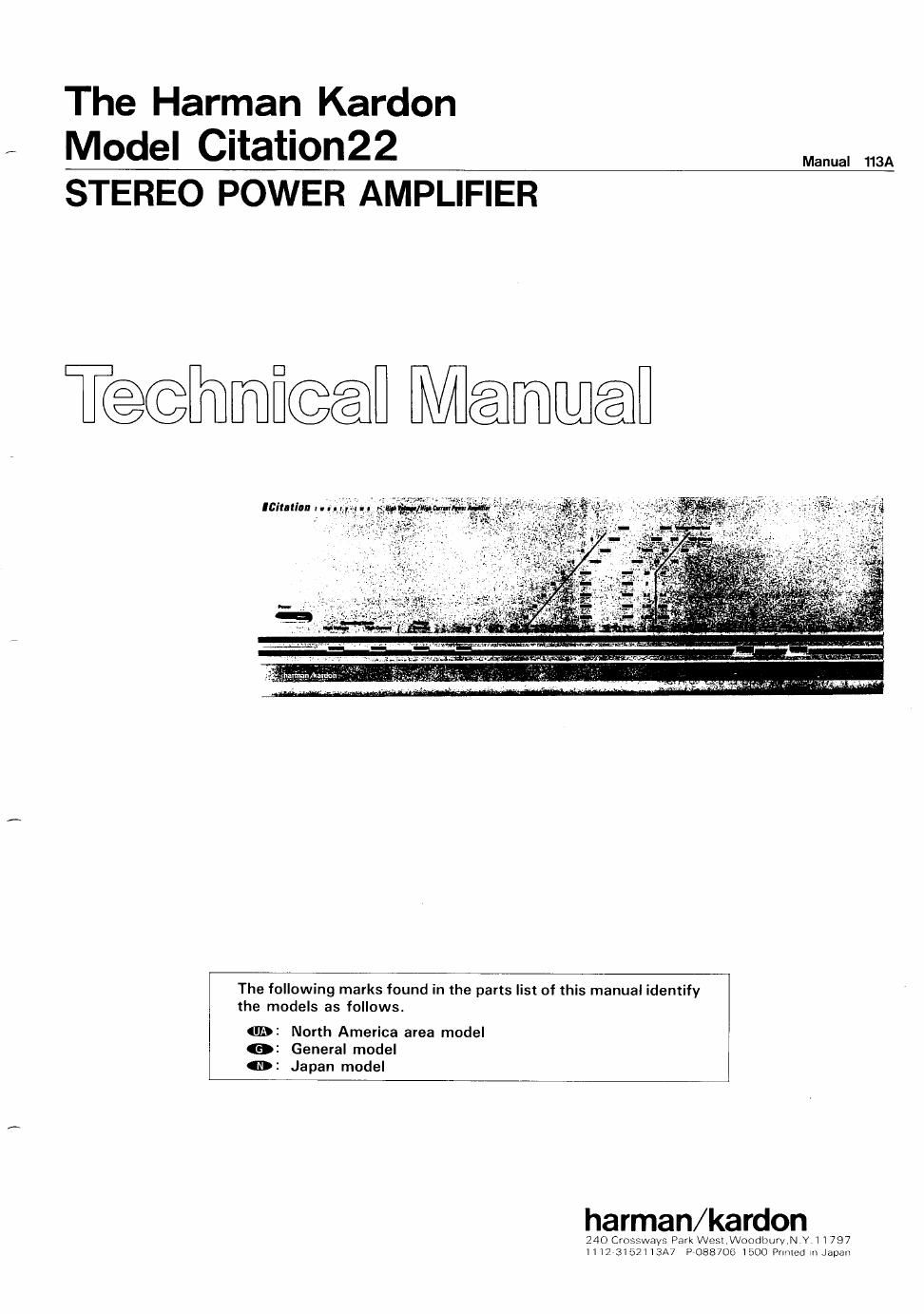

Page 1

The Harman Kardon
Model Citation22

STEREO POWER AMPLIFIER

Manual 113A

Teelmmfieej Meme

The following marks found in the parts list of this manual identify
the models as follows.

1»: North America area model
0: General model
0: Japan model

harman/kardon

240 Crossways Park WESLWOOdhun/N Y 11797
1112 31b2l13A7 F 088706 1500 Prmled m Japan

Page 2

SPECIFICATIONS

Nominal Limit Nominal Limit

1.0V10.15V Power Bandwidth 10HZ~100kHz
22kt): 2kg (1/2 rated power)
0-07HZ~578kHz IM Distortion Ratio at 1W

Input Sensitivity
Input Impedance at lkHz

Frequency Response 0.01 %S0.08

Signal to Noise Ratio 100.3deQOdB Damping Factor at 1kHz 1392100
Channel Separation at IOkHz 92de75dB DC Balance OmV260mV
Total Harmonic Distortion Idling Current 16mV12mV
20HZ 0.01 %S0.08% (32mV:3mVl
1kHz 0.006%50.08% Dimensions lWxHxDl 1773/8x6-1/8>< 15-11/16"
ZOkHZ 0.01%50.08% (443x155x 398mm)
RMS Output Power Weight 45 IbS- (20-5kgi
8Q, IkHz, THD 0.08%/Ch. 224W2200W Power SUPPIY
4Q, IkHz, THD 0.08%lch, 228W2200W North America area model AC 120V, 60Hz

General model AC 220V/240V, 50/60Hz
Japan model AC 100V, 50/60Hz
Power Consumption 610W

This specification is the target of servicmg.
But, there is a case that the specification is not applicable to the measurement
condition and instrument.

Specifications and components subject to change without notice. Overall
performance will be maintained or Improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.l

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,

SIMPSON MODEL 229 ETC, FOR
LEAKAGE TEST

T0 AC GROUND SUCH
AS WATER PIPE BX CABLE
CONDUIT, ETC

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

HIGH

GROUND

insulating fishpapers, cabinet backs, égffgfio LEAD
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators, 6
etc. which were removed for servicv
ing are properly reinstalled. V'rVM

3. Be sure that no shock hazard exists; check for leakage -0 AC SCALEo-
current using Simpson Model 229 Leakage Tester,
standard equipment item No, 21641, RCA Model 1.5km
WT54OA or use alternate method as follows: 10w
Plug the power cord directly into a 120-volt AC «M

receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10»watt resistor paralleled by a 0.15 F capacitor,
in series with all exposed metal cabinet parts and -l I-
a known earth ground, such as a water pipe or conduit, 0 15oF
Use a VTVM or VOM with 1000 Ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet, TO EXPOSED
screw heads, knobs and control shafts, escutcheon, METAL pAm-s
etc.) and measure the AC voltage drop across the

resistor, (This test should be performed with the power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before
returning the unit to the owner.

TEST PROBE

CONNECT TO KNOWN
EARTH GROUND
