Harman kardon citation 17 service manual

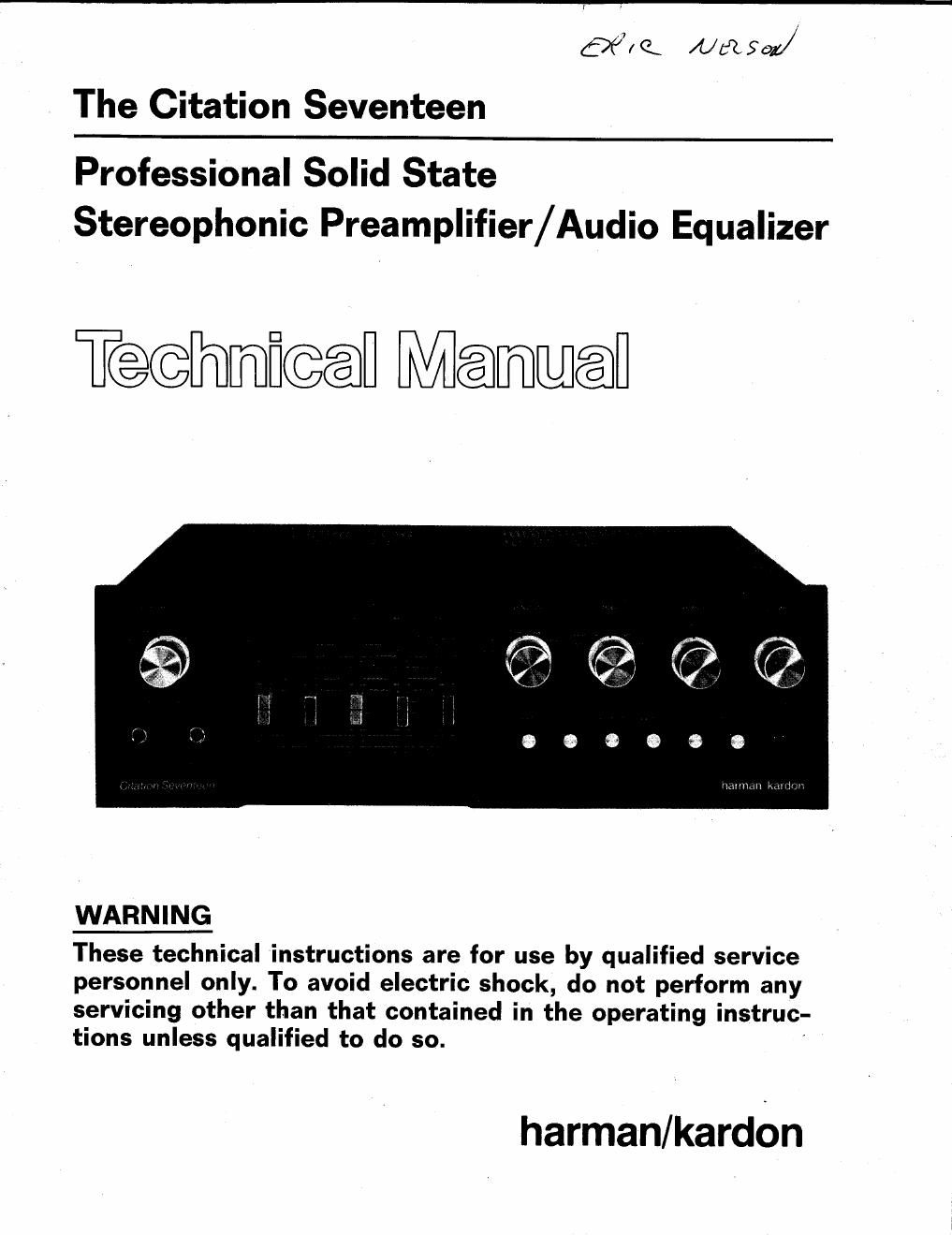

Page 1

MIQ A/cZSow/
The Citation Seventeen

Professional Solid State
Stereophonic Preamplifier/ Audio Equalizer

T@@mfi@afl Manual

WARNING

These technical instructions are for use by qualified service
personnel only. To avoid electric shock, do not perform any
servicing other than that contained In the operating instruc-
tions unless qualified to do so.

harman/kardon

Page 2

SPECIFICATIONS

Audio Output:
Frequency Response:
Square Wave Rise Time:

Square Wave Tilt:

Total Harmonic Distortion:
lntermodulation Distortion:
Output Impedance:

Load Impedance:

Signal to Noise Ratio:
Input Sensitivity:

Input Impedance:

Filters:
Subsonic cut:
High cut:

Volume Control Tracking:

Equalization:
Total Harmonie Distortion:
Intermodulation Distortion:

Signal to Noise Ratio:

Input Sensitivity:
Input Impedance:
Overload:

Power Consumption:
Dimensions:

Weight:

Output Amplifier

Up to 14 volts RMS into 2200 ohms or
greater (in parallel with 1500 picofarads)

Below 5H2 to beyond 125,000Hz i 0.5dB
Below 3H2 to beyond 270,000Hz -3.0dB

Less than 1.3 microseconds at 20,000Hz
0d B attenuation

Less than 5% at 20Hz

Less than 0.001% at 2 volts RMS output

Less than 0.0025% at equivalent 2 volts RMS output
Less than 100 ohms

2200 ohms or greater

92dB below 2 volts RMS (with 20,000Hz filter)

200 millivolts for 2 volts RMS output

20,000 ohms

-3dB at 20Hz, 12 dB/octave
-3dB at 8000Hz, 12 dB/octave

10.5dB, MB to -60clB attenuation

Phono Preamplifier
RIAA curve: 10.25dB
Less than 0.002%, 5 volts at tape output, 1000Hz

Less than 0.0025%, equivalent 5 volts at tape output,
(RlAA inverter used)

Better than 80dB below 10 millivolt input reference
at 1000Hz

2.8 millivolts for 2 volts output, 1000Hz, at tape output
47,000 ohms 15%, 80 picofarads

Greater than 18 millivolts at 20HZ, 180 millivolts at
1000Hz and 1.8 volts at 20,000Hz

General

21 watts maximum, 105 to 129 volts AC, 60Hz

16-1/6"W x 4-3/4"H x 12"D
(406mm x 120mm x 305mm)

20 lbs. (9.0kg)
