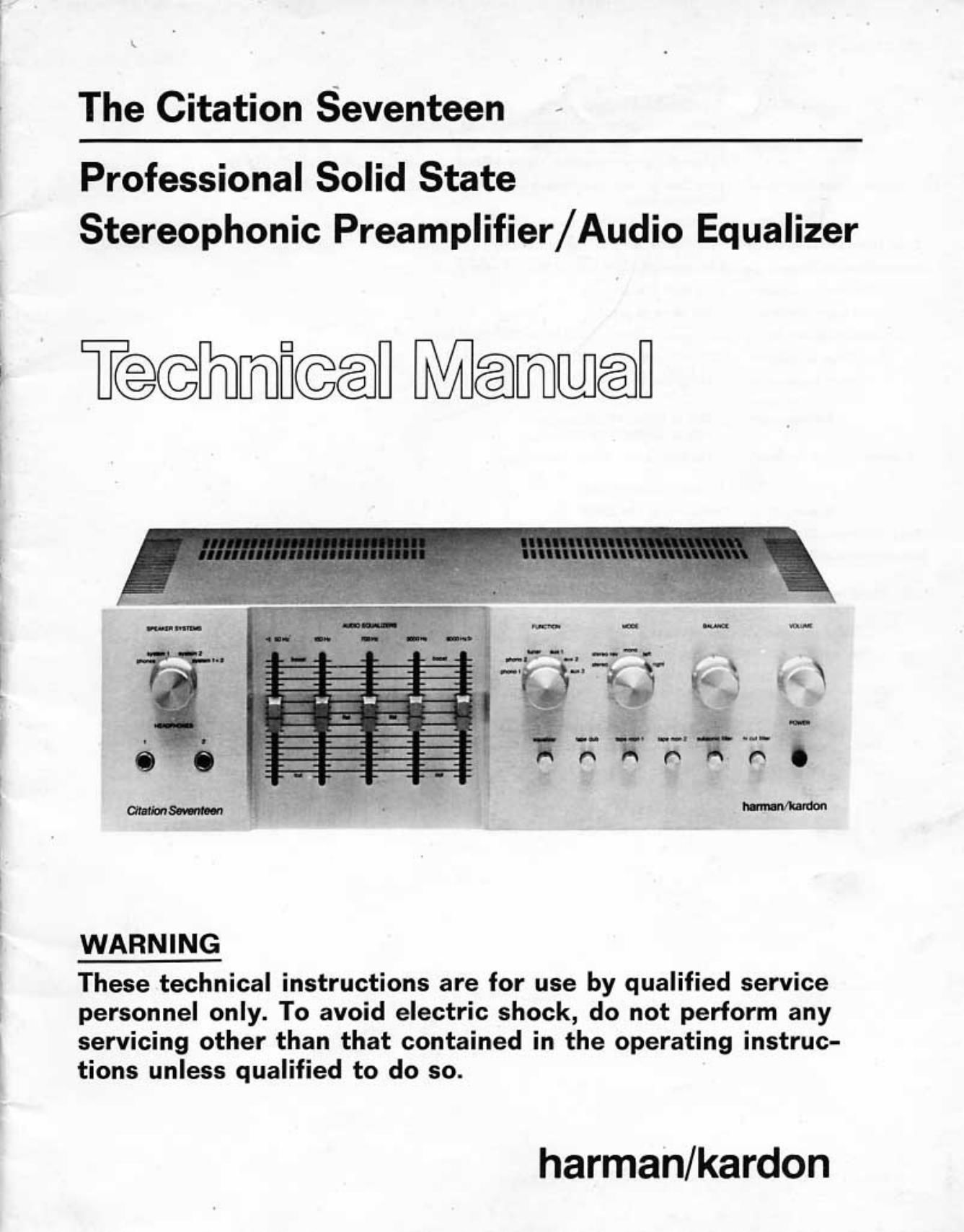

Page 1

The Citation Seventeen

Professional Solid State
Stereophonic Preamplifier/ Audio Equalizer

T@@hm]fi@@fl Manual

WARNING

These technical instructions are for use by qualified service

personnel only. To avoid electric shock, do not perform any

servicing other than that contained in the operating instruc-
tions unless qualified to do so.

harman/kardon

Page 2

SPECIFICATIONS

Audio Output:
Frequency Response:
Square Wave Rise Time:

Square Wave Tilt:

Total Harmonic Distortion:
Intermodulation Distortion:
Output Impedance:

Load Impedance:

Signal to Noise Ratio:
Input Sensitivity:

Input Impedance:

Filters:
Subsonic cut:
High cut:

Volume Control Tracking:

Equalization:
Total Harmonic Distortion:
Intermodulation Distortion:

Signal to Noise Ratio:

Input Sensitivity:
Input Impedance:
Overload:

Power Consumption:
Dimensions:

Weight:

Output Amplifier

Up to 14 volts RMS into 2200 ohms or
greater (in parallel with 1500 picofarads)

Below 5H2 to beyond 125,000Hz : 0.5dB
Below 3H2 'to beyond 270,000Hz -3.0d8

Less than 1.3 microseconds at 20,000Hz
0d8 attenuation

Less than 5% at 20Hz

Less than 0.001% at 2 volts RMS output

Less than 0.002556 at equivalent 2 volts RMS output
Less than 100 ohms

2200 ohms or greater

92d8 below 2 volts RMS (with 20,000Hz filter)

200 millivolts for 2 volts RMS output

20,000 ohms

-3d8 at 20Hz, 12 dB/octave
-3d8 at BOOOHz, 12 dB/octave

£0.5dB, OdB to ~-60dB attenuation

Phono Preamplifier
FIIAA curve: $0.25dB
Less than 0.002%, 5 volts at tape output, IOOOHz

Less than 0.002596, equivalent 5 volts at tape output,
(RIAA inverter used)

Better than 80dB below 10 millivolt input reference
at lOOOHz

2.8 millivolts for 2 volts output, IOOOl-Iz, at tape output
47,000 ohms 35%, 80 picofarads

Greater than 18 millivolts at 20Hz, 180 millivolts at
1000M: and 1.8 volts at 20,000l-Iz

General
21 watts maximum, 105 to 129 volts AC, 60H:

16-1/6W x 4~3/4"H x 12"D
(406mm x 120mm x 305mm)

20 lbs. (9.0kg)
