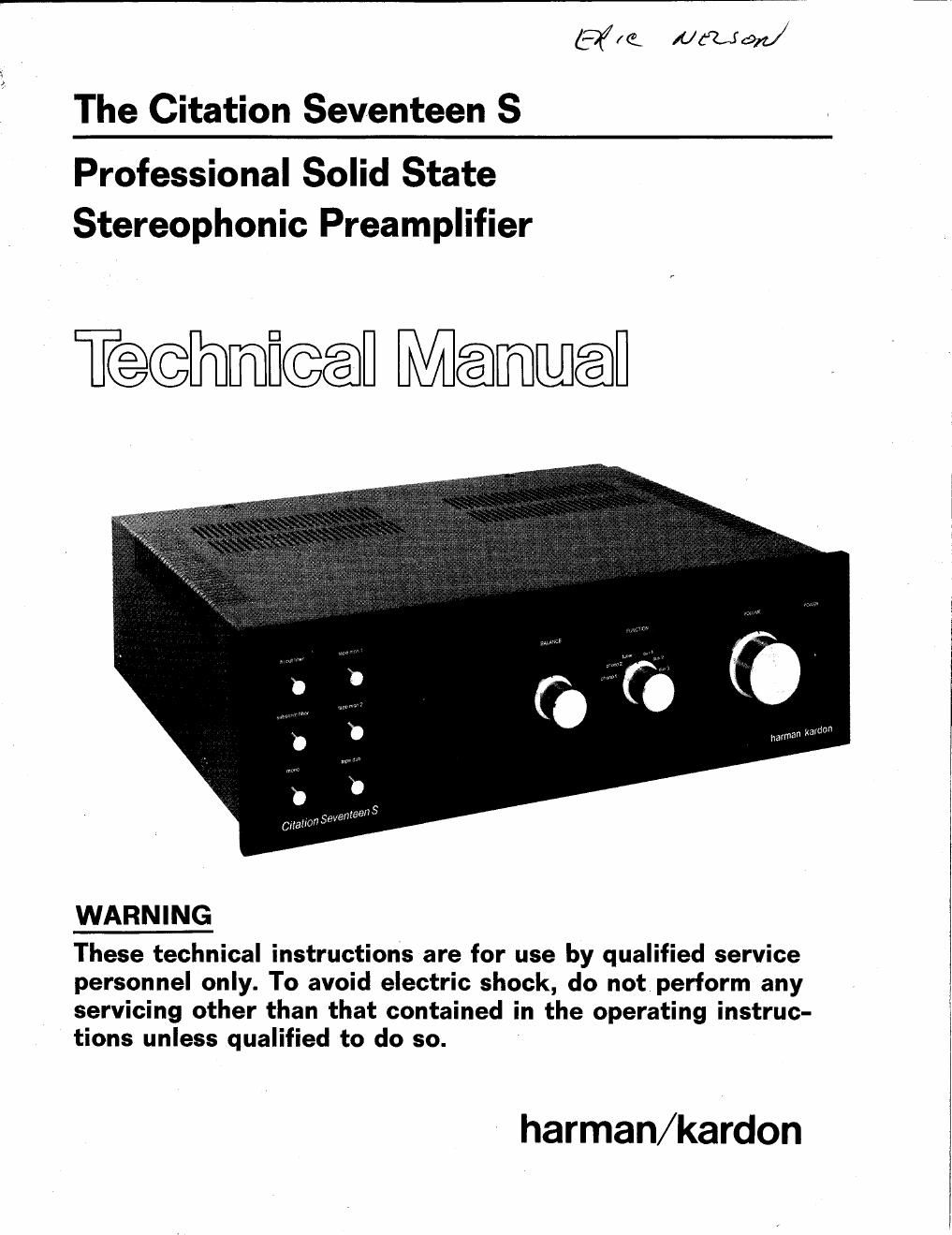

Page 1

EY/Q A/CZJW/

The Citation Seventeen S

Professional Solid State
Stereophonic Preamplifier

Technical Mamafl

WARNING

These technical instructions are for use by qualified service

personnel only. To avoid electric shock, do not perform any

servicing other than that contained in the operating instruc-
tions unless qualified to do so.

- harman/kardon

Page 2

SPECIFICATIONS

Audio Output:
Frequency Response:
Square Wave Rise Time:

Square Wave Tilt:
Total Harmonic Distortion:
Intermodulation Distortion:

Output Impedance:
Load Impedance:
Signal to Noise Ratio:

Input Sensitivity:
Input Impedance:

Filters:
Subsonic Cut:
High Out:

Volume Control Tracking:
Turn-On Delay:

Equalization:

Total Harmonic Distortion:
Intermodulation Distortion:
Signal to Noise Ratio:
Input Sensitivity:

Input Impedance:
Overload:

Power Consumption:
Dimensions:

Weight:

Output Amplifier

Up to 14 volts RMS into 2200 ohms or
greater (in parallel with 1500 picofarads)

Below 5H2 to beyond 125,000Hz $0.5dB
Below 3H2 to beyond 270,000Hz -3.0dB

Less than 1.3 microseconds at 20,000Hz,
OdB attenuation

Less than 5% at 20Hz
Less than 0.001% at 2 volts RMS output

Less than 0.0025% at equivalent 2 volts
RMS output

Less than 100 ohms
2200 ohms or greater

92dB below 2 volts RMS (with
20,000Hz filter)

200 millivolts for 2 volts RMS output
20,000 ohms

-3dB at 2OH2, 12dB per octave
-3dB at 8000Hz, 12 dB per octave

20.5dB, OdB to -50dB attenuation
5 to 8 seconds

Phono Preamplifier
RIAA curve, i-O.25dB

Less than 0.002%,
5 volts at tape output, 1000Hz

Less than 0.0025%, equivalent 5 volts
at tape output (RIAA inverter used)

Better than 80dB below 10 millivolt
input reference at 1000Hz

2.8 millivolts for 2 volts
at tape output, 1000Hz

47,000 ohms 15%, 80 picofarads

Greater than 18 millivolts at 20Hz,
180 millivolts at 1000Hz, and
1.8 volts at 20,000Hz

General

21 watts maximum,
105 to 129 volts AC, 60Hz

16-1/6W x 4-3/4"H x 12"D
(406mm x 120mm x 305mm)

17 lbs. (7.7 kg)
