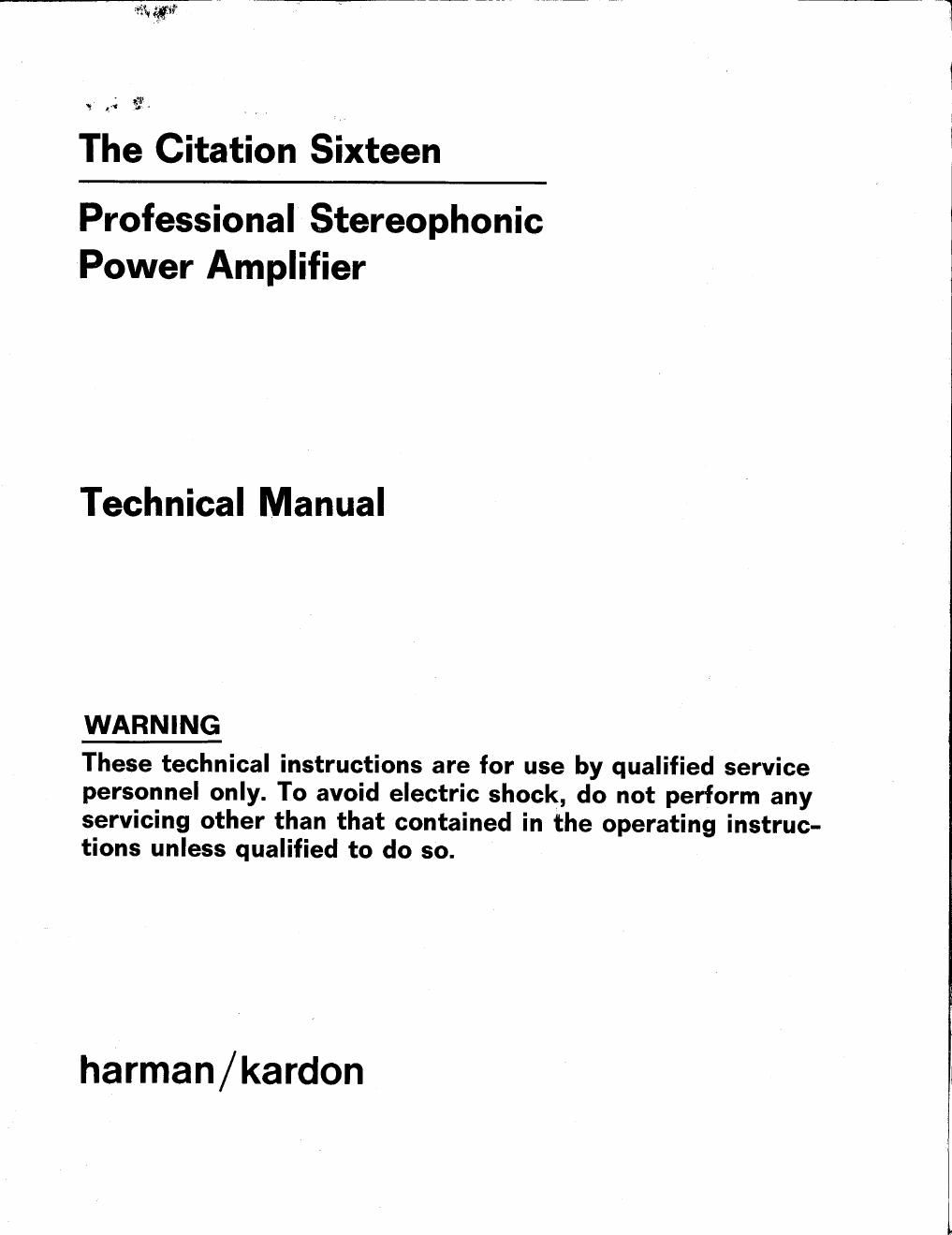

Harman kardon citation 16 service manual

Page 2

CITATION SIXTEEN SPECIFICATIONS

POWER OUTPUT:

Power Bandwidth:

Frequency Response:

Square Wave Rise Time:

Slew Rate:

Total Harmonic Distortion:

lntermodulation Distortion:

Hum and Noise:

Damping Factor:
Input lmpedance:
Input Sensitivity:

Phase Shift:

Inputs:

Outputs:

Dimensions:

Weight:

150 WATTS MIN. RMS PER CHANNEL,
BOTH CHANNELS DRIVEN INTO

8 OHMS FROM 20Hz to 20kHz,

WITH LESS THAN 0.05% THD

From 0.5Hz to 110kHz at less than 0.1%
THD into 8 ohms, both channels driven
simultaneously at 75 watts per channel
From 0.5Hz to 120kHz, both channels
driven simultaneously at 1 watt per
channel, into 8 ohms

Better than 3 microseconds

Greater than 30V/usec

Less than 0.05% from 1 watt to 150
watts RMS, both channels driven
simultaneously into 8 ohms from 0.5Hz
to 20kHz

Less than 0.05% at from 0.015 watts
to 150 watts

Better than 100dB below 150 watts
300:1

22k ohms

1.25 volts for 150 watts

Less than 0.5 degrees at 20Hz, less than
12 degrees at 20kHz

One RCA type input terminal per channel
Instrument type binding posts.

Accepts speakers from 4 to 16 ohms
91/8" H x191/8" W x 13 9/16 D

(complete with metal cage)

(23.2 cm H x 48.6 cm W x 34.4 cm D)

55 pounds
