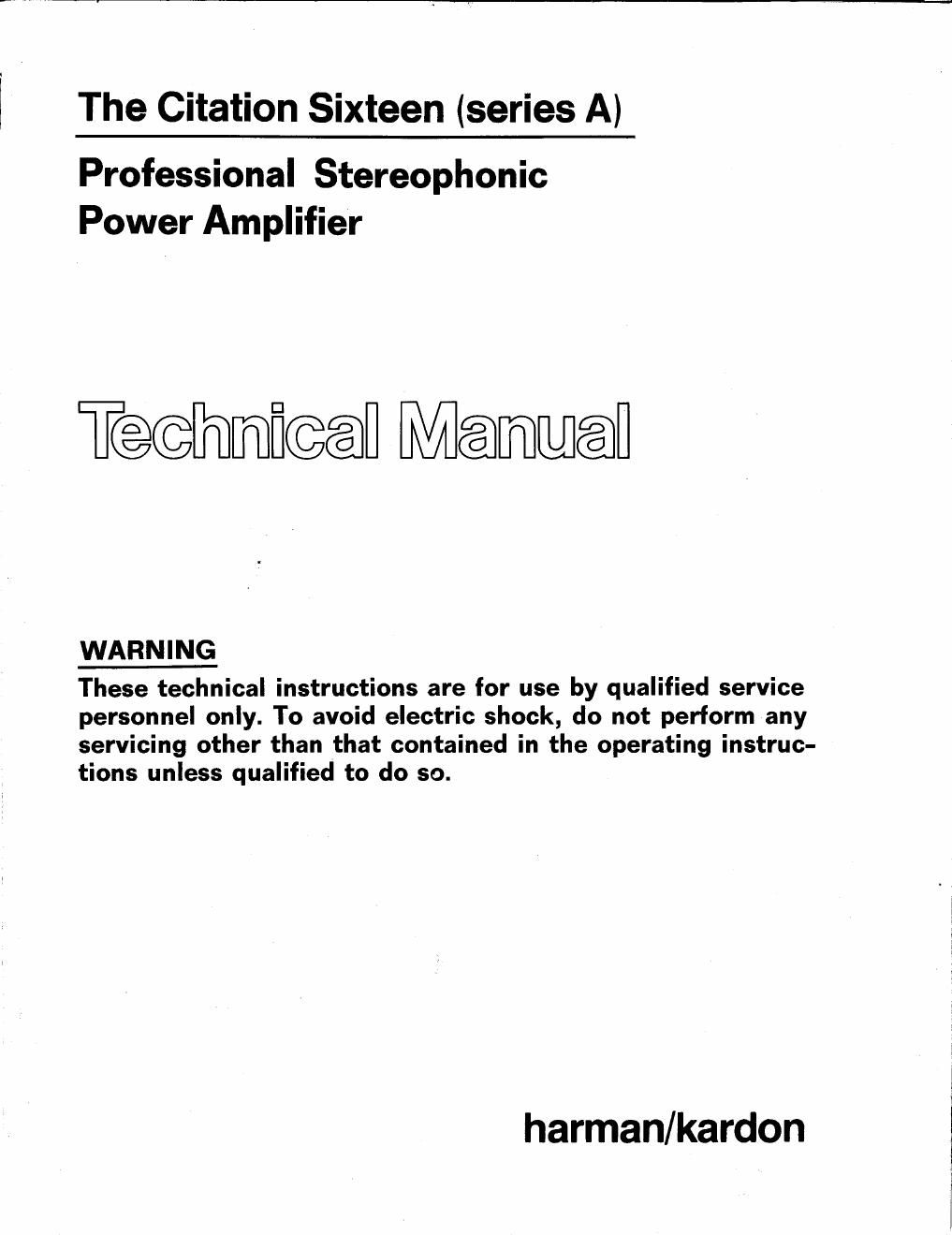

The Citation Sixteen (series A)

Professional Stereophonic
Power Amplifier

Teehnfieafl Mamafl

WARNING

These technical instructions are for use by qualified service

personnel only. To avoid electric shock, do not perform any

servicing other than that contained in the operating instruc-
tions unless qualified to do so.

harman/kardon

Page 2

CITATION SIXTEEN SPECIFICATIONS

Power Output:

Power Bandwidth:

Frequency Response:

Square Wave Rise Time:

Slew Rate:
Total Harmonic Distortion:

lntermodulation Distortion:

Hum and Noise:
Damping Factor:
Input Impedance:
Input Sensitivity:
Phase Shift:

Inputs:
Outputs:

Dimensions:

Weight:

150 watts min. rms per channel,
Both channels driven into 8 ohms
from 20Hz to 20kHz, with less
than 0.05% THD

From 5H2 to 45kHz at less than

0.05% THD into 8 ohms, both channels
driven simultaneously at 75 watts

per channel

From 4H2 to 120kH2, +DdB -3dB,
both channels driven simultaneously
at 1 watt per channel, into 8 ohms

Better than 3 microseconds
Greater than 30V/psec

Less than 0.05% from 1 watt to 150
watts RMS, both channels driven
simultaneously into 8 ohms from 0.5Hz
to 20kHz

Less than 0.05% at from 0.015 watts
to 150 watts

Better than 100dB below 150 watts
300:1

22k ohms

1.25 volts for 150 watts

Less than 0.5 degrees at 2OHz, less than
12 degrees at 20kHz

One RCA type input terminal per channel

Instrument type binding posts.
Accepts speakers from 4 to 16 ohms

91/8 H x191/8 W x 13 9/16" D
(complete with metal cage)

(23.2 cm H x 48.6 cm W x 34.4 cm D)
55 pounds (24.9Kg)
