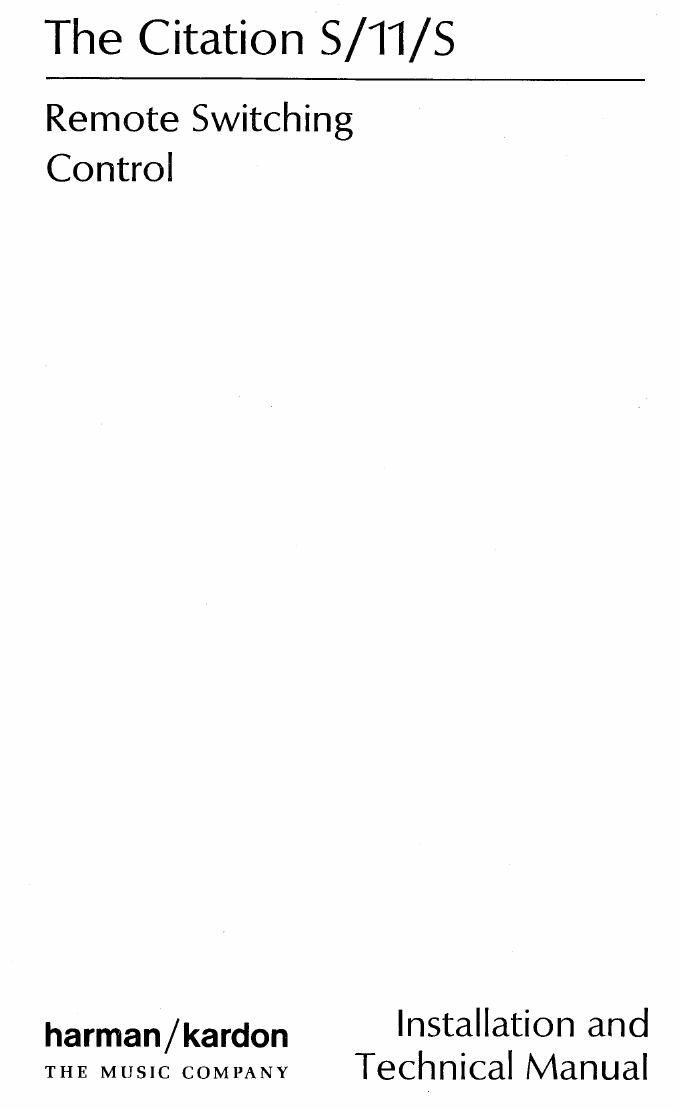

Page 1
The Citation 5/11/5
Remote Switching
Control
THE MUSIC COMPANY Technical Manual
Page 2
Introduction
The Citation 8/11/8 was
developed for use with the
Citation 11 to allow
operation of its speaker
switch with amplifiers of
high power output. The
8/11/8, using high current,
long life silver/cadmium
oxide contacts, utilizes the
switching logic of the
Citation 11 to remotely
control speakers during
switching when high power
amplifiers are used.
The instructions within
this manual describe the
use of the Citation 8/11/8
with the Citation 11
preamplifier and the
Citation 16 power amplifier
rated at 1 50 watts RMS per
channel. The 8/11/8 can of
course be used with any
other high power amplifier
capable of developing up
to 800 watts per channel
into an 8 ohm load, or 400
watts per channel info a 4
ohm load.
Read each section of this
manual and the manuals of
your Citation 11 and
associated power amplifier
before you proceed. This
will insure that you make
the right connections the
first time, thus shortening
the time required for
installation.
