Harman kardon citation nineteen

Page 1

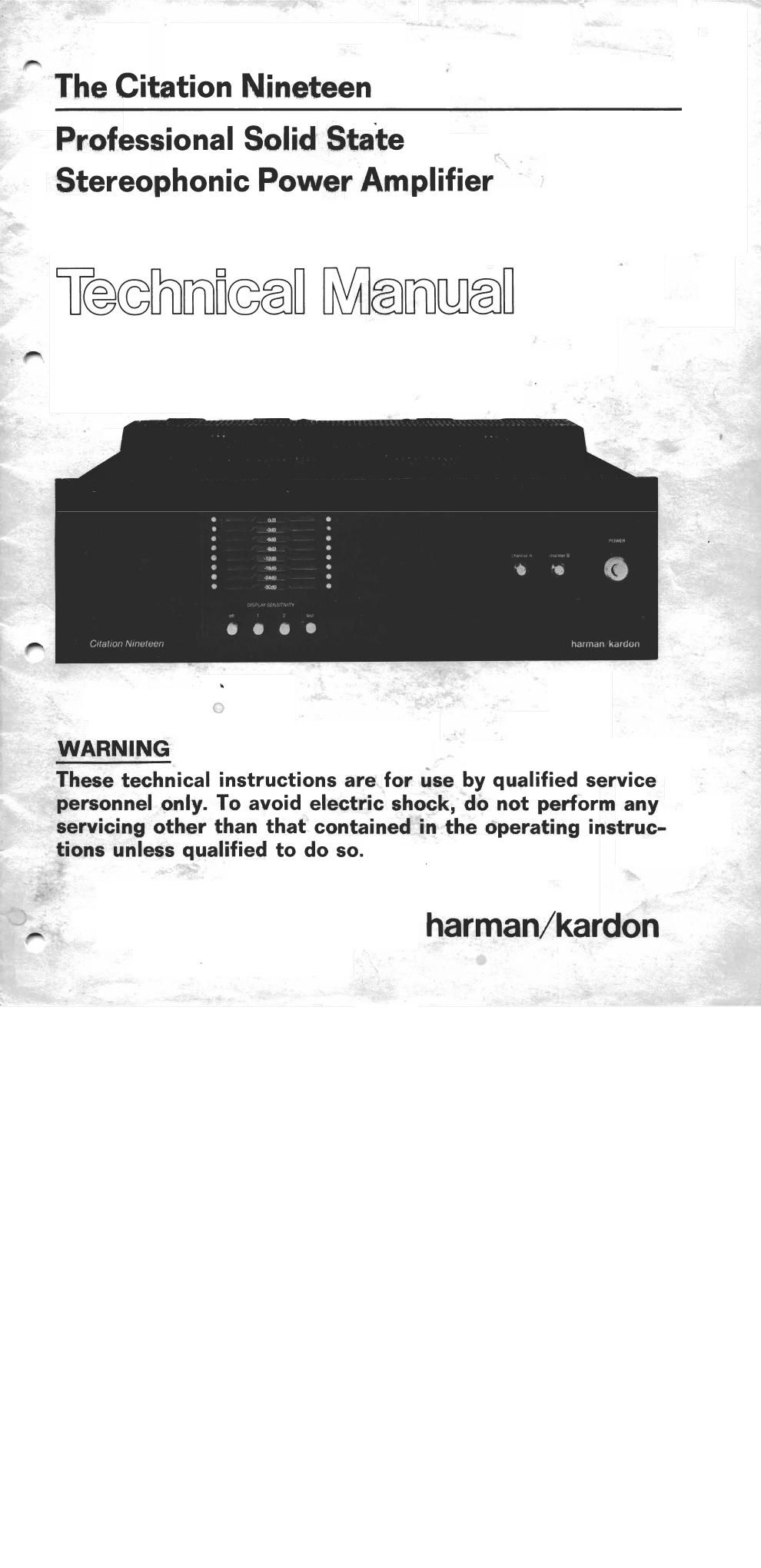

A The Citation Nineteen

Professional Solid State
Stereophonic Power Amplifier

Teflmmficsafl Mamafl

WARNING

These technical instructions are for use by qualified service

personnel only. To avoid electric shock, do not perform any

servicing other than that contained in the operating instruc-
tions unless qualified to do so.

, harman/kardon

Page 2

TECHNICAL SPECIFICATIONS

Power Output:

Power Bandwidth:

Frequency Response:

Square Wave Rise Time:
Phase Shift:

Slew Rate:

Total Harmonic Distortion:

Intermodulation Distortion:

Hum and Noise:
Damping Factor:
Input Impedance:
Input Sensitivity:
Dimensions:

Weight:

100 watts min. rms per channel.

Both channels driven into 8 ohms

from 20Hz to 20kHz, with less than

0.08% TH D.

From below 5H2 to beyond 65kHz at less
than 0.08% THD into 8 ohms, both channels
driven at 50 watts per channel.

From below 5H2 to beyond 50kHz, i0.5dB
at less than 0.08% TH D, from below

5H2 to beyond I40kHz, -3dB at less than
0.08% TH D.

Better than 2.0 microseconds.
Less than 10° at 20 kHz
Greater than 40 volts per microsecond.

Less than 0.08% from 250 milliwatts to
100 watts RMS, both channels driven
into 8 ohms from 20Hz to 20kHz.

Less than 0.08% from 15 milliwatts
to 100 watts.

Better than IOOdB below 100 watts.
Greater than 125:1, at 8 ohms.

30 kilohms.

1.25 volts for 100 watts.

16"W x 5-1/4H x 14-3/4"D

406mm x 133mm x 375mm

39 lbs (17.6 kg)

This unit may be bridged to provide 220 watts
from 20Hz to 20kHz, with less than 0.16% THD,
into a single 16-ohm load.
