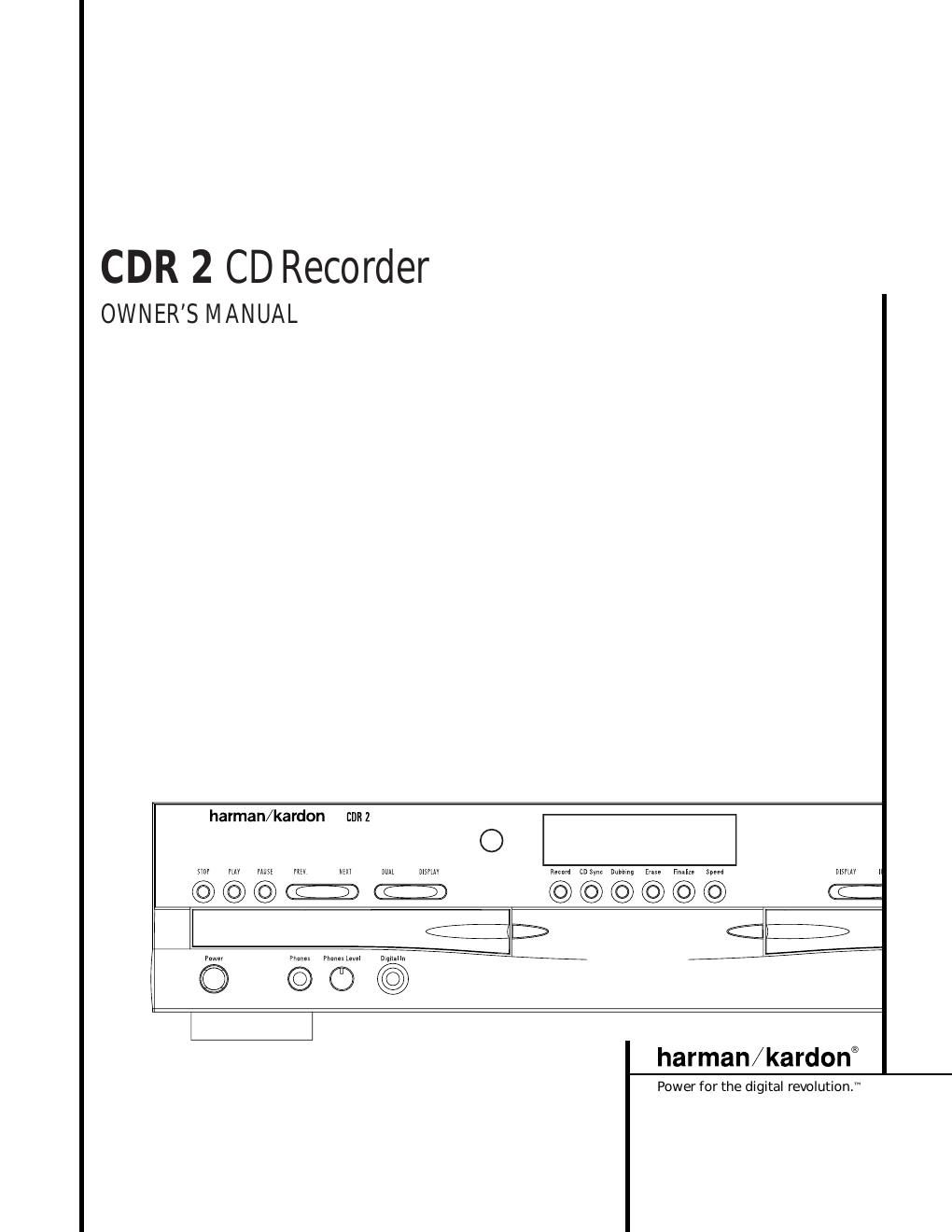

Harman kardon cdr 2 owners manual
This is the 24 pages manual for harman kardon cdr 2 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon cdr 2 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3Introduction 3Important Information on CD Recording 4Safety Information 5Front-Panel Controls 7Front-Panel Information Display 9Rear-Panel Connections 10Remote Control Functions 12Installation and Connections 14CD Recording Basics 15Playback Basics 15Loading and Unloading Discs 15Using the Remote 16Normal Play 16Search 16Track Skip 17Dual-Play Mode 17Dual-Deck Operation 17Time Display 17Headphone Listening 18Program Play 18Programming Play Lists 18Checking, Editing and Clearing Programmed Play Lists 18Repeat Programmed Play 20CD Recording 20Disc Dubbing 21CD Sync Recording 21Recording from an External Source 22Finalizing CD-R and CD-RW Discs 22Unfinalizing and Erasing CD-RW Discs 22Unfinalizing a CD-RW Disc 22Erasing an Entire CD-RW Disc 22Erasing a Single Track 23Troubleshooting Guide and Error Messages 24Technical Specifications CDR 2Compact Disc Recorder Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLEÐ (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLEÐ (OCR type) indicates a message that is visible on the front-panel information display EXAMPLEÐ (outlined type) indicates a lit indicator in the front-panel information display 1Ð (number in a square) indicates a specific front-panel control aÐ (number in an oval) indicates a button or indicator on the remote ÁÐ (number in a circle) indicates a rear-panel connection AÐ (letter in a square) indicates an indicator in the front-panel display
Page 2
3INTRODUCTION Introduction Thank you for choosing Harman Kardon. The CDR 2 Dual-Deck CD Player/Recorder is a unique product, designed not only to play back your existing library of compact discs, but also to record compact discs from either analog or digital programs. You may feed signals (for recording) to the CDR 2 from external sources such as an A/V receiver, a tuner, a tape deck or a CD player, or you may simply place a CD in one deck, and make a copy using a recordable CD in the other deck. Designed and engineered by Harman Kardon, the CDR 2 is the worldÕs first audio CD recorder with 4x speed capability. This means that it will take only 15 minutes to copy a 60-minute disc. The CDR 2 not only records with the highest speed and quality available but it is also an audiophile CD player. Through the use of AKM digital-to-analog converters (DACs), the CDR 2Õs performance rivals the most sophisti- cated high-end players. Should you wish to bypass the internal DACs and use an external digital processor, both coax and optical-digital outputs are available. Thanks to the CDR 2Õs dual-tray design, you may even play back two separate discs at the same time, for parties or multi-room applications. To make CD playback more enjoyable, the CDR 2 also features a wide range of program and repeat functions. Since CD recorders are a relatively new technol- ogy, this may be your first CD-R product. Although CD recorders resemble play-only CD machines in many ways, there are some impor- tant differences between a standard CD and a CD-R. In addition, making a CD-R recording is also a different process than what you may be familiar with for making audio tape or cassette recordings. For that reason, we encourage you to read through this manual so that you are fully acquainted with the way CD recording works. This small investment in your time will pay major dividends in the enjoyment that will result from proper use of the CDR 2. If you have additional questions about this product Ð its installation or operation Ð that are not answered in this manual, please contact your dealer, who is your best source of local information. You may also contact Harman Kardon via e-mail through our Web site at www.harmankardon.com.Special Features n Dual-Deck CD Player and CD-R/CD-RW Recorder n 4X Dub Speed for Both CD-R and Erasable CD-RW Discs n Audiophile-Grade AKM Digital-to- Analog Converters for Highest Audio Quality n Dual-Play Capability n Extensive Playback Programming Capabilities n Optical and Coaxial Digital Inputs and Outputs nFront-Panel Coaxial Digital Input for Use with Portable Devices n Sample-Rate Convertor Allows Use of DAT Players as Digital Source n Ergonomic Remote ControlImportant Information About CD Recording In order to get the most enjoyment from your new CD-R recorder, please pay special attention to the following sections of the manual that provide information about the special features and capabilities of CD Recorders. n The CDR 2 plays all standard CD audio discs but for recording, the CDR 2 uses special CD-R and CD-RW discs designed only for audio use. CD-R discs designed for computer use will not work in the CDR 2. See page 14 for more information on which types of discs are used with the CDR 2. n The last step in making a CD-R recording is the finalization process. Unless this step is properly done, the disc will not work in other players. See page 22 for information on finalizing discs. n Once finalized, CD-R discs will play in any CD player, but CD-RW discs will only play in the CDR 2 and certain other machines. Check the specifications of your CD player if you have questions about compatibility with CD-RW discs. n As with all CD players, except those designed specifically for portable use, you should never move a CD player while there is a disc inside one of the decks.NEVER move the CDR 2 until discs have been removed from both decks. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To prevent electric shock, do not remove the grounding plug on the power cord, or use any plug or extension cord that does not have a grounding plug provided. Make certain that the AC outlet is properly grounded. Do not use an adapter plug with this product. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
