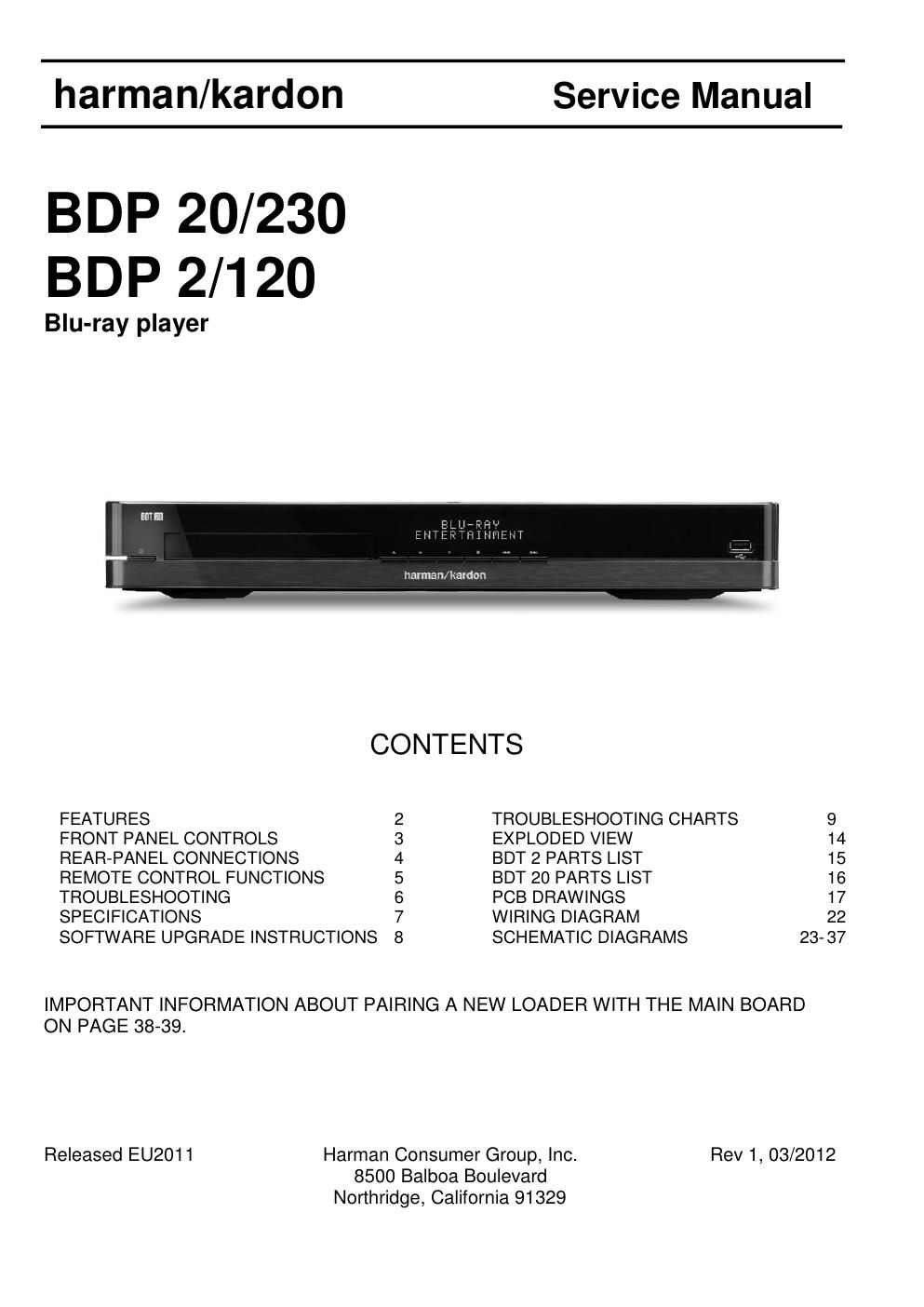

Page 1

harman/kardon Service Manual

BDP 20/230
BDP 2/120

Blu-ray player

L M
F

E:
EVE

harman/kardon

CONTENTS

FEATURES 2 TROUBLESHOOTING CHARTS 9

FRONT PANEL CONTROLS 3 EXPLODED VIEW 14
REAR-PANEL CONNECTIONS 4 BDT 2 PARTS LIST 15
REMOTE CONTROL FUNCTIONS 5 BDT 2O PARTS LIST 16
TROUBLESHOOTING 6 PCB DRAWINGS 17
SPECIFICATIONS 7 WIRING DIAGRAM 22
SOFTWARE UPGRADE INSTRUCTIONS 8 SCHEMATIC DIAGRAMS 23-37

IMPORTANT INFORMATION ABOUT PAIRING A NEW LOADER WITH THE MAIN BOARD
ON PAGE 38-39.

Released EU2011 Harman Consumer Group, Inc. Rev 1, 03/2012
8500 Balboa Boulevard
Northridge, California 91329

Page 2

harman/kardon BDT 2 / BDT 20 Service Manual

BDT 2/ BDT 20 BDT 2/BDT 20 Features

BDT 2/BDT 20 Features Supplied Accessories
Connectivity If any of these items are missing, please contact Harman Kardon Customer Service via
- One HDMI ver. 1.3a with 30/36-bit Deep Color connection www.harmankardon.com.

- One coaxial digital-audio output
- One USB 2.0 port that plays video, audio and photo content from USB devices
- Connects to your LAN (local area network) for BD-Live interactivity via the Internet

Ease of Use
- On-screen menu system
- Dot-matrix front-panel information display Power 0001
I Full-function remote control (Note: The power cord included will
. var de endin on where the unit
Disc Player Features is Sfildf g

- Region coding: Blu-ray Disc Region A/DVD Region 1 (BDT 2 models);
Blu-ray Disc Region B/DVD Region 2 (BDT 20 models)

- Plays five-inch (12cm) and 3-inch (8cm) discs

- Video formats supported: BD-Video (single-layer or double-layer), DVD-Video,
DVD+R/+RW, DVD-Rl-RW, CDDA (CD digital audio), CD-R/RW

- Audio formats supported: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTSD
Digital, DTS-HD' High Resolution Audio, DTS-HD Master Audio, PCM, WMA
(DRM-free version only): WMA9, CBR @192kbps, VBR @ 355kbps, MP3: 32kbps -
320kbps bitrates, including variable bitrate encoding

- Supports JPEG still-image format

0 Supports BD-Live interactivity

- Video upscaling to 720p and 1080p

- Progressive-scan video output

- JPEG resolution supported: five megapixels, 5MB file size
- JPEG still-image rotation in 90-degree increments

- Thumbnail JPEG still-image menu

- Fast play rates: 2x, 4x, 8x, 16x, 32x

0 Slow play rates: 1/2x, 1/4x, 1/8x,1/16x

- Random play (CDs only)

- Repeat play

- Parental-control system with user-programmable password
- Disc recognition for up to 10 discs

- Aspect-ratio adjustment

HDMI cable

Remote control

1%

Two AA batteries
