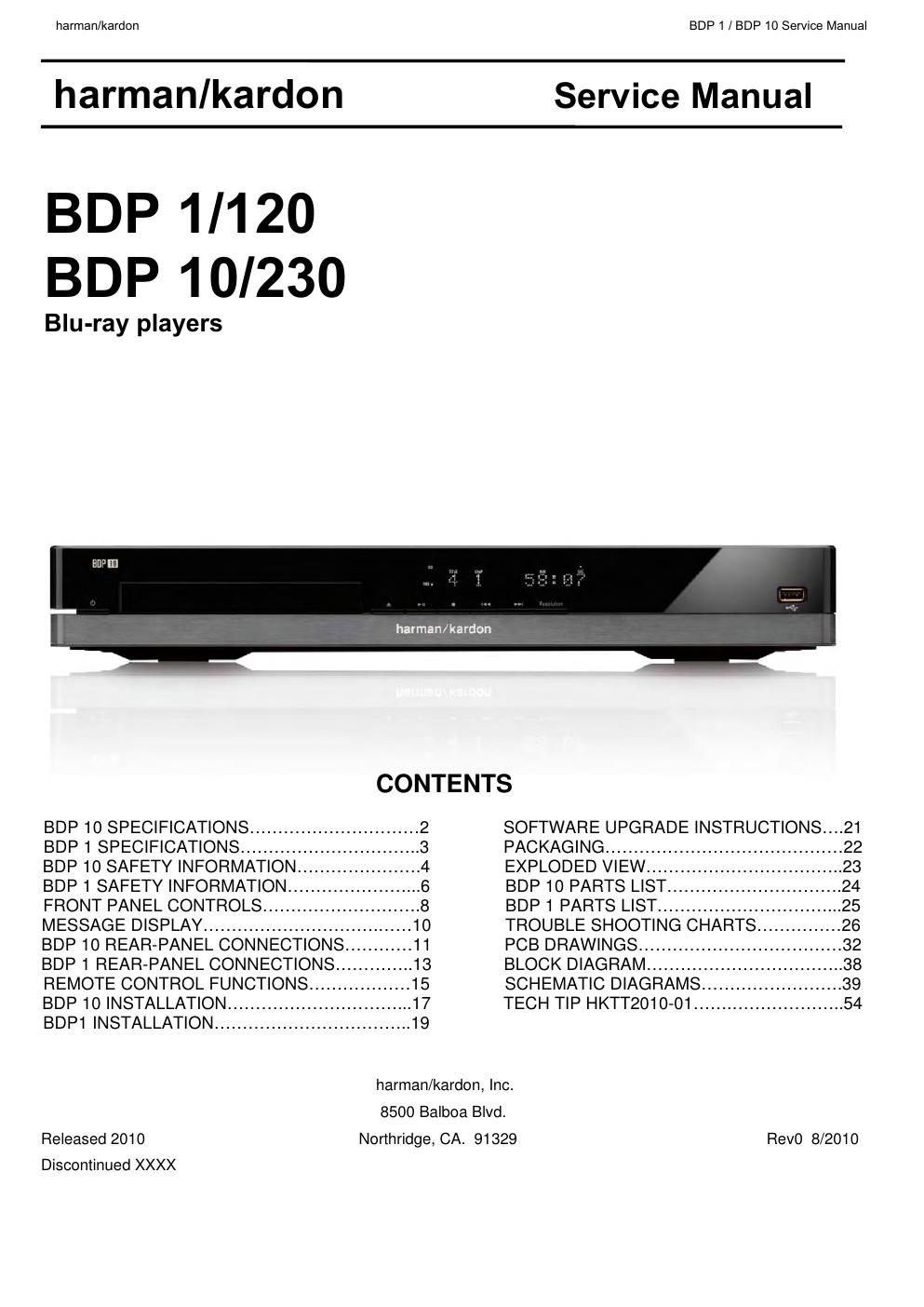

This is the 54 pages manual for harman kardon bdp 1 10.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon bdp 1 10 (Ocr-read)
Page 1
BDP 10 TECHNICAL SPECIFICATIONS Analog Audio Output: 6 2 - 3 K ( Z D " Frequency Response: $ 6 $ , I N E A R 0 # - 2Hz – 22kHz +0/–0.5dB (48kHz sampling) 2Hz – 44kHz +0/–1.5dB (96kHz sampling) 2Hz – 88kHz +0/–0.5dB (192kHz sampling) CD: 2Hz – 20kHz +0/–0.5dB Signal/Noise Ratio (SNR): -100dB (± 3dB), A-weighted Dynamic Range: DVD: 100dB (18-bit)/105dB (20-bit) CD/DVD: 96dB (16-bit) THD/1kHz: DVD/CD: 0.0025% Wow & Flutter: Below measurable limits AC Power: 110-240V AC/50-60Hz Power Consumption: ≤1 Watt (standby)/28 watts (max) Dimensions (H x W x D): 66mm x 440mm x 352mm (2-5/8 x 17-5/16 x 13-7/8) Weight: 3.7kg (8.2 lb) Shipping Dimensions (H x W x D): 149mm x 470mm x 565mm (5-7/8 x 18-1/2 x 22-1/4) Shipping Weight: 5.5kg (12 lb) Please register your product at www.harmankardon.com. Note: Youll ne\ ed your serial number. At the same time, you can choose to be notified abou\ t new products and/or special promotions. Depth measurement includes knobs, buttons and terminal connections. Heig\ ht measurement includes feet and chassis. All features, specifications and apperance are subject to change without notice. Harman Kardon and Logic 7 are trademarks of Harman International Industr\ ies, Incorporated, registered in the United States and/or other countries. Designed to Ente\ rtain is a trademark of Harman International Industries, Incorporated. BD-Live, the BD-LIVE logo, Blu-ray Disc, the Blu-ray Disc\ logo, BonusView and the BONUSVIEW logo are trademarks of the Blu-ray Disc Association. $ O L B Y A N D 0 R O , O G I C A R E R E G I S T E R E D T R A D E M A R K S A N D T H E D O U B L E $ S Y M B O L A N D - , 0 , O S S L E S S are trademarks, of Dolby Laboratories. DTS, DTS-ES, DTS Neo:6, DTS 96/24 and DTS Digital Surround are registere\ d trademarks A N D T H E $ 4 3 L O G O S 3 Y M B O L $ 4 3 ( $ $ 4 3 ( $ - A S T E R ! U D I O $ 4 3 ( $ ( I G H 2 E S O L U T I O N Audio, DTS-HD High Res Audio and DTS-HD Advanced Digital Out are tradema\ rks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved. - A N U F A C T U R E D U N D E R L I C E N S E U N D E R 5 3 0 A T E N T S 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and w\ orldwide patents issued & pending. HD-DVD and the DVD logos are trademarks of the DVD Format/Logo Licensing\ Corporation (DVD FLLC). ( $ - ) ( I G H $ E F I N I T I O N - U L T I M E D I A ) N T E R F A C E I S A T R A D E M A R K O R R E G I S T E R E D T R A D E M A R K O F ( $ - ) Licensing LLC. iPod is a trademark of Apple Inc., registered in the U.S. and other coun\ tries. Java and all Java-based trademarks and logos are trademarks or registere\ d trademarks of 3 U N - I C R O S Y S T E M S ) N C I N T H E 5 3 A N D O T H E R C O U N T R I E S Kodak is a registered trademark, and Photo CD is a trademark, of Eastman\ Kodak Company. DivX, DivX Certified, and associated logos are trademarks of DivX Networ\ ks, Inc and are used under license. - I C R O S O F T 7 I N D O W S A N D 7 I N D O W S - E D I A A R E R E G I S T E R E D T R A D E M A R K S O F - I C R O S O F T # O R P O R A T I O N I N T H E 5 N I T E D 3 T A T E S A N D O R O T H E R C O U N T R I E S 7 - ! 7 I N D O W S - E D I A ! U D I O I S A P R O P R I E T A R Y F I L E F O R M A T D E V E L O P E D B Y - I C R O S O F T SACD is a trademark of Sony Corporation. x.v.Color and the x.v.Color logo are trademarks of Sony \ Corporation. This product incorporates copyright protection technology that is protec\ ted by U.S. patents and other intellectual property rights. Use of this copyright protection\ technology must B E A U T H O R I Z E D B Y - A C R O V I S I O N A N D I S I N T E N D E D F O R H O M E A N D O T H E R L I M I T E D V I E W I N G U S E S O N L Y U N L E S S O T H E R W I S E A U T H O R I Z E D B Y - A C R O V I S I O N 2 E V E R S E E N G I N E E R I N G O R D I S A S S E M B L Y I S prohibited. Applicable Disc: Disc Formats: 12cm (5) or 8cm (3) BD-Video, DVD-Video, standard-conforming DVD-R, DVD+R, DVD-RW $ 6 $ 2 7 $ 6 $ 2 ! - # $ # $ 2 # $ 2 7 $ I V 8 O R - 0 D I S C S Region Code: BD-Video disc with Code B or Open Region DVD- Video disc with Code 2 or 0 only DVD Layers: Single-side/single-layer, single-side/dual-layer, dual-side/dual-layer Video Format: - 0 % ' - 0 % ' ! 6 # ( 3 - 0 4 % 6 # (VC-9) Audio Formats: Dolby ® TrueHD; Dolby Digital Plus; Dolby Digital; $ 4 3 ( $ - A S T E R ! U D I O
Page 2
32 Applicable Disc: Disc Formats: 5" (12cm) or 3" (8cm) BD-Video, DVD-Video, standard-conforming DVD-R, DVD+R, DVD-RW, DVD+RW, DVD-RAM, CD, CD-R, CD-RW or MP3 discs Region Code: BD-Video disc with Code A or Open Region DVD-Video disc with Code 1 or 0 only DVD Layers: Single-side/single-layer, single-side/ dual-layer, dual-side/dual-layer Video Format: MPEG-2, MPEG-4 AVC (H.264), SMPTE VC1 (VC-9) Audio Formats: Dolby ®TrueHD; Dolby Digital Plus; Dolby Digital; DTS-HD Master Audio ™(pass- through only); LPCM; MPEG-1 and 2, layer 2; MP3; Windows Media ®9 Still-Image format: JPEG Video Signal System: NTSC HDMI ™Output: Video: up to 1080p HDMI ™: (V.1.3a with x.v.Color ™, Dolby TrueHD, DTS-HD Master Audio and PCM up to 7.1 channels) HDCP: version 1.1-compliant Composite Video Output: 1V p-p/ 75 ohms, sync negative polarity Component Video Output: Y: 1V p-p/ 75 ohms, sync negative polarity Pr: 0.7 V p-p/ 75 ohms Pb: 0.7 V p-p/ 75 ohms Analog Audio Output: 2V RMS (1kHz, 0dB) Frequency Response: DVD (Linear PCM): 2Hz – 22kHz +0/–0.5dB (48kHz sampling) 2Hz – 44kHz +0/–1.5dB (96kHz sampling) 2Hz – 88kHz +0/– 0.5dB (192kHz sampling) CD: 2Hz – 20kHz +0/–0.5dB Signal/Noise Ratio (SNR): – 100dB ( ±3dB), A-weighted Dynamic Range: DVD: 100dB (18-bit )/105dB (20-bit ) CD/DVD: 96dB (16-bit ) THD/1kHz: DVD/CD: 0.0025% Wow & Flutter: Below measurable limits AC Power: 110–240V AC/50–60Hz Power Consumption: < –1 Watt (standby)/28 watts (max) Dimensions ( H x W x D): 2-5/8" x 17-5/16" x 13-7/8" (66mm x 440mm x 352mm) Weight: 8.2 lb (3.7kg) Shipping Dimensions (H x W x D): 5-7/8" x 18-1/2" x 22-1/4" (149mm x 470mm x 565mm) Shipping Weight: 12 lb (5.5kg) Please register your product at www.harmankardon.com. Note: Youll need your serial number. At the same time, you can choose to be notified about new products and/or special promoti\ ons. BDP 1 TECHNICAL SPECIFICATIONS Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. Features, specifications and appearance are subject to change without notice. Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Designed to Entertain is a trademark of Harman International Industries, Incorporated. BD-Live, the BD-LIVE logo, Blu-ray Disc, the Blu-ray Disc logo, BonusView and the BONUSVIEW logo are trademarks of the Blu-ray Disc Association. Dolby and Pro Logic are registered trademarks, and the double-D symbol and MLP Lossless are trademarks, of Dolby Laboratories. DTS, DTS-ES, DTS Neo:6, DTS 96/24 and DTS Digital Surround are registered trademarks and the DTS logos, Symbol, DTS-HD, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS-HD High Res Audio and DTS-HD Advanced Digital Out are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved. Manufactured under license under U.S. Patent #s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and worldwide patents issued & pending. HD-DVD and the DVD logos are trademarks of the DVD Format/Logo Licensing Corporation (DVD FLLC). HDMI (High-Definition Multimedia Interface) is a trademark or register\ ed trademark of HDMI Licensing LLC. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Java and all Java-based trademarks and logos are trademarks or registere\ d trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Kodak is a registered trademark, and Photo CD is a trademark, of Eastman Kodak Company. Microsoft, Windows and Windows Media are registered trademarks of Microsoft Corporation in the United States and/or other countries. WMA (Windows Media Audio) is a proprietary file format developed by Microsoft. SACD is a trademark of Sony Corporation. x.v.Color and the x.v.Color logo are trademarks of Sony Corporation. This product incorporates copyright protection technology that is protec\ ted by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless oth\ erwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. TM harman/kardon BDP 1 / BDP 10 Service Manual 3
