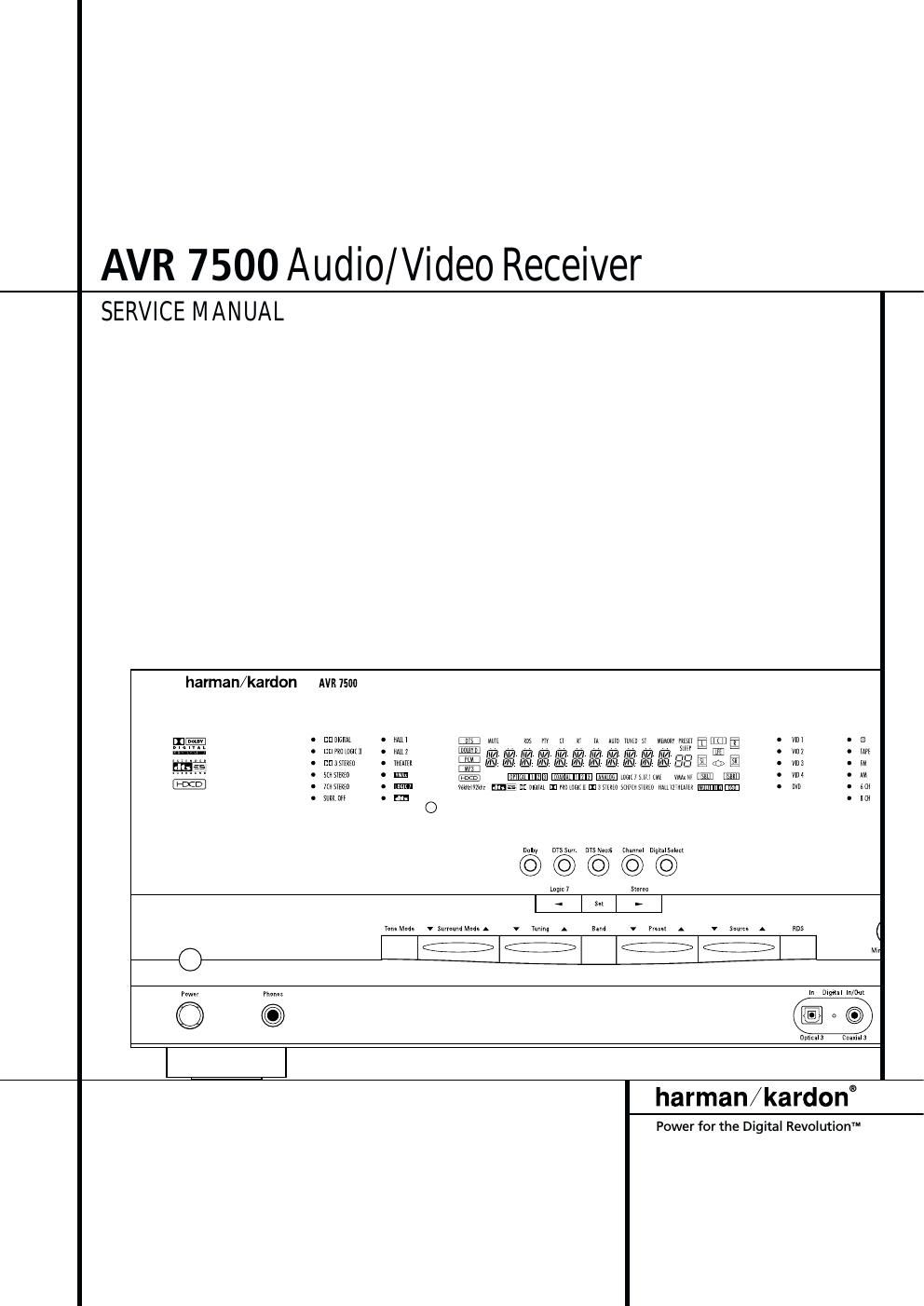

Harman kardon avr 7500

Page 2

Technical Specifications

Audio Section
Stereo Mode
Continuous Average Power (FTC)

1 IOWatts per channel, ZOHz-ZOkHz,
@ < 0.07% THD, both channels driven into 8 ohms

Five-Channel Surround Modes
Power Per Individual Channel

Front L&R channels:
100 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms

Center channel:
100 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms

Surround channels:

100 Watts per channel,

@ < 0.07% THD, ZOHZ-ZOkHz into 8 ohms
Input Sensitivity/Impedance

Linear (High Level) 200mV/47kohms
Signalto-Noise Ratio (lHF-A) 95dB
Surround System Adjacent Channel Separation

Analog Decoding 40dB

(Pro Logic, etc.)

Dolby Digital (AC-3) SSdB

DTS SSdB

Frequency Response
@ 1W (+0dB, -3dB) 10Hz-100kHz

High Instantaneous

Current Capability (HCC) :75 Amps
Transient Intermodulation

Distortion (TIM) Unmeasurable
Rise Time 16 psec

Slew Rate 40V/usec

FM Tuner Section
Frequency Range 87.5-108MH2
Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/65dB (DIN)

Distortion Mono/Stereo: 0.15/0.3%
Stereo Separation 35dB @ 1kHz

Selectivity :300kHz: 65dB

Image Rejection 80dB

IF Rejection 90dB

AM Tuner Section

Frequency Range 522-1611kHz
Signalto-Noise Ratio 45dB

Usable Sensitivity Loop: 500 W
Distortion 1kHz, 50% Mod: 0.8%
Selectivity :9kHz: 30dB

Video Section
Video Format PAL/NTSC
Input Level/Impedance 1Vp-p/75 ohms
Output Level/Impedance 1Vp-p/75 ohms
Video Frequency Response
(Composite and S-Video) 10Hz-8MHz (-3dB)
Video Frequency
Response (Component) 10Hz-35MHZ (-3dB)

General
Power Requirement
Power Consumption

AC 220-240V/50Hz
125W idle, 1100W maximum

Dimensions (Max)

Width 440mm
Height 193mm
Depth 519mm
Weight 22.3 kg

Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a
trademark, of Harman International Industries, Inc.

IIIIEISet' is a trademark of Harman International Industries, Inc.
(Patent No. 5,386,478).

*Manufactured under license from Dolby Laboratories.

Dolby," "Pro Logic," "Pro Logic II" and the DoubIe~D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. ©1992-1999 Dolby Laboratories, Inc. All rights reserved.

DTS and DTS Surround, DTS-ES and DTS Neo:6 are trademarks of Digital Theater
Systems, Inc.

UltraStereo is a trademark of UltraStereo Corp.

VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.

Logic 7 is a registered trademark of Lexicon, Inc.
Crystal is a registered trademark of Cirrus Logic Corp.
HDCD is a registered trademark of Pacific Microsonics, Inc.

Without input anti slewing and output isolation networks.
