Harman kardon avr 7300 owners manual
This is the 60 pages manual for harman kardon avr 7300 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 7300 owners manual (Ocr-read)

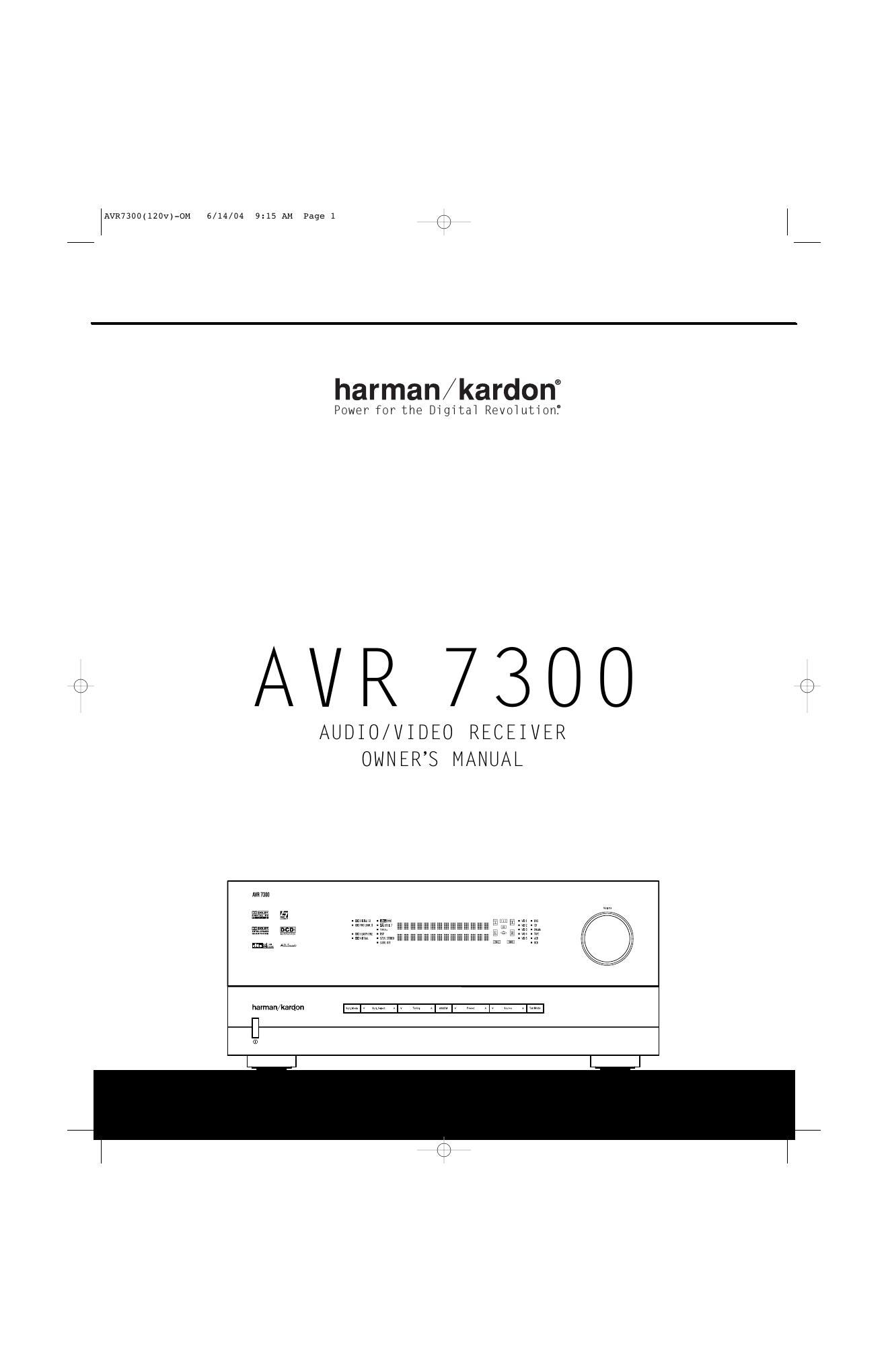

Page 1
AVR 7300 AUDIO/VIDEO RECEIVER 3Introduction 4Important Safety Information 4Unpacking 5Front-Panel Controls 9Rear-Panel Audio Connections 11Video and System Connections 13Main Remote Control Functions 17Zone II Remote Control Functions 18Installation and Connections 21System Configuration 21Speaker Placement 21System Setup 23Input Setup 24Audio Setup 24Surround Select and Setup 26Speaker Setup 28Delay Settings 29Output Level Adjustment 30Tone Control 31Video Setup 32Advanced Video Configuration 34Operation 34Basic Operation 34Source Selection 35Volume and Tone Control 35Video Processing 35Surround Mode Selection 35Digital Audio Playback 36Surround Mode Chart 39Tuner Operation 40Recording 40Front-Panel Connections 40Output Level Trim Adjustment 42Advanced Features 42Front-Panel Display Fade 42Display Brightness 42Turn-On Volume Level 42Semi-OSD Settings 43Full-OSD Time-Out Adjustment 44Multiroom Operation 44Multiroom Setup 44Surround Amplifier Channel Assignment 45Multiroom Operation 46Configuring the Remote 46Programming Remote Codes 47Learning Commands 48Changing Devices 49Macro Programming 51Punch-Through Configuration 52EzSet Configuration 53 Renaming 54Resetting the Remote 56Troubleshooting Guide 57Appendix and Worksheets 59Technical Specifications See trademark acknowledgements on page 59. Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE– (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE– (OCR type) indicates a message that is visible on-screen or on the front-panel information display EXAMPLE– (Synchro type) indicates a message that is displayed on the remote controls LCD screen 1– (number in a square) indicates a specific front-panel control – (number in a triangle) indicates a front-panel control that is behind the drop-down door å– (letter in a circle) indicates a rear-panel audio connection A– (letter in a square) indicates a rear-panel video or system connection a– (number in an oval) indicates a button or indicator on the remote å – (letter in an oval) indicates a button on the Zone II remote 1 ®, HDCD ®, High Definition Compatible Digital ®and Pacific Microsonics ™are either registered trademarks or trademarks of Pacific Microsonics, Inc., in the United States and/or other countries. HDCD system manufactured under license from Pacific Microsonics, Inc. AVR7300(120v)-OM 6/14/04 9:15 AM Page 2
Page 2
INTRODUCTION Thank You for Choosing Harman Kardon ® Packed with state-of-the-art features to bring out the best in any audio or video program, the AVR 7300 will be the centerpiece of your home entertainment system for years to come. Thanks to sophisticated tech- nology, the AVR 7300 is able to accommodate virtually any combination of program sources, speakers and room sizes, yet it is easy to set up and operate. In order to take advantage of the power of your new receiver, we strongly recommend that you take a few minutes to read this owners manual and follow the instructions that pertain to the specifics of your listening and viewing environment. If you have any questions about this product, its installation or its operation, we recommend that you contact your dealer or installer, as they are your best source of local information. You may also access a wealth of information and assistance by visiting our Web site at www.harmankardon.com. Description and Features The AVR 7300 is the latest in Harman Kardons more than 50-year tradition of flagship products, establishing a new benchmark for audio/video receivers. Along with a power- ful seven-channel amplifier, extensive digital processing and decoding for virtually any surround mode, a wealth of multizone options, upgradeable software and an easy-to- use LCD remote, the AVR 7300 breaks new ground with its built-in video processing using award-winning technology from Faroudja. ® The AVR 7300 offers multiple digital audio inputs for use with the latest program sources, along with standard analog audio inputs that may be used as an automatic fall-back when a digital input stream is interrupted. Of course, 7.1 direct audio inputs are available for use with high-resolution audio sources such as DVD-Audio and SACD, ™while pre- amp outputs and a trigger jack make it easy to add optional, external power amplifiers. On the video side, three assignable 100MHz, wide-bandwidth component video inputs are at your disposal for use with the high-definition products. All five video inputs may also be renamed in the on-screen displays to reflect a product or source device name. Digital and analog outputs make it easy to integrate recorders, with discrete digital outputs and switchable ana- log audio/video jacks ready for connection to portable recorders. The AVR 7300 offers all the latest surround modes from Dolby Laboratories and DTS, including Dolby* Pro Logic* IIxand DTS ®96/24. For installations where less than a full complement of surround speakers is available, the AVR 7300 offers both Dolby Virtual Speaker and Harman Internationals own VMAx ®technology. A Harman Kardon exclusive in receivers is the latest version of our proprietary Logic 7 ®processing, as found in both high-end processors and the premium sound systems in many of the worlds greatest automobiles. Logic 7 creates a wider, more enveloping sound field and more definedchannel positioning from both conventional two-chan- nel and matrix-encoded surround programming. Advanced sound technology even extends to the head- phone jack, where Dolby Headphone circuitry is available to create an amazing sense of openness with head- phones. In recognition of the importance of video in advanced home theater systems, the AVR 7300 offers a wide range of video processing options, thanks to DCDi ™by Faroudja processing, which upsamples incoming composite and S-Video to 480P for simple connections with todays digital ready HDTV displays. A wide range of video pro- cessing options improve video quality, and exclusive to Harman Kardon, these settings may be individually cus- tomized for each video input, rather than applied globally. Closing the loop between audio and video, the AVR 7300 includes an A / V Sync feature to delay the audio for each input so that it is brought back into sync with the picture. The AVR 7300s multizone options and a standard Zone II remote make it easy to extend music and video through- out your home, listening to one source in the main home theater area and a second, separate source in other rooms. Thanks to assignable rear surround channel ampli- fiers, you may create a basic remote room listening zone with only the addition of speakers and some wire. The units multiroom outputs may also be used to feed an external power amplifier. For one-cable connectivity, the AVR 7300 is A-BUS Ready, ®requiring only a single Category 5/5e cable and an optional in-wall module to deliver volume control, remote control capability and amplifier power to two additional rooms. The AVR 7300 routes both video and audio to a remote room, and thanks to the downmix option, you may even send an analog feed to remote rooms, even when the original source is digital audio. Finishing touches for the AVR 7300 include all the extras you expect from a flagship receiver: Harman Kardons patented EzSet remote with an LCD display, an RS-232 port for bi-directional remote control and software upgradeability and much, much more. Combining state-of- the-art digital processing with the proven performance of Harman Kardons high-current, ultrawide bandwidth amplifier design, the AVR 7300 is truly the latest landmark product in Harman Kardons more than 50-year history of delivering the finest in home audio/video products.DCDi ™by Faroudja ®video processing and upscaling customize the video output to match your display for the highest video quality, regardless of the input source. All video parameters are adjustable separately for each video input. All popular digital and matrix surround modes, including Dolby* Digital, Dolby Digital EX, Dolby Pro Logic* IIx, DTS, ®DTS-ES ®Discrete and Matrix, DTS Neo:6 ®and DTS 96/24. Harman Kardons exclusive Logic 7 ®processing, along with a choice of either Dolby Virtual Speaker or VMAx ®processing for use when only two speakers are available. Dolby Headphone to create spacious, open sound fields when using headphones. HDCD ®decoding for enhanced CD playback, and MP3 decoding for use with compatible computers. High-bandwidth, HDTV-compatible component video inputs may be assigned to any video input. Full bass management for all inputs, including the analog direct inputs for DVD-Audio and SACD ™players, including Quadruple Cross- over and individual settings for each input. A/V Sync delay adjustable for each input delivers perfect lip sync with digital programs or video displays. Front-panel analog audio/video jacks may be used as either inputs or outputs for connection to portable products or video game consoles. Dedicated front-panel optical and coaxial digi- tal audio outputs. Extensive Multiroom options, including a standard Zone II remote, assignable rear- channel amplifier channels and A-BUS Ready ® capability for listening to a separate source in a remote zone. Easy-to-program remote with two- line LCD display automatically sets output levels for optimal performance. For Canadian model Modèle pour les Canadien Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Sur les modèles dont la fiche est polarisee: ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusquau fond. This class B digital apparatus complies with Canadian ICES-003. For models having a power cord with a polarized plug: CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. INTRODUCTION 3 AVR7300(120v)-OM 6/14/04 9:15 AM Page 3
