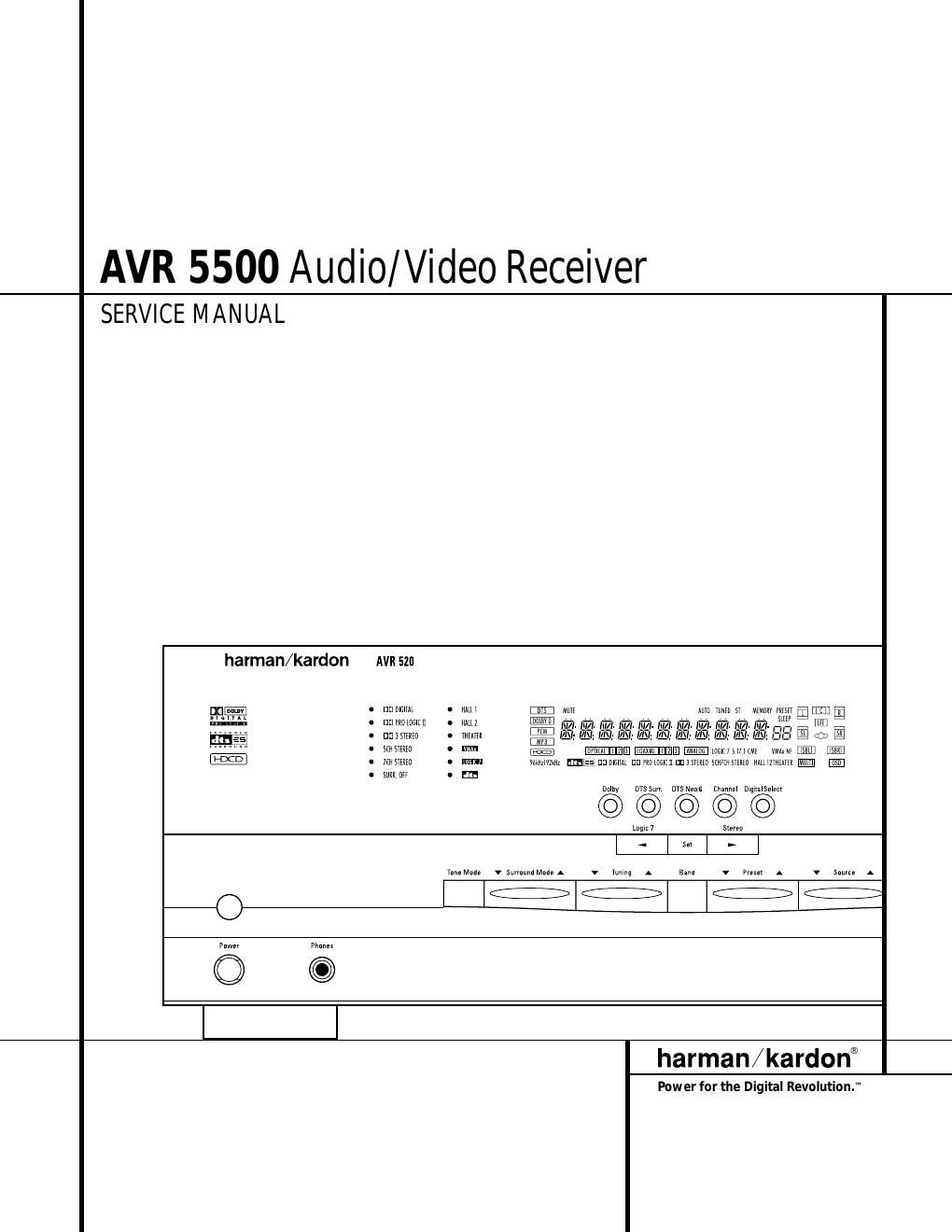

Harman kardon avr 5500 service manual

Page 2

Technical Specifications

Audio Section
Stereo Mode
Continuous Average Power (FTC)
85 Watts per channel, 20Hz-20kHz,
@ < 0.07% THD, both channeis driven into 8 ohms
Five-Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
75 Watts per channel
@ < 0.07% THD, 20Hz-20kHz into 8 ohms

Center channel:
75 Watts @ < 0.07% THD, 20Hz-20kHz into 8 ohms

AM Tuner Section
Frequency Range
Signal»to-Noise Ratio
Usable Sensitivity
Distortion
Seiectivity

Video Section
Television Format
Input Level/Impedance
Output Level/Impedance
Video Frequency Response
(Composite and 5)

520-1710kHz

45 dB

Loop SOOuV

1kHz, 50% Mod 0.8%
:10kHz, 30dB

PAL
1Vp»p/75 ohms
1Vp»p/75 ohms

10HZ-8MHZ (-3dB)

Surround channels:
75 Watts per channel

@ < 0.07% THD, 20Hz-20kHz into 8 ohms

Input Sensitivity/Impedance
Linear (High-Level)

Signal»to-Noise Ratio (IHF-A)

200mV/47k ohms
95dB

Surround System Adjacent Channei Separation

Analog Decoding 40dB
(Pro Logic II, etc.)

Dolby Digital (AC-3) 55dB
DTS 55dB

Frequency Response
@ 1W (+0dB, - 3dB)

High Instantaneous
Current Capability (HCC)

Transient Intermoduiation
Distortion (TIM)

10Hz - 100kHz

:45 Amps

Unmeasurable

Rise Time 16 usec

Slew Rate 40V/usec

FM Tuner Section
Frequency Range 87.5-108MHZ
Usabie Sensitivity IHF 1.3 uV/13.2dBf
Signai-to»Noise Ratio Mono/Stereo 70/68dB
Distortion Mono/Stereo 0.2/0.3%
Stereo Separation 40dB @ 1kHz
Selectivity :400kHz, 70dB
Image Rejection 80dB
IF Rejection 90dB

Tuner Output Levei

1kHz, t75kHz Dev 500mV

Video Frequency Response

(Component) 10Hz-35MHZ (-3dB)
General

Power Requirement AC 230V/50Hz

Power Consumption W idle, W maximum

(2 channels driven)

Dimensions (Max)
Width 17.3 inches (440mm)
Height 6.5 inches (165mm)
Depth 17.1 inches (435mm)

Weight 35 Ib (15.9 kg)

Depth measurement includes knobs, buttons and terminal connections.
Height measurement inciudes feet and chassis.
Ail features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the Digitai Revoiution is a trademark, of
Harman Kardon, Inc.

iiIllElSet" is a trademark of Harman International Industries, Inc. (Patent No. 5,386,478).

*M anufactured under iicense from Dolby Laboratories.

"Dolby," "Pro Logic," "Pro Logic II" and the Double-D symbol are
trademarks of Doiby Laboratories. Confidential Unpublished
Works. ©1992-1999 Doiby Laboratories, Inc.A|i rights resented.

DTS, DTS Surround, DTS-ES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
UltraStereo is a trademark of UltraStereo Corp.

VMAx is a registered trademark of Harman Internationai Industries, Inc., and is an
implementation of Cooper Bauck Transaurai Stereo under patent iicense.

Logic 7 is a registered trademark of Lexicon, Inc.
Crystai is a registered trademark of Cirrus Logic Corp.

HDCD system manufactured under license from Pacific M icrosonics, Inc. This product is
covered by one or more of the foliowing: In the USA: 5,479,168; 5,638,074: 5,640,161; 5,808,574:
5,838,274; 5,854,600; 5,864,311; 5,872,531; and in Australia: 669114. Other patents pending.

TECHNICAL SPECIFICATIONS
