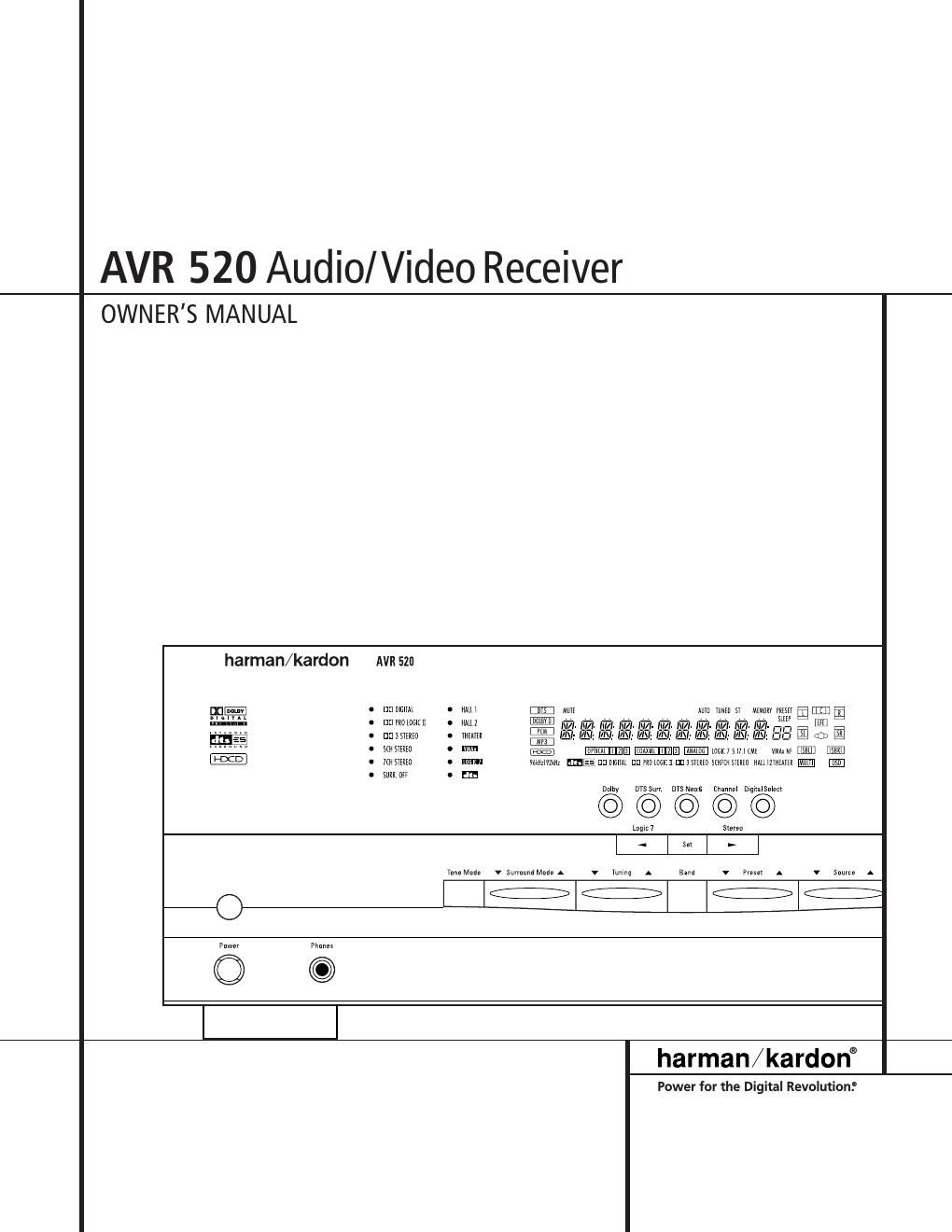

Harman kardon avr 520 owners manual

Page 1

2 TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking 5 Front Panel Controls 8 Front Panel Information Display 10 Rear Panel Connections 12 Main Remote Control Functions 15 Zone II Remote Control Functions 16 Installation and Connections 18 System Configuration 18 Speaker Placement 19 System Setup 20 Input Setup 20 Surround Setup 22 Speaker Setup 23 Delay Settings 24 Output Level Adjustment 25 Manual Output Level Adjustment 26 Operation 26 Surround Mode Chart 28 Basic Operation 28 Source Selection 28 Surround Mode Selection 29 Digital Audio Playback 31 Tuner Operation 32 Tape Recording 32 Front Panel Input/Output Connections 32 Output Level Trim Adjustment 33 6/8-Channel Direct Input 34 Advanced Features 34 Display Brightness 34 Turn-On Volume Level 34 Semi-OSD Settings 36 Multiroom Operation 37 Programming the Remote 37 Direct Code Entry 37 Auto Search Method 37 Code Readout 37 Learning Codes 38 Erasing Learned Codes 38 Macro Programming 39 Programmed Device Functions 40 Volume Punch-Through 40 Channel Control Punch-Through 41 Reassigning Device Control Selectors 42 Function List 44 Setup Code Tables 54 Troubleshooting Guide 54 Processor Reset 55 Technical Specifications AVR 520 Audio/ Video Receiver Typographical Conventions In order to help you use this manual with the remote control, front panel controls and rear panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front panel button, or rear panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on-screen or on the front panel information display 1 – (number in a square) indicates a specific front panel control ¡ – (number in a circle) indicates a rear panel connection a – (number in an oval) indicates a button or indicator on the remote A – (letter in a square) indicates an indicator in the front panel display å – (letter in an oval) indicates a button on the Zone II remote
