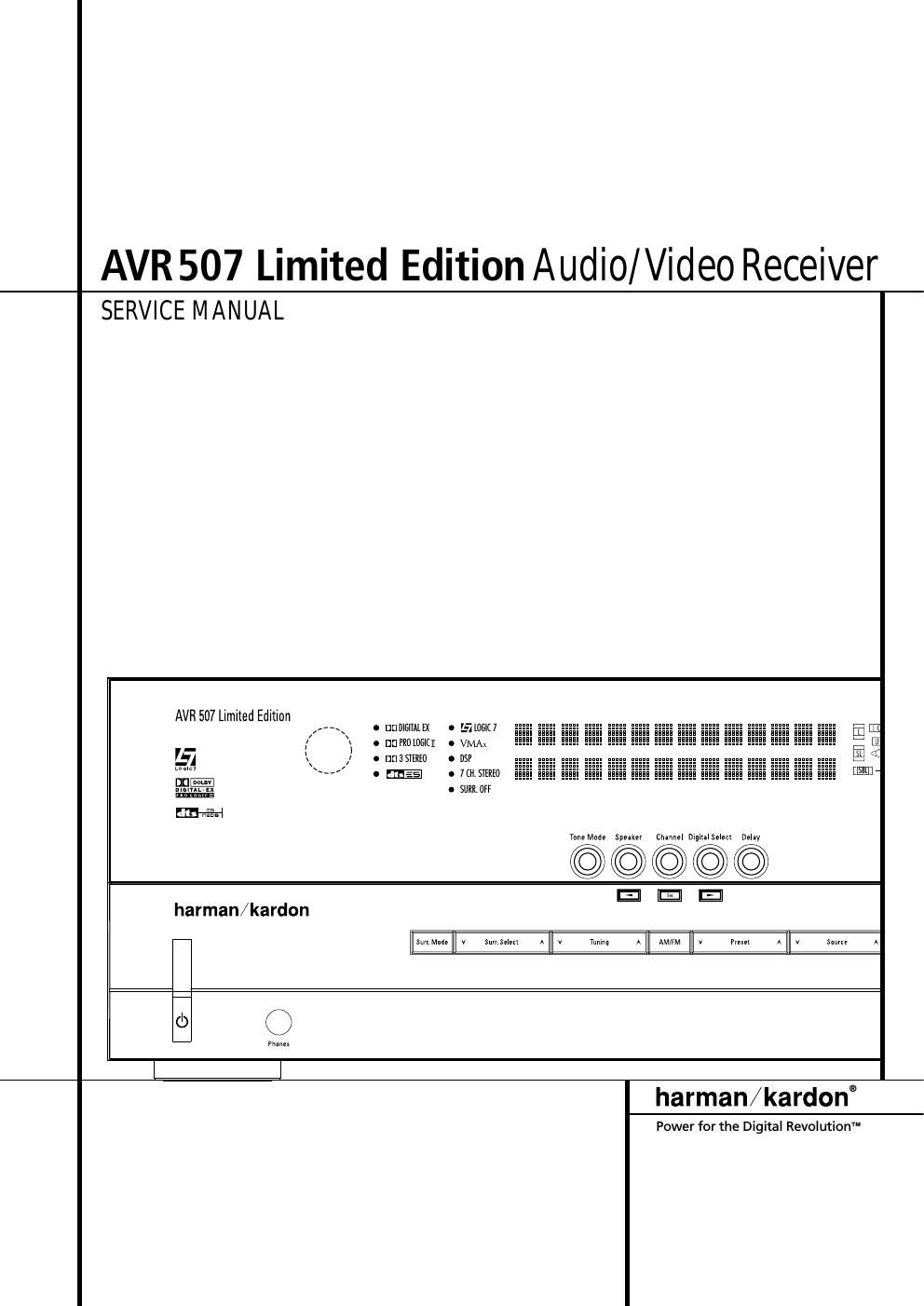

Harman kardon avr 507 230
This is the 69 pages manual for harman kardon avr 507 230.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 507 230 (Ocr-read)
Page 2
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
65 Watts per channel, 20Hz-20kHz,
@ < 0.07% THD, both channels driven into 8 ohms
5/7 Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
50 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Center channel:
50 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms
Surround (L & R Side, L & R Back) channels:
50 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signalto-Noise Ratio (lHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB
Frequency Response
@ IW (+OdB, -3dB) IOHz-I OOkHz
High Instantaneous
Current Capability (HCC) :30 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/psec
FM Tuner Section
Frequency Range 87.5-108MH2
Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN)
Distortion Mono/Stereo: 0.2/0.3%
Stereo Separation 40dB @ IkHz
Selectivity :400kHz: 70dB
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 522-161 I kHz
Signalto-Noise Ratio 45dB
Usable Sensitivity Loop: 500 W
Distortion IkHz, 50% Mod: 0.8%
Selectivity :IOkHz: 30dB
Video Section
Video Format PAL/NTSC
Input Level/Impedance IVp-p/75 ohms
Output Level/Impedance IVp-p/75 ohms
Video Frequency Response
(Composite and S-Video) IOHz-8MHz (-3dB)
Video Frequency
Response (Component) IOHz-SOMHZ (-3dB)
General
Power Requirement AC 220-240V/50Hz
Power Consumption 118W idle, 890W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm
Height 165mm
Depth 382mm
Weight 14.0 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of
Harman International Industries, Inc.
lllIEzSEt' is a trademark of Harman International Industries, Inc.
(Patent No. 5,336,478).
Manufactured under license from Dolby Laboratories.
"Dolby," Pro Logic, "Pro Logic II" and the DoublerD symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. (9199271999 Dolby Laboratories, Inc.AlI rights reserved.
DTS and DTS Surround, DTSVES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
UltraStereo is a trademark of UltiaStereo Corp.
VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
Crystal is a registered trademark of Cirrus Logic Corp.
Without input anti slewing and output isolation networks.
TECHNICAL SPECIFICATIONS 47
