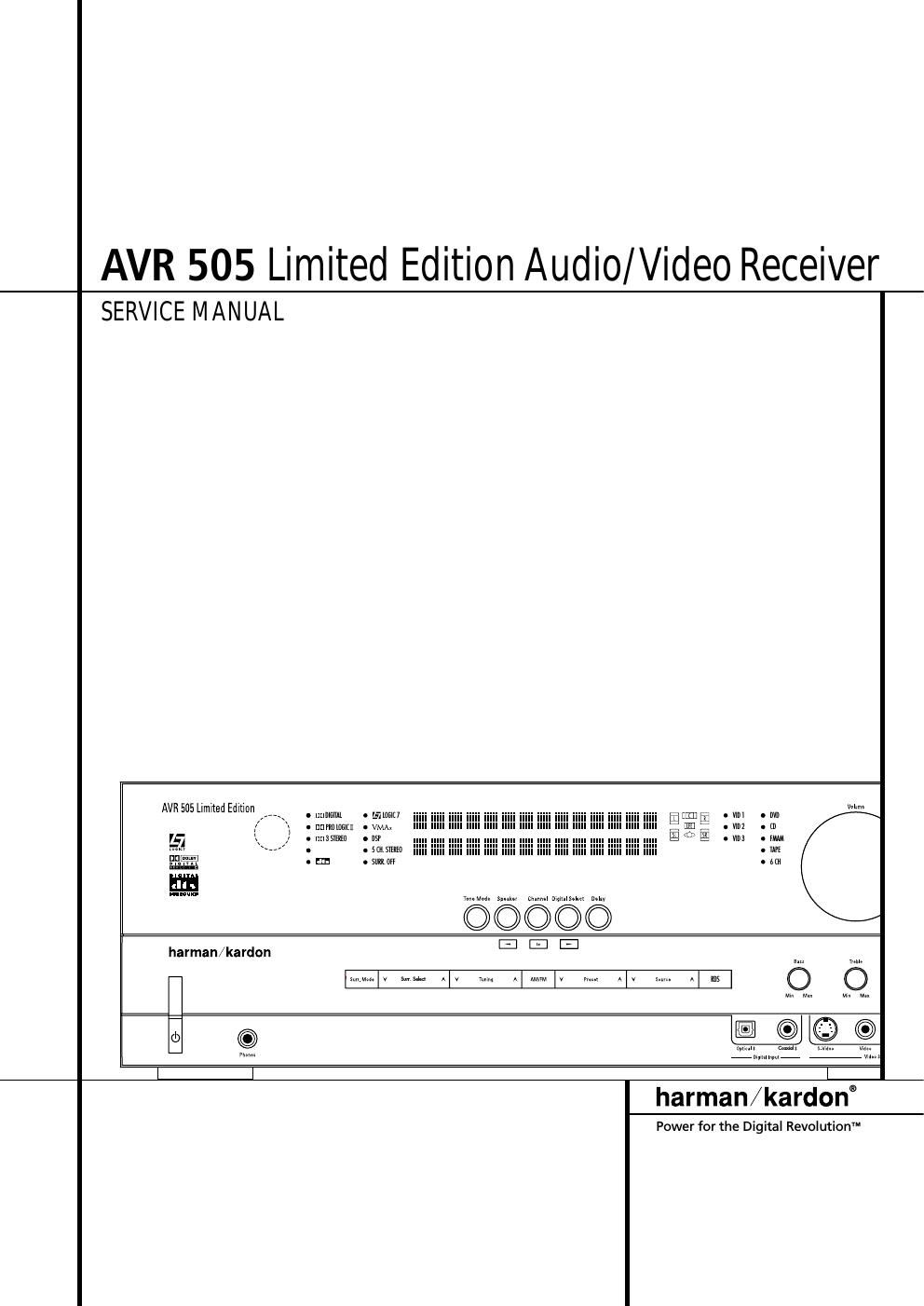

Harman kardon avr 505 service manual
This is the 55 pages manual for harman kardon avr 505 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 505 service manual (Ocr-read)
Page 2
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
50 Watts per channel, 20Hz-20ki-Iz,
@ < 0.07% THD, both channels driven into 8 ohms
Five-Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
40 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Center channel:
40 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms
Surround channels:
40 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signalto-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB
Frequency Response
@ IW (+0dB, -3dB) IOHz- I 00kHz
High Instantaneous
Current Capability (HCC) :25 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/psec
FM Tuner Section
Frequency Range 87.5-108MI-Iz
Usable Sensitivity IHF 1.3 pV/ISldBf
Signal-to-Noise Ratio Mono/Stereo: 70/65d8 (DIN)
Distortion Mono/Stereo: 0. I 5/0.3%
Stereo Separation 35dB @ IkHz
Selectivity i400l
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 522-1720kHz
Usable Sensitivity Loop: 500 W
Video Section
General
Dimensions (Max)
Width 440mm
Depth measurement includes knobs, buttons and terminal connections.
Height measurement incIudes feet and chassis.
AII features and specifications are subject to change without notice.
Harman Kardon is a registered trademark, and Power for the digital revolution is a
*Manufactured under license from Dolby Laboratories.
DoIby, "Pro Logic", and the Double~D symboI are
trademarks of Dolby Laboratories, Inc.
Confidential Unpuinshed Works. (9199271999 Dolby Laboratories, Inc.
Y"DTS" and "DTS Digital Surround" are registered trademarks of
HUItraStereo is a trademark of UItraStereo Corp.
VMAx is a trademark of Harman International Industries, Inc., and is an
Logic 7 is a registered trademark of Lexrcon, Inc.
CrystaI is a registered trademark of Cirrus Logic Corp.
TECHNICAL SPECIFICATIONS
Signalto-Noise Ratio 45 dB
Distortion IkHz, 50% Mod: 0.8%
Selectivity ilOkHZi 30dB
Video Format PAL/NTSC
Input Level/Impedance IVp-p/75 ohms
Output Level/Impedance IVp-p/75 ohms
Video Frequency
Response 10Hz-8MHz (-3dB)
Power Requirement AC 220-240V/50Hz
Power Consumption 72W idle, 580W maximum
(2 channels driven)
Height 168mm
Depth 390mm
Weight 10.9 kg
trademark, of Harman International Industries, Inc.
AII rights reserved.
Digital Theater Systems, Inc.
implementation of Cooper Bauck TransauraI Stereo under patent license.
