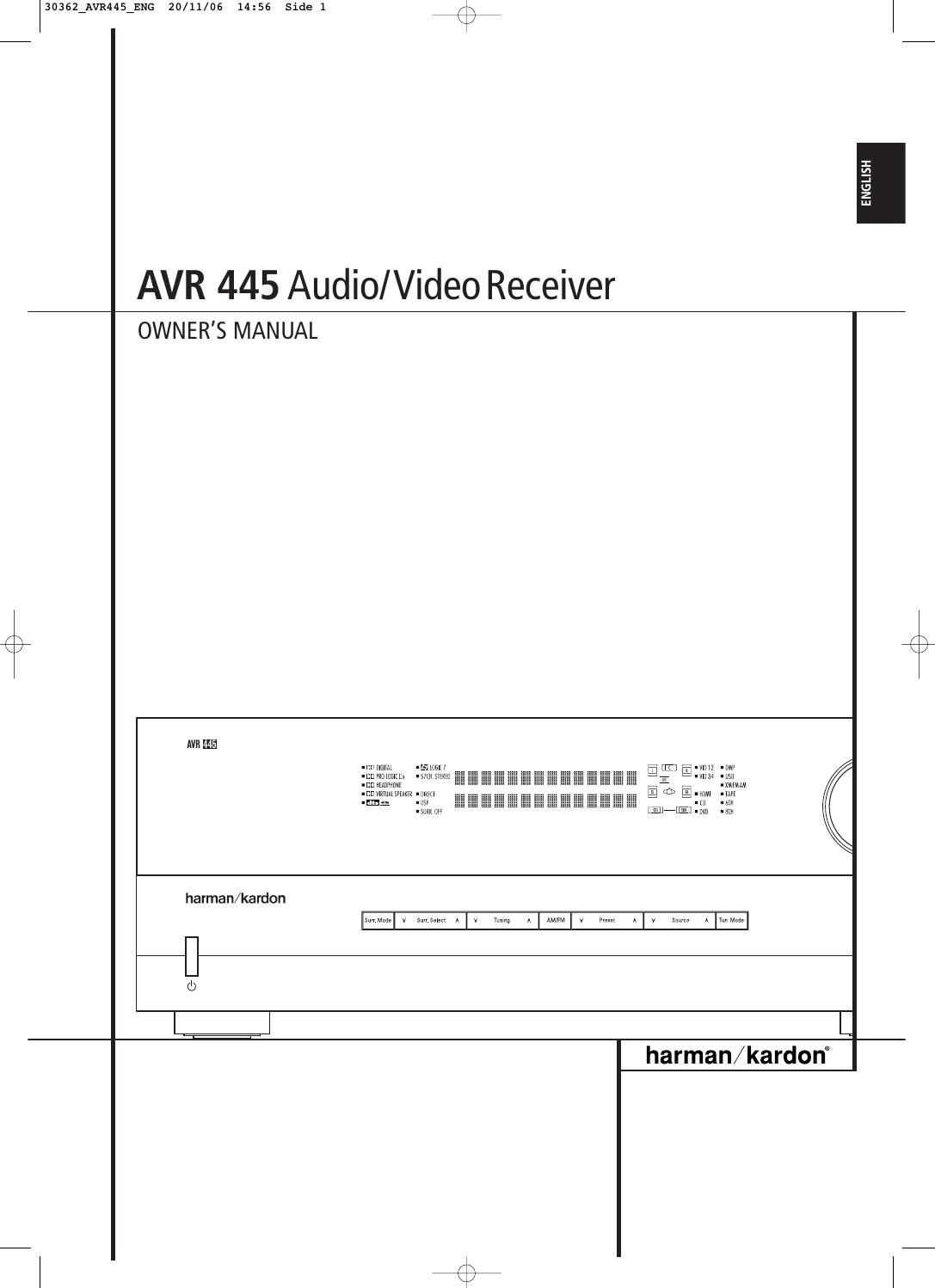

Harman kardon avr 445 owners manual
This is the 66 pages manual for harman kardon avr 445 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon avr 445 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking 5 Front Panel Controls 7 Rear Panel Connections 10 Main Remote Control Functions 14 Zone II Remote Control Functions 16 Installation and Connections 16 Audio Connections 16 Video Connections 17 HDMI Connections 18 SCART A/V Connections 20 System and Power Connections 21 Speaker Selection 21 Speaker Placement 23 System Configuration 23 First Turn On 23 Using the On-Screen Display 23 System Setup 24 In/Out Input Setup 25 Audio Setup 26 Surround Setup 27 Night Mode Settings 28 Using EzSet/EQ 30 Manual Setup 31 Speaker Setup 33 Delay Settings 34 Output Level Adjustment 35 Additional Input Adjustments 36 Operation 36 Surround Mode Chart 38 Basic Operation 38 Source Selection 38 6/8-Channel Direct Input 39 Controls and Use of Headphones 39 Surround Mode Selection 40 Digital Audio Playback 40 Dolby Digital 40 DTS 40 PCM Audio Playback 41 Selecting a Digital Source 41 Digital Bitstream Indicators 41 USB Playback 42 Speaker/Channel Indicators 42 Night Mode 43 Using The Bridge™ 43 Tape Recording 43 Front Panel Input/Output Connections 44 Output Level Adjustment with Source 44 EzSet/EQ Operation on/off Signals 44 Dim Function 44 Memory backup 45 Advanced Features 45 Front Panel Display Fade 45 Display Brightness 45 Turn-On Volume Level 46 Semi-OSD Settings 46 Full-OSD Time Out Adjustment 46 DMP The Bridge Auto Power 47 Multiroom Operation 48 Infrared Output Selection 49 Tuner Operation 49 Basic Tuner Operation 49 Station Selection 49 Preset Tuning 49 RDS Operation Table of Contents Typographical Conventions In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack EXAMPLE – (OCR type) indicates a message that is visible on the front-panel information display EXAMPLE– (Synchro type) indicates a message that is displayed on the remote controls LCD screen 1 – (number in a square) indicates a specific front-panel control – (number in a circle) indicates a rear-panel connection 0 – (number in an oval) indicates a button or indicator on the remote A– (letter in an oval) indicates a button on the Zone II remote 49 RDS Tuning 49 RDS Display Options 50 Program Search 51 Programming the Remote 51 Configuring the Remote 51 Preprogrammed Code Entry 52 Automatic Code Entry 52 Learning Commands 53 Learning Codes for an Input Selector 53 Device Priority 54 Macro Programming 56 Punch-Through Configuration 57 Renaming 59 Resetting the Remote 59 Backlight Options 61 Troubleshooting Guide 61 Processor Reset 62 Appendix 65 Technical Specifications Declaration of Conformity We, Harman Consumer Group, Inc. 2, route de Tours 72500 Château-du-Loir, FRANCE declare in own responsibility, that the product described in this owners manual is in compliance with technical standards: EN 55013:2001+A1:2003 EN 55020:2002+A1:2003 EN 61000-3-2:2000 EN 61000-3-3.1995+A1:2001 EN 60065:2002 Jurjen Amsterdam Harman Consumer Group, Inc. 09/06 The appearance of the text or cursor for your receivers on-screen menus may vary slightly from the illustrations in this manual. Whether the text appears in all uppercase or upper- and lowercase characters, performance and operation remain the same. 30362_AVR445_ENG 20/11/06 14:56 Side 2
Page 2
INTRODUCTION3 ENGLISH Introduction Thank you for choosing Harman Kardon! With the purchase of a Harman Kardon AVR 445 you are about to begin many years of listening enjoyment. The AVR 445 has the most extensive range of audio and video processing, control and connec- tivity options ever offered by Harman Kardon, enabling it to provide the best possible audio and video reproduction with any type of source material. Teaming advanced processing circuitry with proprietary technologies such as EzSet/EQ, the AVR 445 seamlessly integrates every component in your entertainment system to deliver the best possible sound and images. Some of the leading-edge features that are available with the AVR 445, such as HDMI ™ connectivity, are new to even the most experienced home theater enthusiast. To obtain the maximum enjoyment from your new receiver, we urge you to read this manual. A few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the AVR is able to deliver. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer. They are your best local sources of information. Description and Features The AVR 445 serves as the hub of your home entertainment system, providing a wide range of listening possibilities for almost any audio or video program source, whether it is the broad- cast of a movie or sporting event in HDTV or a vintage mono or stereo recording. When playing digital audio sources, the AVR 445 decodes Dolby Digital, Dolby Digital EX, DTS and DTS-ES data streams. Two-channel stereo and matrix surround sources benefit from all current Dolby Pro Logic IIx modes and DTS Neo:6. The latest version of our proprietary Logic 7 ®process is on- board to create a wider, more enveloping sound field and more defined surround channel posi- tioning, regardless of the type of source material. Additional audio playback and processing options include a direct connection to compatible computer-based sources through a direct USB connection.The AVR 445 takes the video part of its name seriously. Along with two HDMI inputs and three 60MHz analog component video inputs, the AVR 445 converts incoming analog signals to compo- nent for single wire connections. Tying audio and video together, the AVR 445 provides A/V sync delay so that the lip sync errors – commonly seen when digital video processing is used in a source, program or video display – are eliminated. Coax and optical digital outputs are available for direct connection to digital recorders, and both the front panel analog audio/video and coaxial digital jacks may be switched to outputs for use with portable recorders – a Harman Kardon exclusive. Two video recording outputs, preamp- out and a color-coded eight-channel input make the AVR virtually future-proof, with everything needed to accommodate tomorrows new for- mats right on board. The AVR 445s flexibility and power extend beyond your main home theater or listening room. The AVR includes a sophisticated multi- zone control system that allows you to select one source for use in the main room and a different one (Audio) in a second room. Complete control over volume is possible with a separate infrared control link. To make it easy to operate the AVR from a remote room, a separate ZR 10 remote is included. Additional multiroom options include the option to assign two of the AVRs output channels to the multiroom system and the ability to link the AVR to innovative A-BUS ®keypads for multiroom operation without the need for external amplifiers. The AVR 445s powerful amplifier uses traditional Harman Kardon high-current design technologies to meet the wide dynamic range of any program selection. Harman Kardon invented the high-fidelity receiver more than fifty years ago. With state-of- the-art circuitry and time-honored circuit designs, the AVR is the perfect combina tion of the latest in digital audio technology, a quiet yet powerful analog amplifier in an elegant, easy-to-use package.■Dolby* Digital, Dolby Digital EX and Dolby Pro Logic* IIx Decoding, and the full suite of DTS ®modes, including DTS-ES ®6.1 Discrete & Matrix and Neo:6®and DTS 96/24. ■Seven channels of high-current amplifi- cation with two channels assignable to either surround back or multiroom applications. ■Harman Kardons exclusive Logic 7 ® processing, along with a choice of Dolby Virtual Speaker processing for use when only two speakers are available. ■Dolby Headphone to create spacious, open sound fields when using head- phones. ■USB connectivity for audio playback with compatible computers and quick system upgrades. ■Two HDMI ™1.1 and three assignable high-bandwidth analog component inputs for compatibility with the latest high-definition video sources. ■Harman Kardons advanced EzSet/EQ automatically configures speaker settings and sets room equalization for quick, easy and accurate system setup. ■High-bandwidth, HDTV-compatible component video switching. ■Front panel analog A/V inputs, switchable to outputs. ■Front panel digital inputs for easy connection to portable digital devices and the latest video game consoles. ■Multiple digital inputs and outputs. ■On-screen menu and display system. ■Extensive multiroom options, including a standard Zone II remote, assignable amplifier channels and A-BUS/ READY ® capability for listening to a separate source in a remote zone. ■6-Channel/8-Channel Direct Input and Preamp Outputs for Easy Expansion and Use with Future Audio Formats. ■Extensive bass management options, including Quadruple Crossover. ■A/V Sync delay adjustable for each input delivers perfect lip sync with digital programs or video displays. 30362_AVR445_ENG 20/11/06 14:56 Side 3
