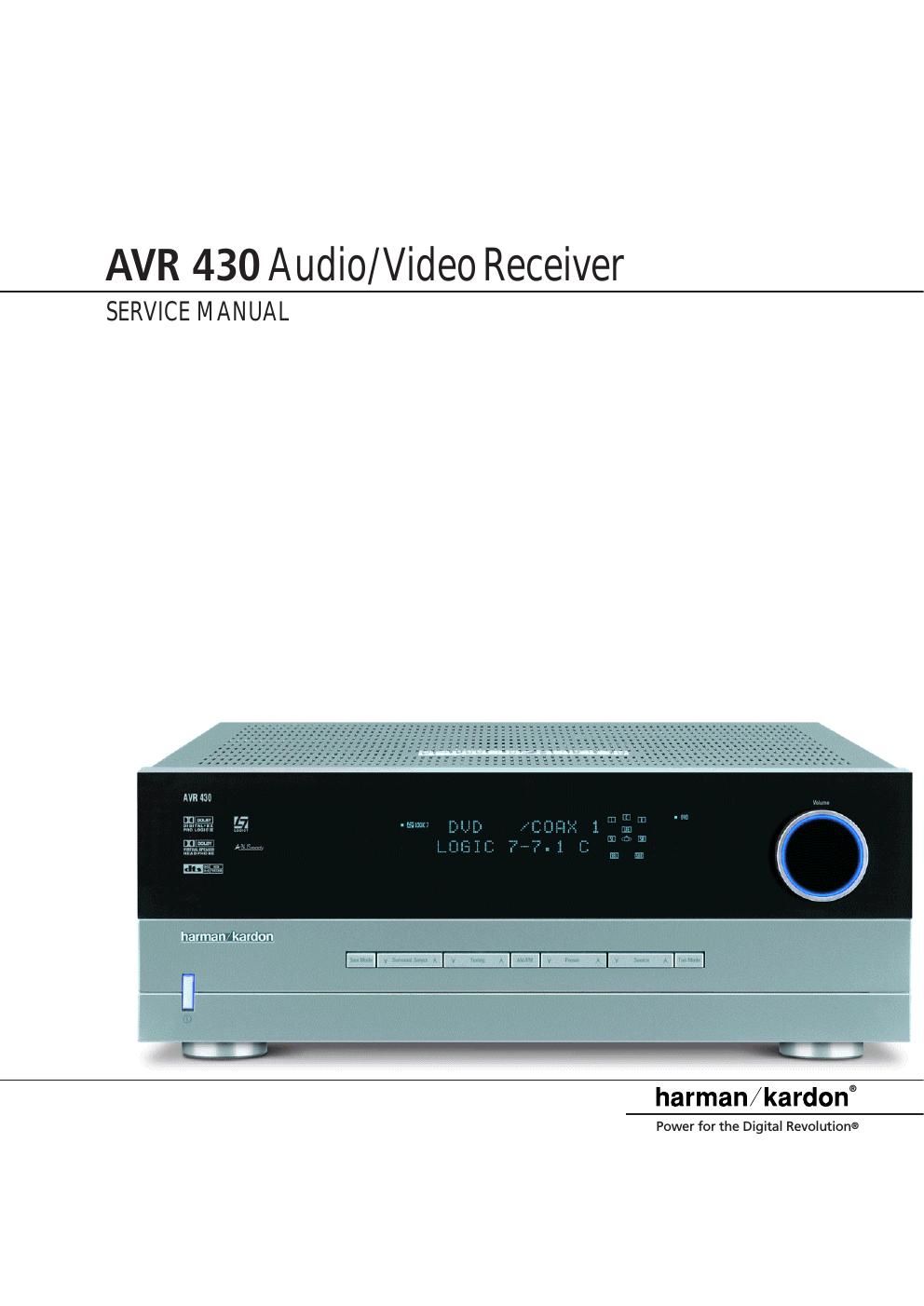

Page 1
AVR 430 Audio/ Video Receiver
SERVICE MANUAL
hallmaualdpn
m_-mm
harman/kardon
Power for the Digital Revolution®
Page 2
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
80 Watts per channel, 20Hz-20kHz,
@ < 0.07% THD, both channels driven into 8 ohms
517 Channel Surround Modes
Power Per Individual Channel
Front L&R channels:
65 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Center channel:
65 Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms
Surround (L & R Side, L & R Back) channels:
65 Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47k0hms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) 55dB
DTS 55dB
Frequency Response
@ IW (+0d B, -3dB) IOHz- I 30kHz
High Instantaneous
Current Capability (HCC) :40 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16 psec
Slew Rate 40V/usec
FM Tuner Section
Frequency Range 87.5-108MH2
Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN)
Distortion Mono/Stereo: 0.15/0.2%
Stereo Separation 40dB @ IkHz
Selectivity :400kHz: 70dB
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 520-1 7IOkHz
Signalto-Noise Ratio 45dB
Usable Sensitivity Loop: 500 W
Distortion IkHz, 50% Mod: 0.8%
Selectivity :IOkHz: 30dB
Video Section
Video Format PAL/NTSC
Input Level/Impedance IVp-p/75 ohms
Output Level/Impedance IVp-p/75 ohms
Video Frequency Response
(Composite and S»Video) IOHz-8MHz (-3dB)
Video Frequency
Response (Component) IOHz-SOMHZ (-3dB)
General
Power Requirement AC 220-240V/50Hz
Power Consumption 59W idle, 940W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm
Height I65mm
Depth 43 5mm
Weight 17.7 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon and Power for the Digital Revolution are registered trademarks of
Harman International Industries, Incorporated.
llllEzSet is a trademark of Harman International Industries, Inc.
(Patent No. 5,386,473).
Manufactured under license from Dolby Laboratories.
"Dolby," Pro Logic, "Pro Logic II" and the DoublerD symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. (9199271999 Dolby Laboratories, |nc.All rights reserved.
DTS and DTS Surround, DTSVES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
ArBUS and ArBUS Ready are registered trademarks of Leisure Tech Electronics Pty Ltd Australia.
Without input anti slewing and output isolation networks.
TECHNICAL SPECIFICATIONS
