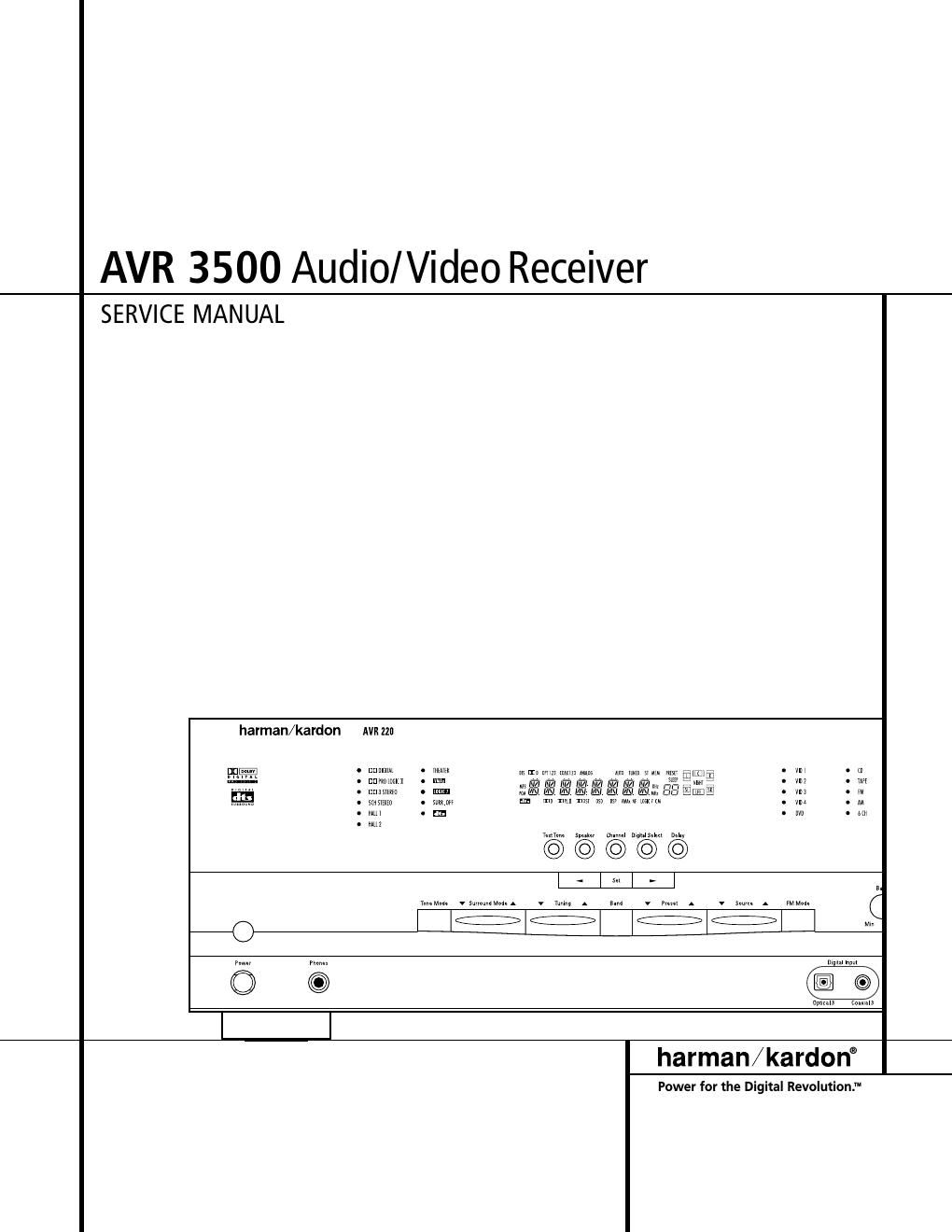

Harman kardon avr 3500

Page 2

Technical Specifications

Audio Section
Stereo M ode
Continuous Average Power (FTC)

55 Watts per channel, @ < 0.07% THD, 20Hz - 20kHz,
both channels driven into 8 ohms

Five-Channel Surround Modes
Power Per Individual Channel

Front L&R channels:
45 Watts per channel
@ < 0.07% THD. 20Hz-20kHz into 8 ohms

Center channel:
45 Watts @ < 0.07% THD. 20Hz-20kHz into 8 ohms

Surround channels:
45 Watts per channel
@ < 0.07% THD. 20Hz-20kHz into 8 ohms

Input Sensitivity/Impedance
Linear (High-Level) 200mV/47k ohms

Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation

Analog Source Decoding 45dB
Dolby Digital 55dB
DTS 55dB

Frequency Response
@ 1W (+0dB, -3dB)

High Instantaneous
Current Capability (HCC)

Transient Intermodulation
Distortion (TIM)

Slew Rate

10Hz»100kHz

:28 Amps

Unmeasurable
40V/usec

FM Tuner Section
Frequency Range
Usable Sensitivity
Signal-to-Noise Ratio
Distortion
Stereo Separation
Selectivity
Image Rejection
IF Rejection

AM Tuner Section
Frequency Range
Signal-to-Noise Ratio
Usable Sensitivity
Distortion
Selectivity

Video Section
Television Format
Input Level/Impedance
Output Level/Impedance

87.5 - 108.0M Hz

IHF 1.3 uV/13.2dBf
Mono/Stereo 70dB/68dB
Mono/Stereo 0.2%]0.3%
40dB @ 1kHZ

:400kHz, 70dB

80dB

90dB

520-1720kHz

45 dB

Loop 500 W

1kHz. 50% Mod 0.8%
:10kHz, 30dB

pal
1Vp-p/75 ohms
1Vp-p/75 ohms

Video Frequency

Response 10Hz-BM Hz (-3dB)
General

Power Requirement AC 230V/50Hz

Power Consumption W idle. W maximum

(2 channels driven)
Dimensions (M ax)

Width 17.3 inches (440mm)

Height 6.5 inches (165mm)

Depth 17.1 inches (435mm)
Weight 31Ib(14.1kg)

Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the Digital Revolution is a trademark,
of Harman International Industries, Inc.

lllllEZSfl' is a trademark of Harman International Industries. Inc. (Patent No. 5.386.478).

*Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic II, A03 and the Double-D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. ©1992-1999 Dolby Laboratories. Inc.Al| rights reserved.

DTS and DTS Surround are trademarks of Digital Theater Systems, Inc.
UitraStereo is a trademark of UitraStereo Corp.

VMAx is a registered trademark of Harman International Industries. Inc.. and is an
implementation of Cooper Eauck Transaural Stereo under patent license.

Logic 7 is a registered trademark of Lexicon. Inc.

Crystal is a registered trademark of Cirrus Logic Corp.

TECHNICAL SPECIFICATIONS
